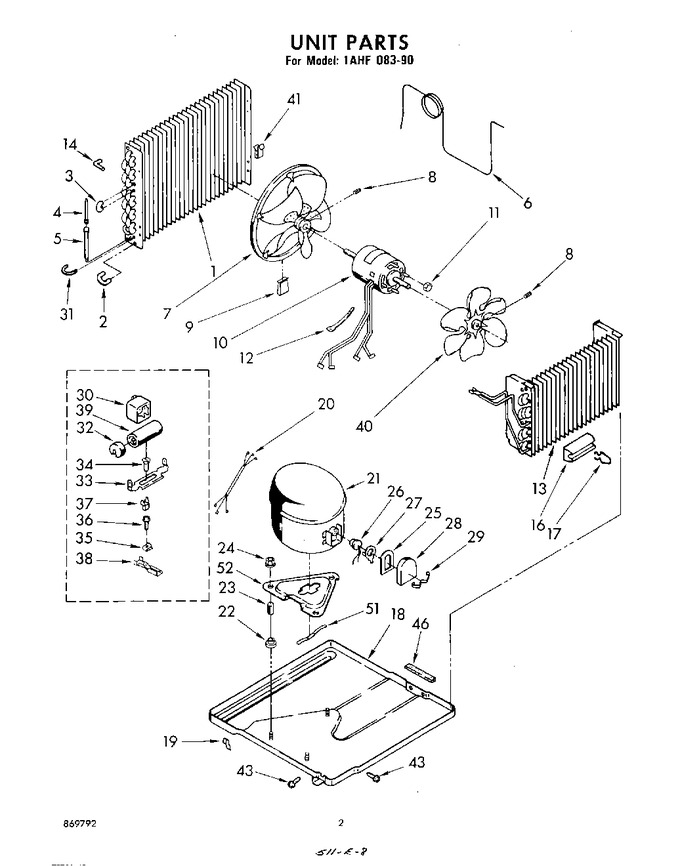

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	996159		Condenser		Appelez-nous	-
2	854624		Bend, Return (1) Condenser		Appelez-nous	-
3	855199		Bend, Return (1) Condenser		Appelez-nous	-
4	49599		Strainer		Appelez-nous	-
5	484230		Tube & Strainer		Appelez-nous	-
6	995299		Tube, Restrictor		Appelez-nous	-
7	997904		Blade, Condenser Fan		Appelez-nous	-
8	595085		Setscrew, 5/16 X 1/4		Appelez-nous	-
9	485334		Clip, Balancing		Appelez-nous	-
10	996164		Motor, Fan		Appelez-nous	-
11	WP488130		Nut, Hex (4)   (Replaces: 488130)				$ 7.32
12	WPW10339879		Tie, Cable   (Replaces: 857547)				$ 8.30
13	996161		Evaporator		Appelez-nous	-
14	858187		Tube, 90~ Bend		Appelez-nous	-
16	996773		Anticipator, Temperature		Appelez-nous	-
17	475577		Clip, Anticipator		Appelez-nous	-
18	856048		Base		Appelez-nous	-
19	855930		Clamp		Appelez-nous	-
20	484136		Harness, Wiring (compressor Service)		Appelez-nous	-
21	484058		Compressor		Appelez-nous	-
22	469581		Grommet (3)		Appelez-nous	-
23	858148		Sleeve (3)		Appelez-nous	-
24	858121		Locknut (3)		Appelez-nous	-
25	647154		Gasket, Terminal Cover		Appelez-nous	-
26	997970		Overload		Appelez-nous	-
27	994171		Spring, Overload		Appelez-nous	-
28	647152		Cover, Terminal		Appelez-nous	-
29	643299		Retainer, Terminal Cover		Appelez-nous	-
30	484177		Relay (component Of Start Kit)		Appelez-nous	-
31	855457		Bend Return (12)		Appelez-nous	-
32	791869		Cap, Capacitor (component Of Start Kit)		Appelez-nous	-
33	35564		Bracket, Capacitor (component Of Start Kit)				$ 262.34
34	487880		Screw, 10 X 5/8 (component Of Start Kit)		Appelez-nous	-
35	488660		Nut, Speed (component Of Start Kit)   (Replaces: 486197)		Appelez-nous	-
36	WP965173		Screw, 8 X 3/8 Component Of Start Kit)   (Replaces: 487869)			Immediately	$ 11.87
37	90654		Multiplier, Terminal (component Of Start Kit)		Appelez-nous	-
38	45571		Clip, Terminal (component Of Start Kit)		Appelez-nous	-
39	467614		Capacitor (component Of Start Kit)		Appelez-nous	-
40	998090		Blade, Fan (evaporator)		Appelez-nous	-
41	852451		Clamp		Appelez-nous	-
43	WP489069		Screw, 8 X 1/2   (Replaces: 488480)			Immediately	$ 8.40
43	WP308685		Screw, Repair   (Replaces: 488861)			Immediately	$ 7.87
46	WP854334		Seal, Base   (Replaces: 854028)				$ 13.94
51	643179		Spring, Compressor		Appelez-nous	-
52	869792		List, Parts		Appelez-nous	-
52	994740		Use & Care Guide		Appelez-nous	-
52	485882		Hard Start Kit		Appelez-nous	-
52	505168		Tape, No Drip		Appelez-nous	-
52	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
52	857557		Plate, Compressor		Appelez-nous	-
52	469938		Insulation, Fiberglass (1/4`` X 24`` X 48``)		Appelez-nous	-
52	649939		Insulation, Fiberglass (cabinet Only)		Appelez-nous	-
52	WP279368		Cement, Attach Insulation)   (Replaces: 797403)			Immediately	$ 116.46
52	485426		Lacquer, Starlight Gray (1/2 Pt. Uncut)		Appelez-nous	-
52	47261		Wire, Black (25 Ft.)		Appelez-nous	-
52	47262		Wire, Red, (25 Ft.)		Appelez-nous	-
52	47263		Wire, White (25 Ft.)		Appelez-nous	-
52	212643		Sealer, Gum Type   (Replaces: 470168)			Immediately	$ 96.42
52	799351		Blend, Thinner (1 Gal.)		Appelez-nous	-
52	10943		Oil, Turbine 1 Fl. Oz.		Appelez-nous	-
52	978026		Valve, Access (5/16``)			Immediately	$ 134.49
52	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 18.65
52	978028		Valve, Access (1/2)		Appelez-nous	-
52	978029		Valve Access (5/8``)				$ 93.85
52	978030		Valve, Acess (3/4``)				$ 137.25
52	484184		Cover, Winter				$ 64.85
52	994121		Electrical Requirement		Appelez-nous	-
52	484220		Start Assist Kit		Appelez-nous	-
