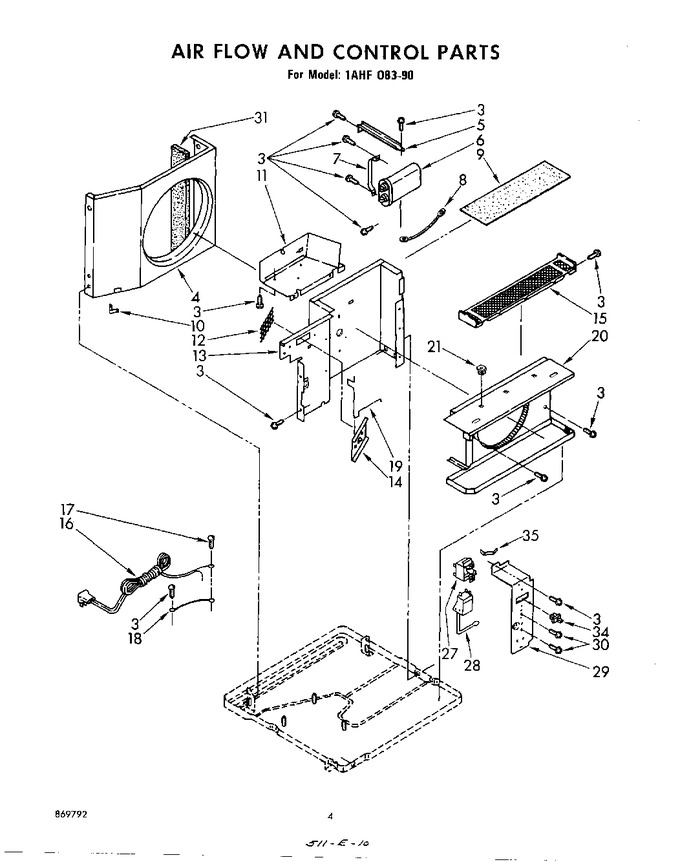

SELECT A DIAGRAM

01 - Section


02 - Section


03 - Section


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	WP489069		Screw, 8 X 1/2   (Replaces: 488480)			Immediately	$ 8.40
3	WP308685		Screw, Repair   (Replaces: 488861)			Immediately	$ 7.87
4	856037		Shroud, Condenser		Appelez-nous	-
5	858663		Support, Unit (2)		Appelez-nous	-
6	996165		Capacitor, Running		Appelez-nous	-
7	475844		Bracket, Capacitor		Appelez-nous	-
8	857568		Wire, Ground		Appelez-nous	-
9	948220		Insulation, Evaporator Cover		Appelez-nous	-
10	644401		Clip, Retainer		Appelez-nous	-
11	994560		Extension, Dividing Wall (requires Insulation Part No. 469938)		Appelez-nous	-
12	856929		Screen, Door		Appelez-nous	-
13	947867		Dividing Wall Assembly (requires Insulation Part No. 469938)		Appelez-nous	-
14	644206		Door, Exhaust		Appelez-nous	-
15	856912		Guard, Evaporator Impeller		Appelez-nous	-
16	859159		Cord, Power		Appelez-nous	-
17	WPW10141604		Screw, 8 X 3/8   (Replaces: 487871)				$ 8.85
18	856094		Wire, Ground		Appelez-nous	-
19	856042		Arm, Door		Appelez-nous	-
20	856039		Shroud, Evaporator		Appelez-nous	-
21	487808		Fastener, Snap		Appelez-nous	-
27	948315		Switch, Rotary		Appelez-nous	-
28	852543		Control, Temperature		Appelez-nous	-
29	996966		Panel, Control		Appelez-nous	-
30	488734		Screw, 6 X .175		Appelez-nous	-
31	WP854334		Seal, Condenser   (Replaces: 859600)				$ 13.94
34	947468		Actuator, Exhaust Door		Appelez-nous	-
35	858765		Spring, Retainer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
