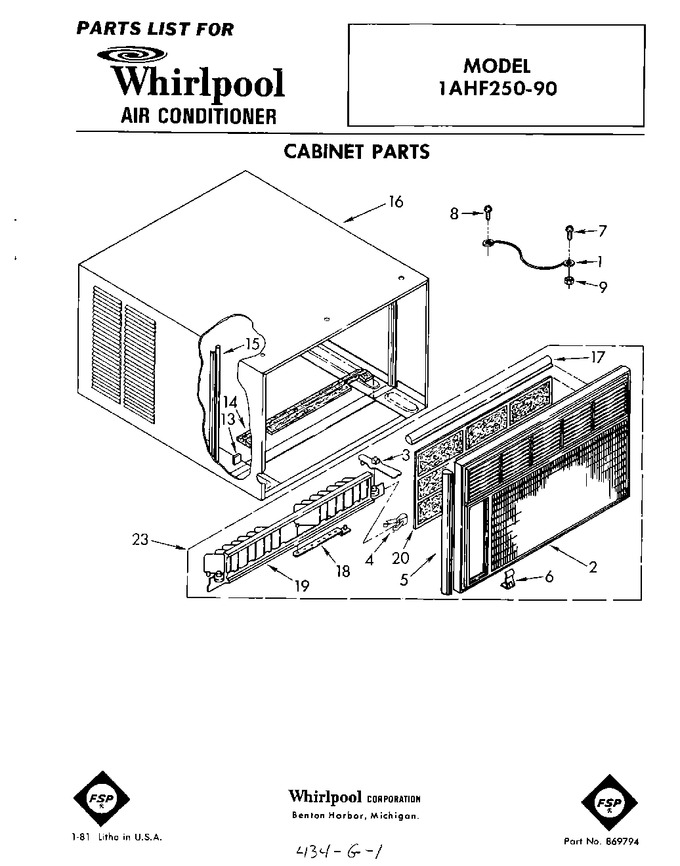

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	857078		Wire, Ground		Appelez-nous	-
2	947875		Cabinet, Front		Appelez-nous	-
3	644165		Handle, Vertical Louver (2)		Appelez-nous	-
4	641484		Spring, Detent (2)				$ 166.82
5	644168		Seal, Side (2)		Appelez-nous	-
6	644169		Clip, Front (4)		Appelez-nous	-
7	488853		Screw, 8 X 3/8		Appelez-nous	-
8	488854		Screw, 8 X 3/8		Appelez-nous	-
9	WP486255		Nut, Hex 8-32   (Replaces: 486529)				$ 6.47
13	WP854334		Spacer, Seal   (Replaces: 857471)				$ 13.94
14	857154		Seal, Bottom		Appelez-nous	-
15	476796		Seal, Side (2)		Appelez-nous	-
16	856602		Cabinet		Appelez-nous	-
17	644167		Seal, Top & Bottom (2)		Appelez-nous	-
18	644166		Link (2)		Appelez-nous	-
19	644156		Louver, Vertical		Appelez-nous	-
20	648475		Filter		Appelez-nous	-
23	947874		Front, Complete		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
