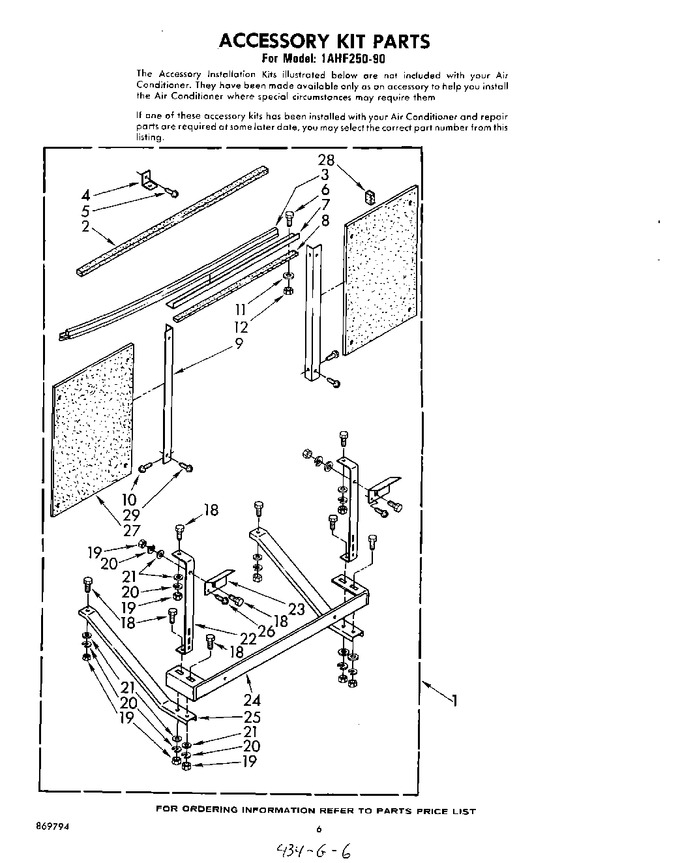

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	485451		Standard Installation Kit		Appelez-nous	-
2	469877		Seal		Appelez-nous	-
3	644288		Gasket, Sash		Appelez-nous	-
4	644228		Bracket		Appelez-nous	-
5	488255		Screw, 8 X 3/4 (wood)		Appelez-nous	-
6	487336		Bolt, 10 X 3/8		Appelez-nous	-
7	645514		Angle, Top		Appelez-nous	-
8	855265		Seal, Strip		Appelez-nous	-
9	644272		Angle (2)		Appelez-nous	-
10	488481		Screw, 10 X 3/8		Appelez-nous	-
11	486608		Washer (3)		Appelez-nous	-
12	487642		Nut, Hex		Appelez-nous	-
18	488750		Bolt, 1/4-20 X 3/4		Appelez-nous	-
19	486035		Nut, Hex (10)		Appelez-nous	-
20	486009		Lockwasher (10)		Appelez-nous	-
21	488808		Washer (10)		Appelez-nous	-
22	645517		Support, Extension (2)		Appelez-nous	-
23	645515		Bracket, Sill (2)		Appelez-nous	-
24	645516		Bracket, Support		Appelez-nous	-
25	645518		Support, Caninet (2)		Appelez-nous	-
26	487488		Wood Screw, 10 X 1		Appelez-nous	-
27	645513		Board, Filler		Appelez-nous	-
28	995274		Spacer, Block (4)		Appelez-nous	-
29	993383		Instructions, Installation (standard Kit)		Appelez-nous	-
29	WP965173		Screw, 8 X 3/8   (Replaces: 488017)			Immediately	$ 11.87
