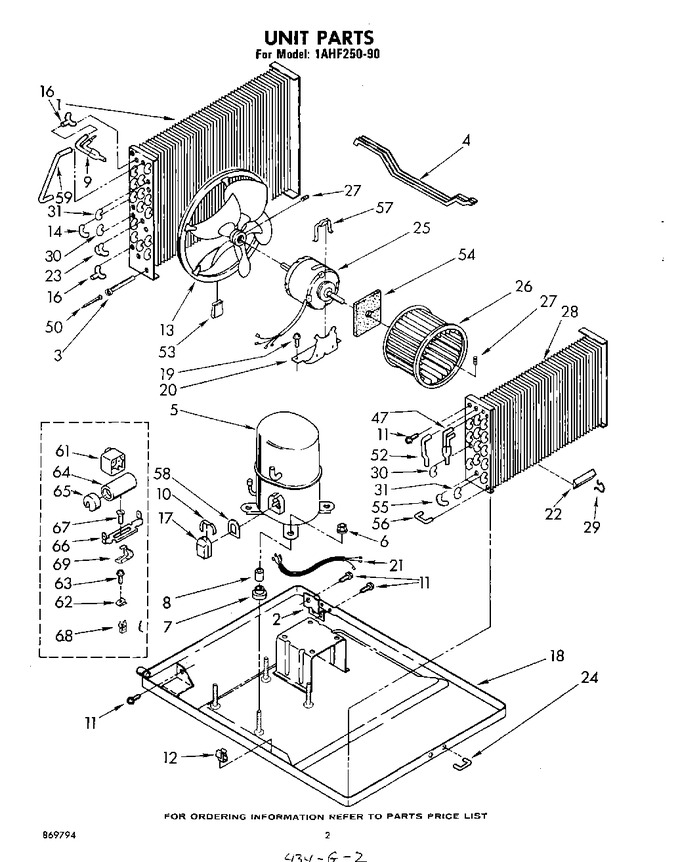

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 993318 | Condenser |
|
- | |||||
| 2 | 856028 | Support, Condenser (rs) |
|
- | |||||
| 3 | 484230 | Tube & Strainer (includes Illus. 50) |
|
- | |||||
| 4 | 996997 | Tube, Restrictor (3) |
|
- | |||||
| 5 | 484273 | Compressor |
|
- | |||||
| 6 | 858121 | Locknut (4) |
|
- | |||||
| 7 | 475041 | Grommet (4) |
|
- | |||||
| 8 | 858116 | Sleeve (4) |
|
- | |||||
| 9 | 485849 | Tube, Inlet Assembly |
|
- | |||||
| 10 | 475062 | Retainer |
|
- | |||||
| 11 | WP489069 | Screw (Replaces: 488480) |
|
Immediately | $ 8.40 | ||||
| 11 | 488481 | Screw, Repair |
|
- | |||||
| 12 | 642684 | Clamp (2) |
|
- | |||||
| 13 | 646247 | Blade |
|
- | |||||
| 14 | 855644 | Bend, Return |
|
- | |||||
| 16 | 476078 | Bend, 3-way Return (2) |
|
- | |||||
| 17 | 475061 | Cover, Terminal |
|
- | |||||
| 18 | 856498 | Base |
|
- | |||||
| 19 | 488311 | Screw, 1/4 X 5/8 |
|
- | |||||
| 20 | 471719 | Cradle, Motor (2) |
|
- | |||||
| 21 | 484136 | Harness, Wiring (compressor Service) |
|
- | |||||
| 22 | 472046 | Anticipator |
|
- | |||||
| 23 | 49493 | Bend |
|
- | |||||
| 24 | 00647971 | Handle, Base (Replaces: 647971) |
|
$ 143.42 | |||||
| 25 | 998964 | Fan Motor |
|
- | |||||
| 26 | 856953 | Wheel, Blower |
|
- | |||||
| 27 | 595085 | Screw, 5/16 X 1/4 |
|
- | |||||
| 28 | 855436 | Evaporator Assembly |
|
- | |||||
| 29 | 472047 | Clip (2) |
|
- | |||||
| 30 | 855199 | Bend (32) Condenser (30) Evaporator |
|
- | |||||
| 31 | 854624 | Bend (5) Condenser (1) Evaporator |
|
- | |||||
| 47 | 485826 | Outlet Tube Assembly |
|
- | |||||
| 50 | 49599 | Strainer |
|
- | |||||
| 52 | 485827 | Tube, Outlet (rear) |
|
- | |||||
| 53 | 485334 | Clip, Balancing |
|
- | |||||
| 54 | 476719 | Seal, Shaft |
|
- | |||||
| 55 | 854625 | Bend, Return |
|
- | |||||
| 56 | 854626 | Bend, Return |
|
- | |||||
| 57 | WPY015825 | Clip, Motor (2) (Replaces: 49633) |
|
$ 25.17 | |||||
| 58 | 475063 | Gasket, Term Cover |
|
- | |||||
| 59 | 644146 | Tube, Crossover |
|
- | |||||
| 61 | 484177 | Relay (component Of Start Kit) |
|
- | |||||
| 62 | 488660 | Nut, Speed (component Of Start Kit) (Replaces: 486197) |
|
- | |||||
| 63 | WP965173 | Screw, 8 X 3/8 Component Of Start Kit) (Replaces: 487869) |
|
Immediately | $ 11.87 | ||||
| 64 | 47406 | Capacitor (component Of Start Kit) |
|
- | |||||
| 65 | 791868 | Cap, Capacitor (component Of Start Kit) |
|
- | |||||
| 66 | 41629 | Bracket, Capacitor (component Of Start Kit) |
|
$ 0.81 | |||||
| 67 | 487880 | Screw, 10 X 5/8 (component Of Start Kit) |
|
- | |||||
| 68 | 90654 | Multiplier, Terminal (component Of Start Kit) |
|
- | |||||
| 69 | 869794 | List, Parts |
|
- | |||||
| 69 | 993377 | Instructions, Installation |
|
- | |||||
| 69 | 994202 | Electrical Requirement Sheet |
|
- | |||||
| 69 | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| 69 | 45571 | Terminal, Flag (component Of Start Kit) |
|
- | |||||
| 69 | 484310 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | |||||
| 69 | 505168 | No Drip Tape (for Sweating Tubes) |
|
- | |||||
| 69 | 469938 | Insulation, Fiberglass (1/4`` X 24`` X 48``) |
|
- | |||||
| 69 | WP279368 | Cement (1 Oz.) (Replaces: 797403) |
|
Immediately | $ 116.46 | ||||
| 69 | 47261 | Wire, Black (25 Ft.) |
|
- | |||||
| 69 | 47262 | Wire, Red, (25 Ft.) |
|
- | |||||
| 69 | 47263 | Wire, White (25 Ft.) |
|
- | |||||
| 69 | 485426 | Lacquer, Starlight Gray (1/2 Pt. Can) |
|
- | |||||
| 69 | 799351 | Blend, Thinner (1 Ga.) |
|
- | |||||
| 69 | 10943 | Oil, Turbine 1 Fl. Oz. |
|
- | |||||
| 69 | 212643 | Sealer, Gum (cabinet & Windows) (Replaces: 470168) |
|
Immediately | $ 96.42 | ||||
| 69 | 994741 | Use & Care Guide |
|
- | |||||
| 69 | 485883 | Kit, Compressor Start |
|
- | |||||
| 69 | 484066 | Cover, Winter |
|
$ 86.51 | |||||
| 69 | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 134.49 | ||||
| 69 | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 18.65 | |||||
| 69 | 978028 | Valve, Access (1/2) |
|
- | |||||
| 69 | 978029 | Valve Access (5/8``) |
|
$ 93.85 | |||||
| 69 | 978030 | Valve, Access (3/4``) |
|
$ 137.25 | |||||
| 69 | 484220 | Start Assist Kit |
|
- | |||||
| 69 | 649939 | Insulation, Cabinet (5/8`` X 13`` X 25-11/16``) |
|
- |
