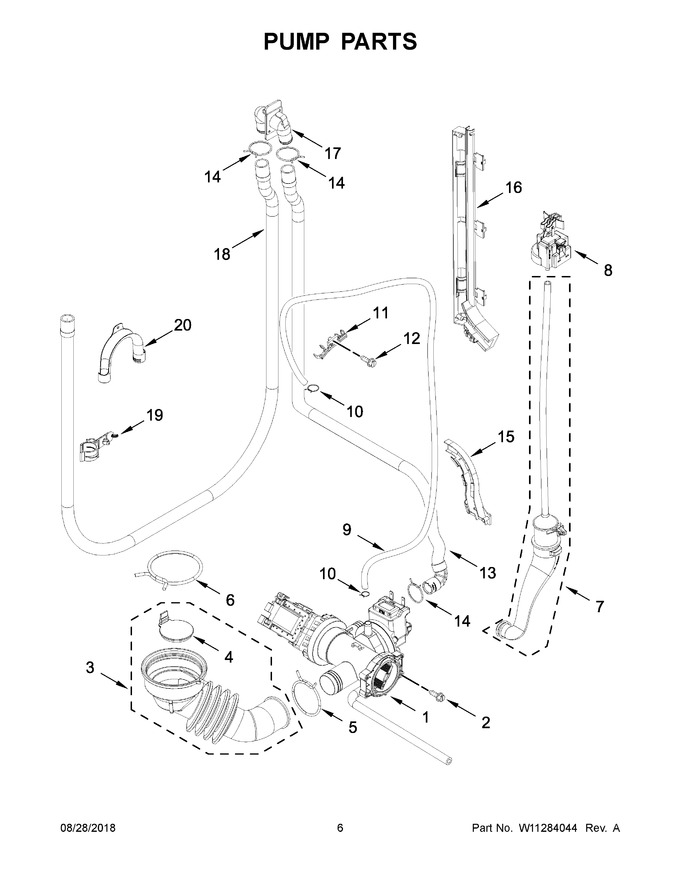

04 - Pump Parts


05 - Dispenser Parts


06 - Tub And Drive Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11266444		Assembly, Pump (drain - Recirculation)   (Replaces: W11256716)				$ 340.23
2	W10869499		Screw		Appelez-nous	-
3	W11261197		Hose, Tub - Pump   (Replaces: W11256717)				$ 30.47
4	W11256700		Flap, Eco		Appelez-nous	-
5	W11261199		Clamp (small)   (Replaces: W11256719)		Appelez-nous	-
6	W11261198		Clamp (large)   (Replaces: W11256718)		Appelez-nous	-
7	W11287192		Assembly, Air Dome (includes Pressure Hose)   (Replaces: W11286883)				$ 173.62
8	W11260743		Switch, Pressure   (Replaces: W11243709)				$ 183.95
9	W11261201		Hose, Recirculation   (Replaces: W11256720)		Appelez-nous	-
10	W11269310		Clamp   (Replaces: W11268748)		Appelez-nous	-
11	W11243681		Holder, Recirculation Hose		Appelez-nous	-
12	W11296992		Screw   (Replaces: W10869502)		Appelez-nous	-
13	W11261203		Assembly, Internal Drain Hose   (Replaces: W11256722)			Immediately	$ 30.17
14	W11301541		Clamp   (Replaces: W11299738)		Appelez-nous	-
15	W11256724		Holder, Internal Drain Hose (lower)		Appelez-nous	-
16	W11261205		Holder, Internal Drain Hose (upper)   (Replaces: W11256726)		Appelez-nous	-
17	W11256727		Coupler, Internal/outer Drain Hose				$ 67.13
18	W11256728		Hose, Outer Drain		Appelez-nous	-
19	W11256729		Post, Outer Drain Hose Support		Appelez-nous	-
20	W10887723		U-bend				$ 13.27
