01 - Cover Sheet
02 - Cabinet Parts
03 - Hmi And Door Parts
04 - Pump Parts
05 - Dispenser Parts
06 - Tub And Drive Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:

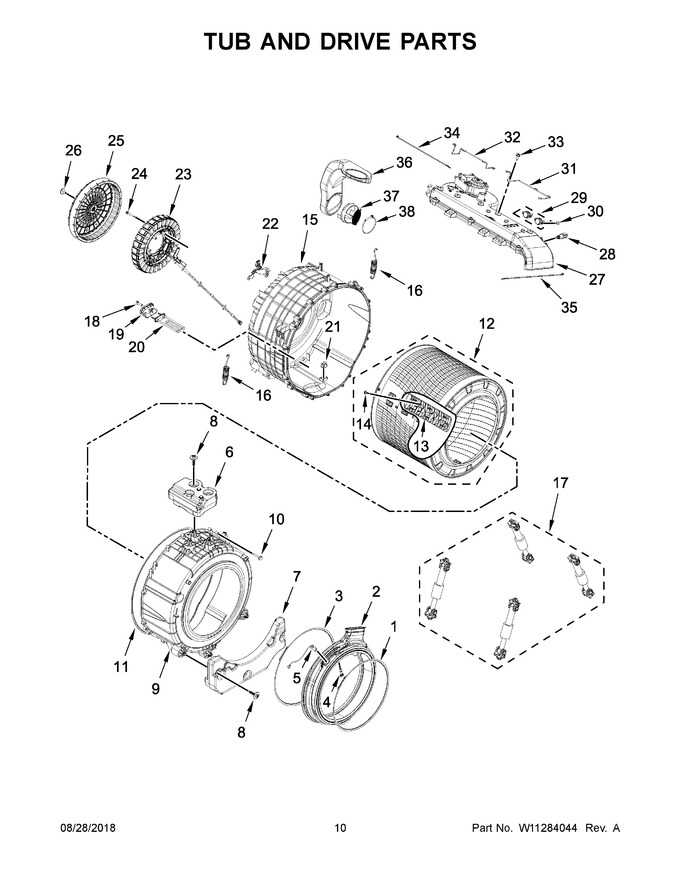

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11301548 | Retainer, Bellow (front Panel) (Replaces: W11299826) |
|
$ 60.41 | |||||
| 2 | W11261183 | Bellow (Replaces: W11256699) |
|
$ 337.51 | |||||
| 3 | W11261185 | Retainer, Bellow (tub) (Replaces: W11256704) |
|
- | |||||
| 4 | W11261184 | Nozzle, Recirculation (Replaces: W11256703) |
|
Immediately | $ 83.13 | ||||
| 5 | W11260740 | Drum Light (Replaces: W11243680) |
|
$ 112.27 | |||||
| 6 | W11261187 | Counterweight, Top (Replaces: W11256706) |
|
- | |||||
| 7 | W11261186 | Counterweight, Bottom (Replaces: W11256705) |
|
- | |||||
| 8 | W11261188 | Screw (Replaces: W11256707) |
|
- | |||||
| 9 | W11256702 | Tub (front) |
|
- | |||||
| 10 | W11301545 | Screw (Replaces: W11299769) |
|
- | |||||
| 11 | W11260767 | Seal, Tub (Replaces: W11256588) |
|
- | |||||
| 12 | W11256697 | Drum (complete) |
|
$ 317.63 | |||||
| 13 | W11256698 | Lifter |
|
- | |||||
| 14 | W11301540 | Screw (Replaces: W11300727) |
|
- | |||||
| 15 | W11279666 | Tub (rear) |
|
- | |||||
| 16 | W11261194 | Spring, Tub Suspension (includes Retainer Clips) (Replaces: W11256714) |
|
- | |||||
| 17 | W11287274 | Damper Assembly (set Of 4) (Replaces: W11256589) |
|
$ 202.29 | |||||
| 18 | W11260785 | Sensor, Ntc (Replaces: W11256690) |
|
Immediately | $ 81.22 | ||||
| 19 | W11256691 | Cover, Heater |
|
- | |||||
| 20 | W11260778 | Heating Element (Replaces: W11256590) |
|
Immediately | $ 284.17 | ||||
| 21 | W11256591 | Support, Heating Element |
|
- | |||||
| 22 | W11269311 | Holder, Inlet - Condenser Hose (Replaces: W11256711) |
|
- | |||||
| 23 | W11260794 | Assembly, Stator (Replaces: W11256695) |
|
$ 358.26 | |||||
| 24 | W11269126 | Bolt, Stator (Replaces: W11268645) |
|
- | |||||
| 25 | W11261916 | Assembly, Rotor (Replaces: W11256696) |
|
- | |||||
| 26 | W10655372 | Bolt, Rotor |
|
$ 7.54 | |||||
| 27 | W11256708 | Assembly, Dryer Channel |
|
$ 404.69 | |||||
| 28 | W11269200 | Sensor, Ntc (dryer Channel) (Replaces: W11268677) |
|
$ 84.71 | |||||
| 29 | W11269205 | Limiter, Thermal (set Of 2) (Replaces: W11268688) |
|
$ 121.02 | |||||
| 30 | W11301551 | Screw (Replaces: W11299828) |
|
- | |||||
| 31 | W11269203 | Guard, Harness (front) (Replaces: W11268685) |
|
- | |||||
| 32 | W11269202 | Guard, Harness (rear) (Replaces: W11268678) |
|
- | |||||
| 33 | W11176555 | Screw |
|
- | |||||
| 34 | WPW10144763 | Tie, Cable (Replaces: W10144763) |
|
$ 7.14 | |||||
| 35 | WPW10339879 | Tie, Cable (dryer Channel - Bellow) (Replaces: W10339879) |
|
$ 7.47 | |||||
| 36 | W11268742 | Condenser Channel |
|
$ 67.43 | |||||
| 37 | W11269307 | Screen, Lint (Replaces: W11268745) |
|
$ 89.29 | |||||
| 38 | W11269207 | Clamp, Tub - Condenser (Replaces: W11268744) |
|
$ 27.15 |
