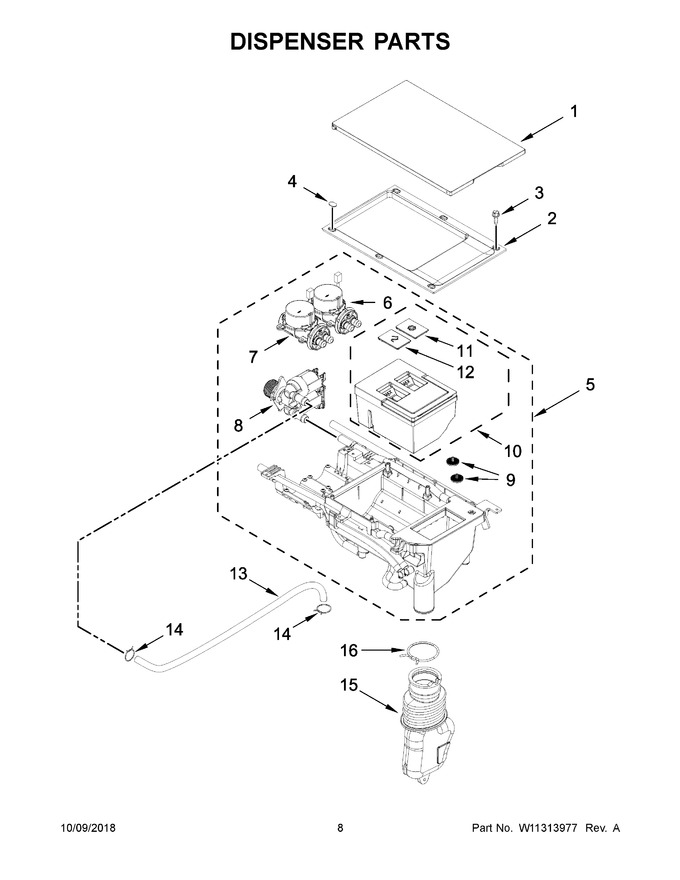

05 - Dispenser Parts
06 - Tub And Drive Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11260746 | Lid, Dispenser (Replaces: W11243721) |
|
$ 119.71 | |||||
| 2 | W11283710 | Bezel, Dispenser (Replaces: W11256744) |
|
$ 180.06 | |||||
| 3 | W10869499 | Screw |
|
- | |||||
| 4 | W11260748 | Cover, Screw (dispenser, Set Of 6) (Replaces: W11256746) |
|
- | |||||
| 5 | W11256731 | Assembly, Dispenser (complete) |
|
- | |||||
| 6 | W11280039 | Pump, Metering (softener) (Replaces: W11279752) |
|
$ 306.44 | |||||
| 7 | W11279750 | Pump, Metering (he Detergent) |
|
- | |||||
| 8 | W11256738 | Valve, Inlet |
|
- | |||||
| 9 | W11280036 | Filter (Replaces: W11279749) |
|
- | |||||
| 10 | W11256733 | Container |
|
- | |||||
| 11 | W11260774 | Lid, Softener (Replaces: W11256736) |
|
- | |||||
| 12 | W11256735 | Lid, He Detergent |
|
- | |||||
| 13 | W11269309 | Hose, Inlet - Condenser (Replaces: W11268747) |
|
$ 31.37 | |||||
| 14 | W11269310 | Clamp (Replaces: W11268748) |
|
- | |||||
| 15 | W11260756 | Hose, Dispenser - Tub (Replaces: W11256742) |
|
$ 31.26 | |||||
| 16 | W11260751 | Clamp (Replaces: W11256743) |
|
- |
