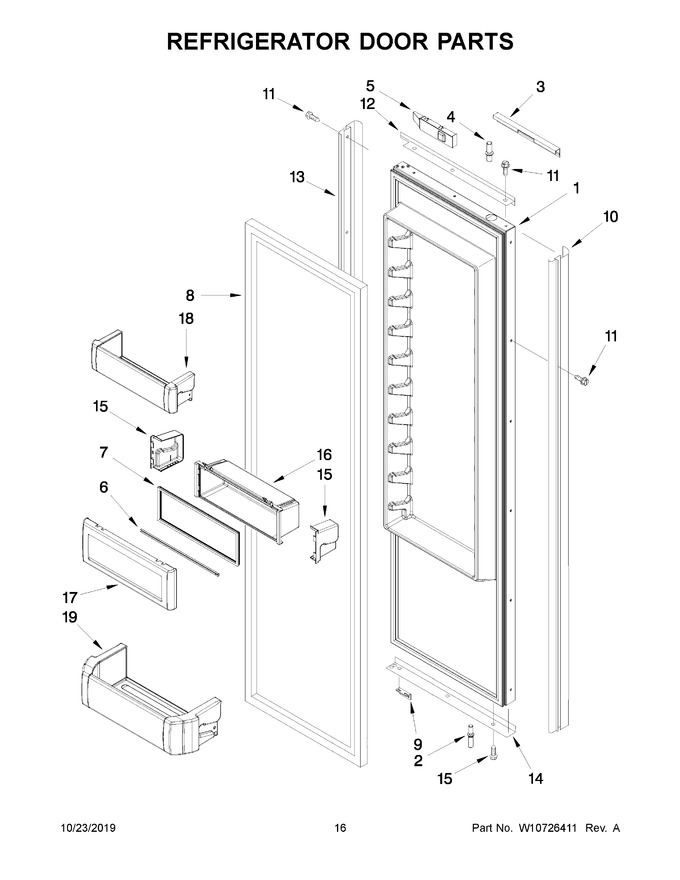

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10167383		Refrigerator Door		Appelez-nous	-
2	W11337869		Pin, Bottom Door   (Replaces: W10234206)				$ 64.91
3	W10199875		Cover, Top Door				$ 149.11
4	W10234194		Pin, Top Door				$ 17.66
5	W10197748		Insert, Door Arm (top)				$ 18.83
6	W11348580		Rail, Lid   (Replaces: 2222797)			Immediately	$ 181.10
7	W11348580		Gasket, Utility Bin   (Replaces: 2222983)			Immediately	$ 181.10
8	WP2266903		Gasket, Door   (Replaces: W10694212)			Immediately	$ 340.02
9	W10199955		Bracket, Panel Mounting				$ 93.88
10	W10167367		Trim, Door (handle Side)				$ 73.26
11	W10825422		Screw (white)   (Replaces: 8281251)				$ 11.36
12	W10182684		Trim, Top Door		Appelez-nous	-
13	W10182685		Trim, Door (hinge Side)		Appelez-nous	-
14	W10182691		Trim, Bottom Door		Appelez-nous	-
15	W10768112		End Cap (right Hand)				$ 45.57
16	W11348580		Bin, Utility Center   (Replaces: W10323037)			Immediately	$ 181.10
17	W11348580		Door, Utility Bin   (Replaces: 2257617)			Immediately	$ 181.10
18	W11752086		Bin, Shallow Door   (Replaces: W10323600)				$ 68.19
19	W10323748		Bin, Gallon Door				$ 121.78
15A	W10769395		End Cap (left Hand)				$ 39.22
5A	W10197766		Insert, Door Arm (bottom)				$ 17.26
