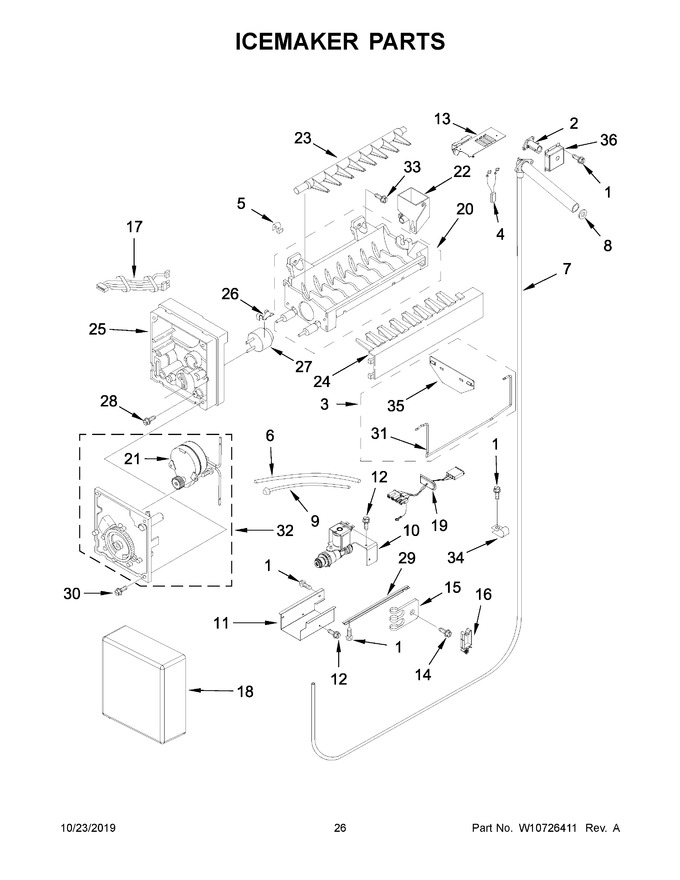

14 - Icemaker Parts


15 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11624204		Screw   (Replaces: 486194)				$ 13.25
2	WP2221240		Heater, Fill Tube   (Replaces: 2221240)				$ 185.92
3	W11807379		Assembly, Shut Off Arm   (Replaces: W11128135)			Immediately	$ 56.89
4	W10482373		Assembly, Fill Tube Heater Wire				$ 112.59
5	WP628379		Clip, Thermal Fuse   (Replaces: 628379)				$ 9.99
6	W11565275		Tube, Filter Inlet   (Replaces: W10296807)				$ 61.10
7	W11662302		Assembly, Water Inlet Tube   (Replaces: 2314049)		Appelez-nous	-
8	WP1106508		Gasket, Seal   (Replaces: 1106508)			Immediately	$ 9.39
9	W11533506		Tube, Filter Outlet   (Replaces: W10683737)				$ 29.84
10	WP2307650		Valve, Solenoid   (Replaces: 2307650)			Immediately	$ 228.29
11	W10129653		Shield, Valve Electrical		Appelez-nous	-
12	00487294		Screw   (Replaces: 487294)				$ 157.58
13	WP2221231		Shield, Heat   (Replaces: 2221231)				$ 80.40
14	WP489464		Screw   (Replaces: W10001250)			Immediately	$ 7.54
15	WP488366		Clip, Water Tube   (Replaces: 2208136)				$ 10.73
16	W10129069		Clip, Wire		Appelez-nous	-
17	W10508673		Assembly, Ice Maker Wire				$ 111.27
18	WPW10289690		Cover, Icemaker   (Replaces: W10289690)				$ 7.94
19	W10279393		Assembly, Water Valve Wire				$ 141.36
20	WPW10190929		Assembly, Mold And Heater (also Order 542638)   (Replaces: 628228)				$ 210.17
21	N/P		Motor (not Available, Order #32)		Appelez-nous	-
22	W11676540		Cup, Water Fill   (Replaces: W10435665)				$ 20.39
23	WP627843		Ejector   (Replaces: 627843)				$ 79.00
24	W10788834		Stripper, Ice   (Replaces: W10699925)				$ 76.72
25	W11236451		Support, Housing		Appelez-nous	-
26	WP2315522		Retainer, Thermostat   (Replaces: 2315522)				$ 10.44
27	WP627985		Thermostat   (Replaces: W10290336)				$ 103.18
28	W10001280		Screw		Appelez-nous	-
29	2320559		Support, Valve				$ 79.91
30	WP681249		Screw   (Replaces: 489276)			Immediately	$ 7.43
31	W11251736		Arm, Shut Off   (Replaces: W11173300)				$ 68.90
32	8201515		Assembly, Module And Motor   (Replaces: 626691)			Immediately	$ 143.80
33	WP488163		Screw   (Replaces: 488208)				$ 7.13
34	W10833902		Clamp, Tube   (Replaces: 2221070)				$ 10.39
35	W11215550		Extension, Shut Off Arm   (Replaces: W11112558)			Immediately	$ 48.65
36	W10176577		Cover, Fill Tube Heater		Appelez-nous	-
100	W11082613		Assembly, Icemaker   (Replaces: W10321136)				$ 247.44
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10489178		Template, Grill (wood Panel)				$ 39.65
NI	W10234156		Installation Block				$ 15.09
NI	W10355016		Cleaner, Stainless Steel		Appelez-nous	-
NI	W10355049		Wipes, Stainless Steel Cleaning				$ 7.91
NI	W11175806		Install Kit   (Replaces: W10553982)				$ 251.66
NI	W11682972		Template, Door (wood Panel)   (Replaces: W10488113)				$ 320.12
