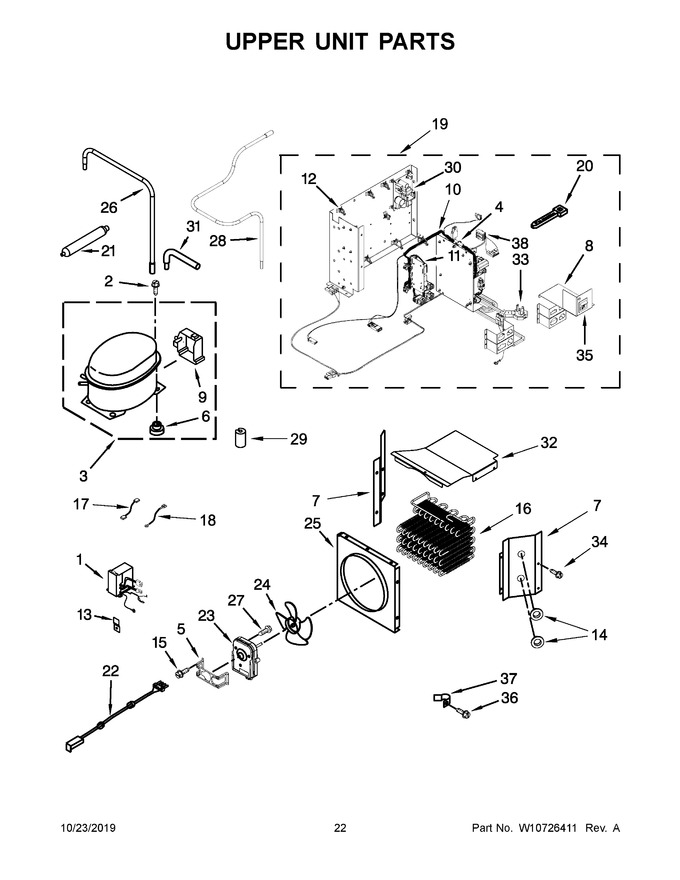

11 - Top Grille And Unit Cover Parts


12 - Upper Unit Parts


13 - Lower Unit And Tube Parts


14 - Icemaker Parts


15 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11573593		Assembly, Inverter Box   (Replaces: W10645666)				$ 247.47
2	876811		Screw   (Replaces: 489373)				$ 7.01
3	W10720770		Compressor   (Replaces: W10653005)				$ 812.96
4	WPW10200659		Control, Electronic   (Replaces: W10200659)			Immediately	$ 370.15
5	W10414681		Bracket, Fan Motor				$ 71.58
6	876811		Grommet   (Replaces: 1100826)				$ 7.01
7	WPW10525179		Support, Condenser (right Hand)   (Replaces: W10525179)				$ 99.79
8	W10209446		Bracket, Mounting (power Switch)		Appelez-nous	-
9	2215676		Cover, Terminal				$ 84.92
10	W10209462		Harness, Ac Unit   (Replaces: W10730719)		Appelez-nous	-
11	WPW10356040		Control, Electronic   (Replaces: W10356040)			Immediately	$ 290.54
12	WP2203075		Spacer   (Replaces: 2203075)			Immediately	$ 16.93
13	2256328		Bracket, Inverter Mounting		Appelez-nous	-
14	W10587113		Grommet		Appelez-nous	-
15	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 7.56
16	W10591457		Condenser				$ 223.70
17	WPW10483905		Jumper, Inverter   (Replaces: W10483905)				$ 107.51
18	WPW10495645		Ground, Inverter   (Replaces: W10495645)				$ 11.42
19	W10730692		Unit Assembly, Controls		Appelez-nous	-
20	WPW10339879		Tie, Wire   (Replaces: 2155774)				$ 7.47
21	WPW10143759		Drier   (Replaces: W10175593)			Immediately	$ 27.70
22	2310207		Assembly, Condenser Fan Wire		Appelez-nous	-
23	W11127829		Motor, Condenser Fan   (Replaces: W10909387)			Immediately	$ 203.92
24	WPW10139483		Blade, Fan   (Replaces: W10139483)				$ 89.84
25	W10415670		Orifice, Fan		Appelez-nous	-
26	W10624944		Tube, Drier Transition				$ 31.73
27	WP8533993		Screw   (Replaces: W10146359)				$ 10.09
28	W10648264		Tube, Heat Loop Transition				$ 69.40
29	W10852725		Grommet, Condenser   (Replaces: 2319835)				$ 7.28
30	WPW10184634		Control, Electronic   (Replaces: W10184634)				$ 390.86
31	W10528578		Tube, Process				$ 35.84
32	W10525175		Cover, Condenser Support				$ 65.14
33	2310196		Cord, Power			Immediately	$ 79.67
34	W11624204		Screw   (Replaces: 486194)				$ 13.25
35	WP2266802		Switch, Power Disconnect   (Replaces: 2266802)				$ 98.17
36	00487294		Screw   (Replaces: 487294)				$ 157.58
37	549193		Clamp, Power Cord				$ 12.65
38	W10209460		Harness, Dc Unit   (Replaces: W10730720)		Appelez-nous	-
7A	WPW10525177		Support, Condenser (left Hand)   (Replaces: W10525177)				$ 99.79
NI	SF5538		Valve, Access (3/8")   (Replaces: 978027)				$ 16.79
NI	978026		Valve, Access (5/16")			Immediately	$ 121.04
NI	WP978025		Valve, Access (1/4")   (Replaces: 978025)			Immediately	$ 99.46
NI	N/P		Refrigerant Charge 5.50 Oz. (r-134a)		Appelez-nous	-
NI	876764		Valve, Access (3/16")			Immediately	$ 86.33
NI	978029		Valve, Access (5/8")				$ 93.85
NI	978030		Valve, Access (3/4")				$ 123.53
