SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Liner


03 - Freezer Door


04 - Shelf


05 - Refrigerator Door


06 - Unit


07 - Compartment Separator, Optional

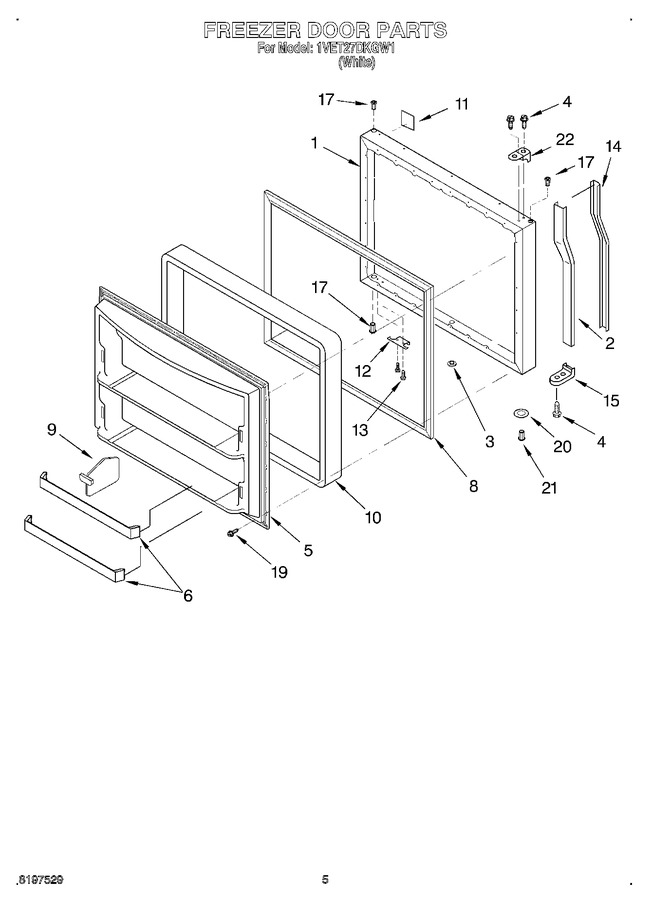

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8170620		Freezer Door Panel (includes Insulation)		Appelez-nous	-
2	2188130W		Retainer, Insert		Appelez-nous	-
3	4344227		Plug, Button		Appelez-nous	-
4	4344588		Screw		Appelez-nous	-
5	8170442		Interior Panel		Appelez-nous	-
6	8170307		Trivet, Door		Appelez-nous	-
8	8170677		Door Gasket, Magnetic		Appelez-nous	-
9	4344300		Divider, Door Shelf		Appelez-nous	-
10	4344524		Insulation		Appelez-nous	-
11	2175380		Nameplate		Appelez-nous	-
12	12968202W		Door, Stop   (Replaces: 4344463)				$ 69.29
13	WPW10348409		Screw   (Replaces: 4344333)			Immediately	$ 8.20
14	2188133		Insert		Appelez-nous	-
15	2195995W		Endcap				$ 10.04
17	4344362		Bushing		Appelez-nous	-
19	4343811		Screw		Appelez-nous	-
20	4344544		Filter		Appelez-nous	-
21	4344543		Bushing		Appelez-nous	-
22	2195994W		Endcap				$ 17.06

    View Diagram in Separate Window       Print Part List
