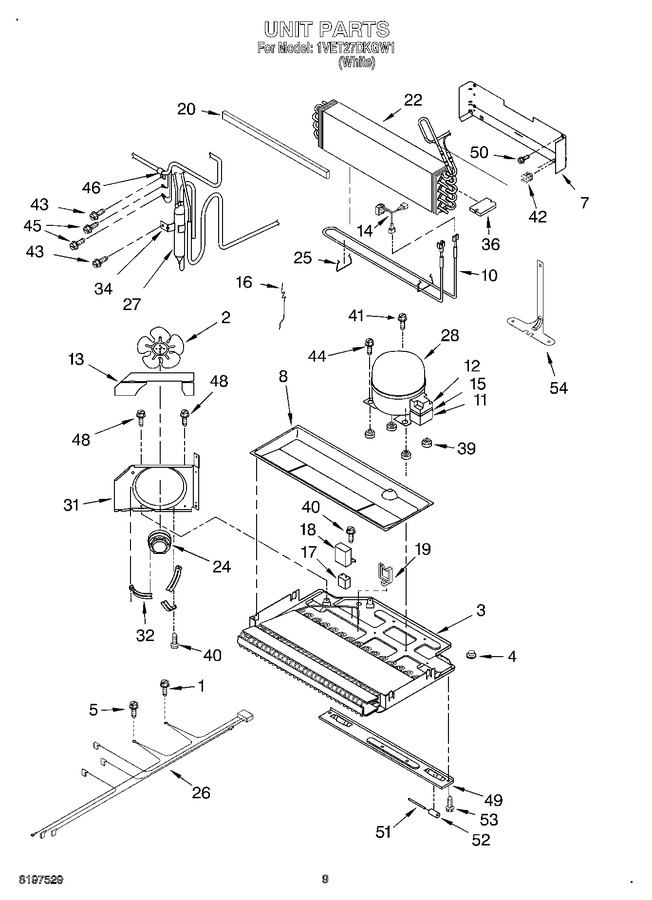

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12992301 | Screw (Replaces: 4343865) |
|
$ 7.32 | |||||
| 2 | 4344271 | Fan, Blade |
|
- | |||||
| 3 | 8170610 | Condenser & Pan Assembly |
|
- | |||||
| 4 | 4344287 | Plug, Button |
|
- | |||||
| 5 | WP489399 | Screw (Replaces: 4343691) |
|
$ 7.30 | |||||
| 7 | 4344486 | Heat Shield |
|
- | |||||
| 8 | 4344510 | Drain Pan |
|
- | |||||
| 10 | 8170433 | Evaporator Heater |
|
- | |||||
| 11 | 4343852 | Cover |
|
- | |||||
| 12 | 4343849 | Overload |
|
- | |||||
| 13 | 4344275 | Gasket |
|
- | |||||
| 14 | 8170432 | Bi-metal |
|
- | |||||
| 15 | WP10097202 | Relay (Replaces: 4343850) |
|
$ 124.93 | |||||
| 16 | 4344497 | Clip, Heat |
|
- | |||||
| 17 | WP65889-4 | Capacitor (Replaces: 8170450) |
|
Immediately | $ 69.00 | ||||
| 18 | 4344277 | Shield, Capacitor |
|
- | |||||
| 19 | 4343969 | Clip, Wire |
|
- | |||||
| 20 | 4344495 | Gasket |
|
- | |||||
| 22 | 4344418 | Evaporator |
|
- | |||||
| 24 | 4344419 | Motor, Fan |
|
- | |||||
| 25 | W11673433 | Clip, Heater (Replaces: 4343918) |
|
$ 148.18 | |||||
| 26 | 8170611 | Harness, Unit |
|
- | |||||
| 27 | W10843121 | Drier (Replaces: 4344268) |
|
Immediately | $ 57.13 | ||||
| 28 | W10309994 | Compressor (includes Items 11, 12, 15, 17 & 27) (Replaces: 8170362) |
|
Immediately | $ 643.55 | ||||
| 31 | 4344554 | Shroud |
|
- | |||||
| 32 | 4344272 | Bracket, Fan Motor |
|
- | |||||
| 34 | 4343763 | Clip, Drier |
|
- | |||||
| 36 | 4344500 | Block, Evaporator (right Side) |
|
- | |||||
| 36 | 4344482 | Block, Evaporator (left Side) |
|
- | |||||
| 39 | 4343845 | Grommet (4) |
|
- | |||||
| 40 | 4344562 | Screw |
|
- | |||||
| 41 | 4344511 | Screw (2) |
|
- | |||||
| 42 | 4344487 | Clip, Evaporator |
|
- | |||||
| 43 | WP489069 | Screw (Replaces: 4343772) |
|
Immediately | $ 8.40 | ||||
| 44 | 4343847 | Screw (2) |
|
- | |||||
| 45 | 67006425 | Screw (Replaces: 4344545) |
|
Immediately | $ 7.30 | ||||
| 46 | 4343661 | Clamp |
|
- | |||||
| 48 | 4343749 | Screw |
|
- | |||||
| 49 | 4344518 | Cabinet, Brace |
|
- | |||||
| 50 | 67006425 | Screw (Replaces: 4344396) |
|
Immediately | $ 7.30 | ||||
| 51 | 4344289 | Axle-roller |
|
- | |||||
| 52 | 4344288 | Roller-rear |
|
- | |||||
| 53 | 4344292 | Screw |
|
- | |||||
| 54 | 876764 | Valve, Access(3/16``) |
|
Immediately | $ 95.92 | ||||
| 54 | 978030 | Valve, Access (3/4``) |
|
$ 137.25 | |||||
| 54 | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| 54 | 4344512 | Brace |
|
- | |||||
| 54 | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 134.49 | ||||
| 54 | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 18.65 | |||||
| 54 | 978028 | Valve, Access (1/2) |
|
- | |||||
| 54 | 978029 | Valve Access (5/8``) |
|
$ 93.85 |
