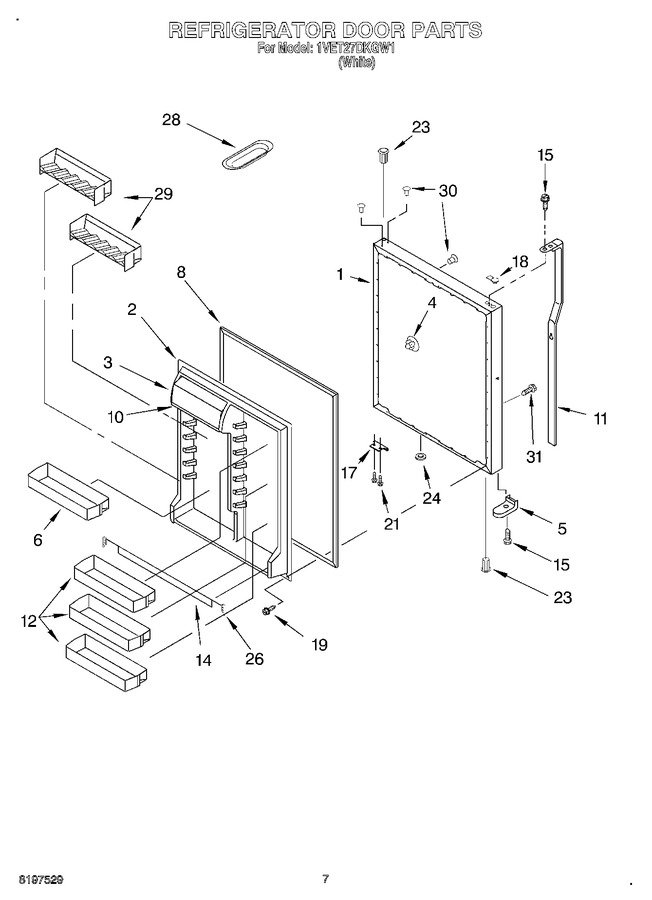

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8170616 | Refrigerator Door Panel (includes Insulation) |
|
- | |||||
| 2 | 4344531 | Interior Panel |
|
- | |||||
| 3 | 4344369 | Door, Compartment |
|
- | |||||
| 4 | WP2189000 | Hole Plug (Replaces: 2189000) |
|
Immediately | $ 7.77 | ||||
| 5 | 4344589 | End Cap |
|
- | |||||
| 6 | 4344532 | Shelf Bin (1) |
|
- | |||||
| 8 | 8170643 | Door Gasket, Magnetic |
|
- | |||||
| 10 | 4344370 | Gasket |
|
- | |||||
| 11 | 8170628 | Handle |
|
- | |||||
| 12 | 8170300 | Shelf Bin (3) |
|
- | |||||
| 14 | 4344536 | Trim, Door |
|
- | |||||
| 15 | 4344588 | Screw |
|
- | |||||
| 17 | 12968202W | Stop, Door (Replaces: 4344463) |
|
$ 69.29 | |||||
| 18 | 4344434 | Plug, Button |
|
- | |||||
| 19 | 4343811 | Screw |
|
- | |||||
| 21 | WPW10348409 | Screw (Replaces: 4344333) |
|
Immediately | $ 8.20 | ||||
| 23 | 4344362 | Bushing |
|
- | |||||
| 24 | 4344227 | Plug, Button |
|
- | |||||
| 26 | 4344346 | Plug-trim |
|
- | |||||
| 28 | 4344296 | Butter Dish |
|
- | |||||
| 29 | 4344374 | Holder, Beverage |
|
- | |||||
| 30 | WP67001130 | Plug, Button (Replaces: 4344535) |
|
Immediately | $ 8.21 | ||||
| 31 | 8170313 | Screw |
|
- |
