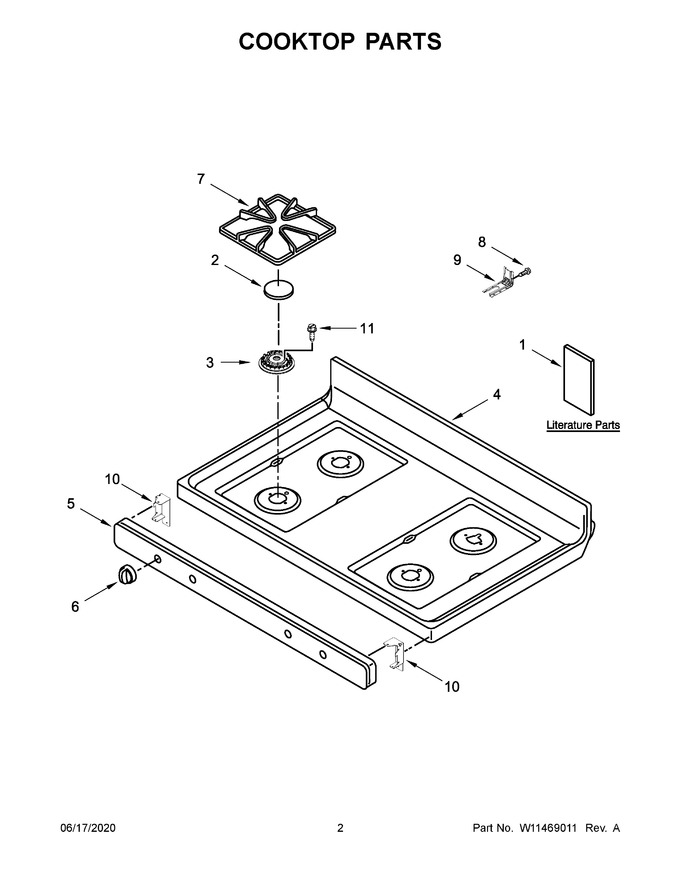

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11404103		Installation Instructions		Appelez-nous	-
2	W11455147		Set, Burner Cap (black (set Of 4))   (Replaces: W11395131)			Immediately	$ 89.76
3	W11435630		Spreader, Flame (left Front, Right Front)   (Replaces: W11352018)			Immediately	$ 73.91
4	W11475519		Cooktop (black)   (Replaces: W11418038)		Appelez-nous	-
5	8523855		Panel, Manifold (black)				$ 158.56
6	W11164105		Knob, Control (stainless)   (Replaces: W10844796)			Immediately	$ 72.40
7	W10915784		Grate Kit (black (set Of 4))   (Replaces: W10682667)				$ 326.83
8	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 27.65
9	W11839019		Anti-tip Bracket   (Replaces: W11379945)			Immediately	$ 25.69
10	8523249		Bracket, Manifold		Appelez-nous	-
11	W11241230		Screw   (Replaces: W10673618)			Immediately	$ 13.26
1A	W11404080		Use & Care Guide		Appelez-nous	-
1B	W10873899		Tech Sheet		Appelez-nous	-
1C	W10873901		Wiring Diagram		Appelez-nous	-
3A	W11435659		Spreader, Flame (left Rear)   (Replaces: W11352020)				$ 76.37
3B	W11435657		Spreader, Flame (right Rear)   (Replaces: W11352021)				$ 75.99
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10842520		Harness, Main		Appelez-nous	-
NI	W11161843		Harness, Bake/broil   (Replaces: W10753750)				$ 194.90
NI	3196896		Clip, Wire		Appelez-nous	-
NI	3400964		Clip, Wire   (Replaces: 3196520)				$ 80.10
NI	W10334923		Clip, Gas Wiring		Appelez-nous	-
NI	16515		Clip, Harness   (Replaces: 313438)				$ 18.48
NI	W11244557		Screw (grounding)   (Replaces: 3196173)				$ 12.86
NI	W10841090		Clamp, Wire   (Replaces: 7111P017-60)		Appelez-nous	-
