SELECT A DIAGRAM
New Model Search:

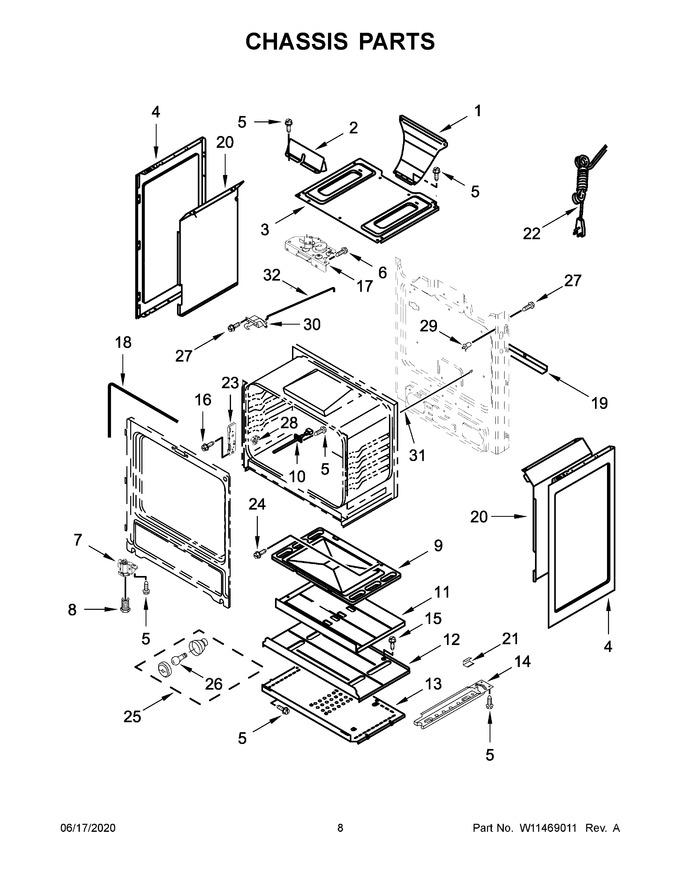

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11457094 | Box, Flue (Replaces: W10153186) |
|
$ 142.02 | |||||
| 2 | WP8272747 | Shield, Flue (Replaces: 8272747) |
|
$ 67.06 | |||||
| 3 | W11379351 | Box-burner, Gas Sealed |
|
$ 57.77 | |||||
| 4 | W11730303 | Panel, Side (black) (Replaces: W10162245) |
|
Immediately | $ 160.65 | ||||
| 5 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 6 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 7 | WPW10341186 | Front Foot Assembly (Replaces: W10341186) |
|
Immediately | $ 29.33 | ||||
| 8 | WPW10058460 | Foot, Leveling (Replaces: W10058460) |
|
Immediately | $ 7.42 | ||||
| 9 | W11730226 | Bottom, Oven (Replaces: 3195097) |
|
$ 207.95 | |||||
| 10 | W10833885 | Sensor (Replaces: W10586204) |
|
Immediately | $ 143.70 | ||||
| 11 | 8053967 | Baffle, Burner Oven |
|
$ 284.36 | |||||
| 12 | 8053969 | Shield, Heat |
|
$ 101.74 | |||||
| 13 | 8053968 | Shield, Lower |
|
- | |||||
| 14 | W11818353 | Base Rail Assembly (left) (Replaces: W10390008) |
|
$ 56.39 | |||||
| 15 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 13.25 | ||||
| 16 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.43 | ||||
| 17 | WPW10107820 | Rear Door Latch Assembly (Replaces: W10107820) |
|
$ 278.60 | |||||
| 18 | W11542153 | Seal, Door (Replaces: W10658354) |
|
Immediately | $ 45.18 | ||||
| 19 | W10435470 | Brace, Main Back |
|
$ 73.57 | |||||
| 20 | W11379353 | Retainer, Insulation (left) |
|
- | |||||
| 21 | W10137382 | Clip, Panel |
|
Immediately | $ 43.58 | ||||
| 22 | W11582239 | Cord, Power (Replaces: W10624590) |
|
$ 15.83 | |||||
| 23 | W10647259 | Receiver, Hinge (Replaces: W10289077) |
|
Immediately | $ 8.39 | ||||
| 24 | W10379120 | Screw |
|
- | |||||
| 25 | W11594027 | Light Assembly (Replaces: W11175594) |
|
Immediately | $ 78.31 | ||||
| 26 | WPW10571723 | Bulb, Halogen 40 Watts (Replaces: W10571723) |
|
Immediately | $ 24.94 | ||||
| 27 | W11169708 | Screw (Replaces: 3196560) |
|
$ 13.36 | |||||
| 28 | W10807823 | Glide, Drawer Front (Replaces: W10674705) |
|
Immediately | $ 17.37 | ||||
| 29 | WP9757262 | Switch, Door (Replaces: W10627802) |
|
Immediately | $ 146.71 | ||||
| 30 | WP9761013 | Front Door Latch Assembly (Replaces: 9761013) |
|
$ 230.72 | |||||
| 31 | W11370462 | Rod, Door Switch |
|
$ 60.87 | |||||
| 32 | W10078370 | Rod, Push Latch |
|
$ 85.72 | |||||
| 14A | W11818353 | Base Rail Assembly (right) (Replaces: W10390007) |
|
$ 56.39 | |||||
| 20A | W11379943 | Retainer, Insulation (right) |
|
- | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11688737 | Insulation, Back (Replaces: W10180437) |
|
$ 110.46 | |||||
| NI | W11684915 | Insulation, Wrap (Replaces: 8524099) |
|
$ 111.28 |
