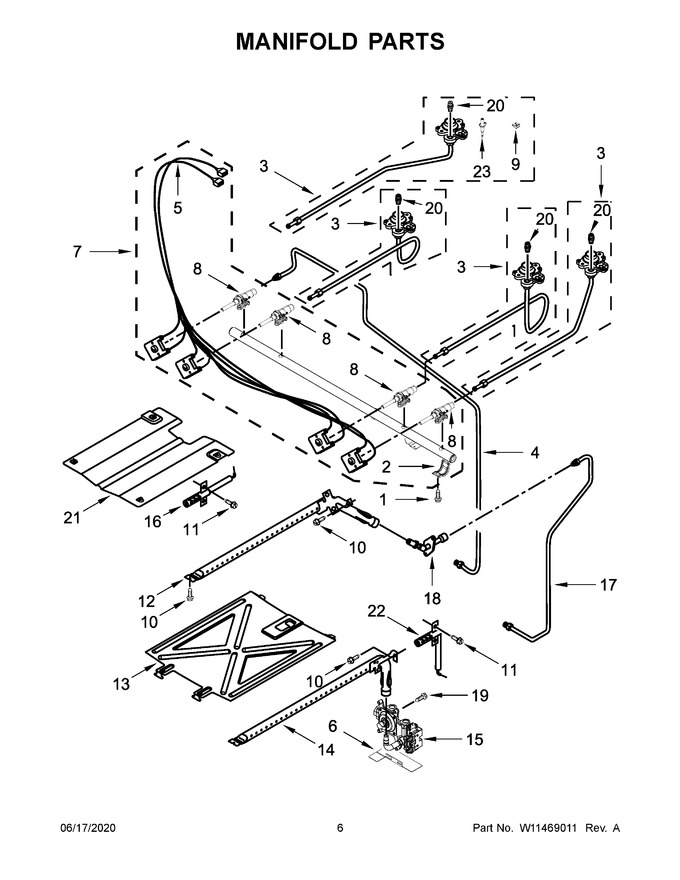

04 - Manifold Parts


05 - Chassis Parts


06 - Door Parts


07 - Drawer And Broiler Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10295997		Screw, Valve				$ 6.59
2	W10949105		Bracket, Saddle Valve   (Replaces: W10295996)				$ 20.48
3	W11367452		Orifice Holder Assembly (left Front)		Appelez-nous	-
4	W11680399		Tubing (manifold To Regulator)   (Replaces: W10215439)				$ 143.42
5	W11256561		Harness, Switch   (Replaces: W10812380)				$ 171.27
6	W10224921		Bracket, Aegis		Appelez-nous	-
7	W11347743		Manifold Assembly		Appelez-nous	-
8	W11628784		Valve, Gas (left Front, Right Front)   (Replaces: W11352012)				$ 72.40
9	W11684564		Clip, Electrode Spring   (Replaces: W10827923)			Immediately	$ 11.39
10	3196265		Screw		Appelez-nous	-
11	W11684507		Screw   (Replaces: 3196385)				$ 12.84
12	WP8054078		Burner, Broiler   (Replaces: 8054078)			Immediately	$ 215.42
13	WPW10184491		Spreader, Flame (oven)   (Replaces: W10184491)				$ 228.17
14	WP9758078		Burner, Bake   (Replaces: 9758078)				$ 203.46
15	W11449506		Regulator   (Replaces: W11370883)				$ 224.75
16	WPW10333842		Electrode, Broil   (Replaces: W10333842)			Immediately	$ 93.71
17	W10420040		Tube, Broiler Supply				$ 175.09
18	W11435700		Fitting, Broiler				$ 80.18
19	WP3400016		Screw   (Replaces: 3400016)				$ 7.55
20	W11428753		Orifice (15k) (left Front, Right Front)			Immediately	$ 74.94
21	W10137062		Spreader, Flame (broiler )		Appelez-nous	-
22	WP9758079		Electrode, Bake   (Replaces: 9758079)			Immediately	$ 43.26
23	W11453940		Electrode (left Front, Left Rear)   (Replaces: W11428831)				$ 58.01
20A	W10849720		Orifice (10k) (left Rear)				$ 74.21
20B	W11677633		Orifice (5k) (right Rear)   (Replaces: W10849719)				$ 89.24
23A	W11453920		Electrode (right Front, Right Rear)   (Replaces: W11428858)				$ 57.92
3A	W11367453		Orifice Holder Assembly (left Rear)		Appelez-nous	-
3B	W11367455		Orifice Holder Assembly (right Front)		Appelez-nous	-
3C	W11367454		Orifice Holder Assembly (right Rear)		Appelez-nous	-
8A	W11699929		Valve, Gas (left Rear)   (Replaces: W11352013)				$ 63.42
8B	W11352015		Valve, Gas (right Rear)				$ 101.74
NI	W10758273		Orifice, Lp Broil   (Replaces: W10465080)				$ 7.68
NI	W11475512		Lp Conversion Kit   (Replaces: W11414603)				$ 79.25
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	WPW10170534		Kit, Lp Conversion   (Replaces: W10170534)				$ 99.80
NI	W11126051		Lp Bake And Broil Kit   (Replaces: W10566537)				$ 116.14
NI	WPW10400495		Orifice, Lp Bake   (Replaces: W10400495)				$ 84.89
