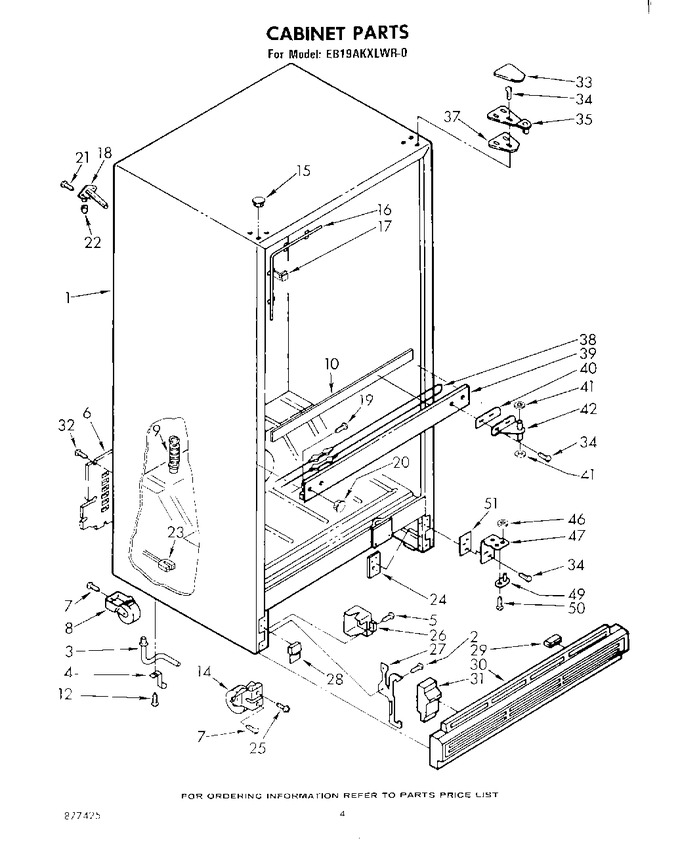

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
3	841646		Extension, Drain Fitting		Appelez-nous	-
4	841648		Clip, Drain Extension		Appelez-nous	-
5	WP488729		Screw, 8 X 1/2   (Replaces: 486993)			Immediately	$ 8.28
6	850459		Cover, Unit Compartment		Appelez-nous	-
7	488454		Screw, 1/4-28 X 1/2 (4)		Appelez-nous	-
8	WPW10250570		Roller (2)   (Replaces: 981122)				$ 42.18
9	839861		Drain Fitting		Appelez-nous	-
10	987506		Seal Strip		Appelez-nous	-
12	489050		Screw, 8-32 X 1/2				$ 692.56
14	981127		Roller, Front (2)		Appelez-nous	-
15	989877		Plug, Hole (3) (new Avocado)		Appelez-nous	-
15	989195		Plug, Hole (3) (almond)		Appelez-nous	-
15	989876		Plug, Hole (3) (golden Harvest)		Appelez-nous	-
15	842031		Plug, Hole (3) (white)		Appelez-nous	-
15	989875		Plug, Hole (3) (coffee)		Appelez-nous	-
16	936075		Heater, Stile		Appelez-nous	-
17	935663		Clip, Heater (2)		Appelez-nous	-
18	WP2196157		Fitting, Water Tube   (Replaces: 836489)			Immediately	$ 12.59
19	WP965173		Screw, 8 X 3/8 (4)   (Replaces: 487869)			Immediately	$ 11.87
19	487470		Screw (repair) (4)		Appelez-nous	-
20	989882		Plug, Hole (2) (golden Harvest)		Appelez-nous	-
20	835974		Plug, Hole (2) (white)		Appelez-nous	-
20	989881		Plug, Hole (2) (coffee)		Appelez-nous	-
20	989883		Plug, Hole (2) (new Avocado)		Appelez-nous	-
20	989193		Plug, Hole (2) (almond)		Appelez-nous	-
21	WP98165		Screw, 8 X 5/8 (2)   (Replaces: 488401)				$ 8.57
22	WP487996		Cap, Plastic   (Replaces: 487996)				$ 8.67
23	548734		Wire Assembly (water Valve)		Appelez-nous	-
24	836162		Tap Plate, Hinge		Appelez-nous	-
25	488681		Screw, 5/16-24 X 1-1/4		Appelez-nous	-
26	549947		Box, Junction		Appelez-nous	-
27	844614		Support, Grille (2)		Appelez-nous	-
28	989931		Filler, Corner (almond)		Appelez-nous	-
28	838535		Filler, Corner (white)		Appelez-nous	-
28	989928		Filler, Corner (coffee)		Appelez-nous	-
28	989930		Filler, Corner (new Avocado)		Appelez-nous	-
28	989929		Filler, Corner (golden Harvest)		Appelez-nous	-
29	546131		Bumper, Grille (2)		Appelez-nous	-
30	989945		Grille (golden Harvest)		Appelez-nous	-
30	989947		Grille (almond)		Appelez-nous	-
30	841670		Grille (white)		Appelez-nous	-
30	989941		Grille (coffee)		Appelez-nous	-
30	989943		Grille (new Avocado)		Appelez-nous	-
31	836372		Insert, Air Baffle Grille		Appelez-nous	-
32	WPW10141645		Screw, 8 X 1/2   (Replaces: 489084)				$ 8.05
33	989194		Cover, Hinge (almond)		Appelez-nous	-
33	842010		Cover, Hinge (white)		Appelez-nous	-
33	989895		Cover, Hinge (coffee)		Appelez-nous	-
33	989897		Cover, Hinge (new Avocado)		Appelez-nous	-
33	989896		Cover, Hinge (golden Harvest)		Appelez-nous	-
34	WP999367		Screw, 10-32 X 3/4   (Replaces: 488948)				$ 8.56
34	488949		Screw, 12-14 X 3/4 (repair)		Appelez-nous	-
35	842039		Hinge, Top		Appelez-nous	-
37	836192		Shim, Top Hinge (.030)		Appelez-nous	-
38	989256		Heater, Mullion		Appelez-nous	-
39	989908		Center Rail & Bracket Assembly (coffee)		Appelez-nous	-
39	989911		Center Rail & Bracket Assembly (almond)		Appelez-nous	-
39	989909		Center Rail & Bracket Assembly (golden Harvest)		Appelez-nous	-
39	836067		Center Rail & Bracket Assembly (white)		Appelez-nous	-
39	989910		Center Rail & Bracket Assembly (new Avocado)		Appelez-nous	-
40	836155		Shim, Center		Appelez-nous	-
41	WP488296		Washer, 11/64 (2)   (Replaces: 488296)			Immediately	$ 7.55
42	836153		Hinge, Center		Appelez-nous	-
46	WP487802		Washer   (Replaces: 488184)			Immediately	$ 7.91
47	836159		Hinge Butt, Bottom		Appelez-nous	-
49	654366		Pin, Hinge				$ 27.15
50	488714		Screw 10-32 X 5/16				$ 5.48
51	836196		Shim, Bottom Hinge (.030)		Appelez-nous	-
