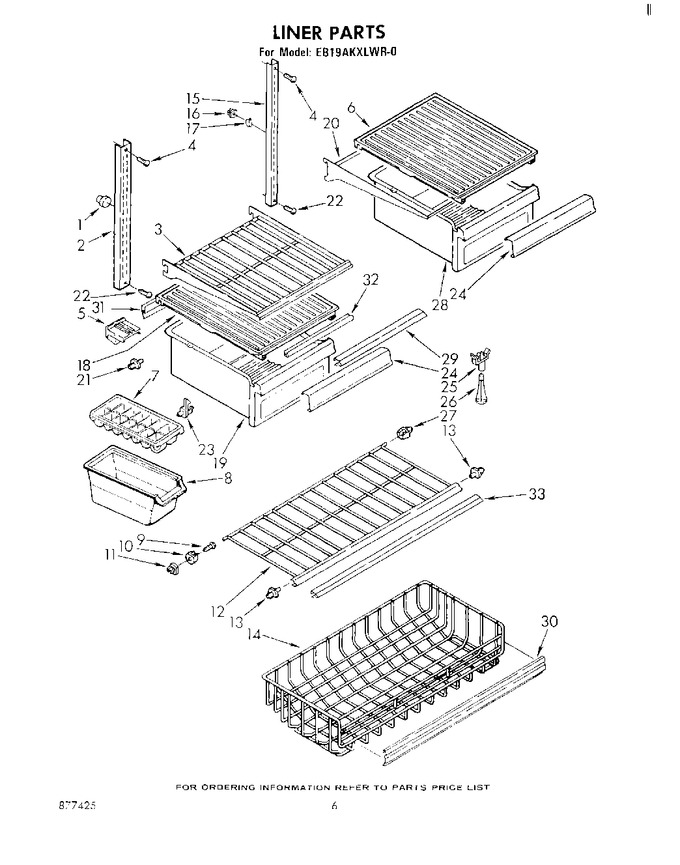

04 - Liner


05 - Interior


06 - Breaker And Control


07 - Unit


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	520959		Support, Center Ladder (2)		Appelez-nous	-
2	936230		Ladder (center)		Appelez-nous	-
3	936397		Shelf, Cantilever (3)		Appelez-nous	-
4	488357		Screw, 8 X 1-1/4 (3)		Appelez-nous	-
5	836412		Stud, Crisper Support (rear)		Appelez-nous	-
6	935123		Cover, Pan		Appelez-nous	-
7	WP841180A		Ice Tray (2)   (Replaces: 841180)			Immediately	$ 47.84
8	WP982704		Container Utility   (Replaces: 935139)				$ 32.55
9	WP488729		Screw, 8-15 X 1/2   (Replaces: 487109)			Immediately	$ 8.28
10	991512		Stud, Saddle (l.s.)		Appelez-nous	-
11	538449		Grommet, Screw		Appelez-nous	-
12	986809		Shelf, Freezer		Appelez-nous	-
13	529758		Stud, Shelf (2)		Appelez-nous	-
14	985382		Basket, Freezer		Appelez-nous	-
15	934267		Ladder, Shelf (side) (2)		Appelez-nous	-
16	842339		Grommet		Appelez-nous	-
17	520965		Support, Side Ladders (4)				$ 31.35
18	942190		Pan Slide & Cover		Appelez-nous	-
19	935286		Pan Crisper, Plastic (2)		Appelez-nous	-
20	936285		Pan Shelf, Cantilever		Appelez-nous	-
21	536475		Stud, Shelf (2)				$ 7.28
22	488980		Screw (repair)		Appelez-nous	-
22	488960		Screw, 8-32 X 1-1/4		Appelez-nous	-
23	836423		Stud, Shelf (2)		Appelez-nous	-
24	986316		Overlay, Pan		Appelez-nous	-
25	848562		Support, Crisper Cover				$ 24.30
26	836410		Post, Cover				$ 5.84
27	991510		Stud, Saddle (r.s.)		Appelez-nous	-
28	935203		Pan Meat, Plastic		Appelez-nous	-
29	935223		Trim, Shelf Front		Appelez-nous	-
30	991320		Trim, Freezer Basket		Appelez-nous	-
31	942027		Crisper Gasket, Rear (2)		Appelez-nous	-
32	942028		Crisper Gasket, Front (2)		Appelez-nous	-
33	985070		Trim, Shelf Front		Appelez-nous	-
