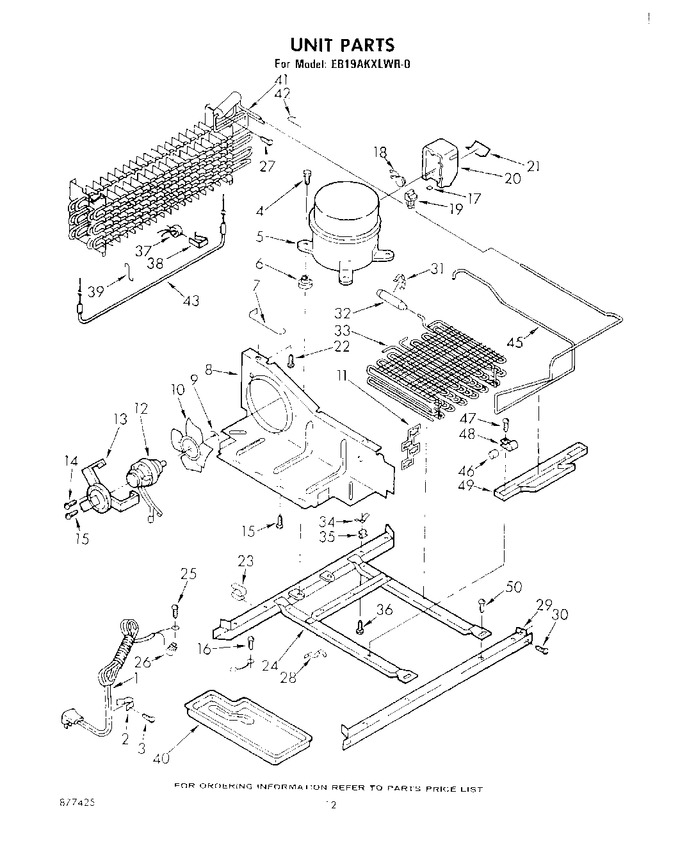

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	850626		Cord, Service		Appelez-nous	-
2	549193		Clamp-service Cord				$ 14.06
3	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
4	488400		Screw, 1/4-28 X 1`` (4)		Appelez-nous	-
5	464081		Compressor		Appelez-nous	-
6	547283		Grommet (4)		Appelez-nous	-
7	850156		Guard, Fan		Appelez-nous	-
8	850764		Baffle, Air		Appelez-nous	-
9	WP486692		Speednut, 1/4-20   (Replaces: 486692)				$ 8.43
10	989524		Blade, Fan		Appelez-nous	-
11	987210		Spacer Condenser		Appelez-nous	-
12	R1211		Motor, Fan   (Replaces: 851618)				$ 145.61
12	833697		Motor, Fan (alternate)   (Replaces: 851619)			Immediately	$ 109.14
13	548695		Bracket, Fan Motor		Appelez-nous	-
14	488868		Screw, 8-36 X 3/8 (3)		Appelez-nous	-
15	488624		Screw, 8 X 3/8		Appelez-nous	-
16	303776		Screw, 8-32 X 5/16 (2) (ground)   (Replaces: 488879)		Appelez-nous	-
17	547272		Bumper		Appelez-nous	-
18	549041		Protector, Overload		Appelez-nous	-
19	989661		Relay, Starting (alternate)		Appelez-nous	-
19	989662		Relay, Starting		Appelez-nous	-
20	549945		Case, Relay		Appelez-nous	-
21	531318		Spring, Relay Case		Appelez-nous	-
22	489050		Screw, 8-32 X 1/2 (5)				$ 692.56
23	548745		Clip, Wire (2)		Appelez-nous	-
24	548654		Frame, Unit Mounting		Appelez-nous	-
25	488474		Screw, 8-32 X 3/8		Appelez-nous	-
26	227991		Nut, Wire		Appelez-nous	-
27	W11693756		Screw, 8 X 5/8   (Replaces: 488687)			Immediately	$ 14.76
28	548744		Clip, Unit Cover (2)		Appelez-nous	-
29	548662		Rail, Unit Mounting		Appelez-nous	-
30	489340		Screw, 5/16-18 X 5/8 (4)   (Replaces: 488683)		Appelez-nous	-
31	548508		Clamp, Drier		Appelez-nous	-
32	W10843121		Drier   (Replaces: 978246)			Immediately	$ 57.13
33	481846		Condenser & Precooler Assembly		Appelez-nous	-
34	548738		Clamp, Mounting (4)		Appelez-nous	-
35	548737		Grommet, Mounting (4)		Appelez-nous	-
36	W11624204		Screw, 8 X 5/8 (4)   (Replaces: 486194)				$ 14.72
37	WP4387489		Bimetal, Defrost   (Replaces: 851890)				$ 108.99
37	WP4387489		Bimetal, Defrost (alternate)   (Replaces: 851891)				$ 108.99
38	513584		Clamp		Appelez-nous	-
39	851358		Support, Heater		Appelez-nous	-
40	842041		Tray, Evaporating				$ 64.92
41	851752		Evaporator		Appelez-nous	-
42	989306		Clip, Heater (2)		Appelez-nous	-
43	851765		Heater, Defrost		Appelez-nous	-
45	943351		Exchanger, Heat		Appelez-nous	-
46	510769		Dampener (2)		Appelez-nous	-
47	WPW10141625		Screw, 8-32 X 1/2 (2)   (Replaces: 488197)				$ 22.22
48	510716		Clamp, Tube (2)		Appelez-nous	-
49	989269		Pan, Drip		Appelez-nous	-
50	978030		Valve, Access (3/4``)				$ 137.25
50	978026		Valve, Access (5/16``)			Immediately	$ 134.49
50	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 18.65
50	978028		Valve, Access (1/2)		Appelez-nous	-
50	978029		Valve Access (5/8``)				$ 93.85
50	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
50	488454		Screw, 1/4-28 X 1/2 (2)		Appelez-nous	-
