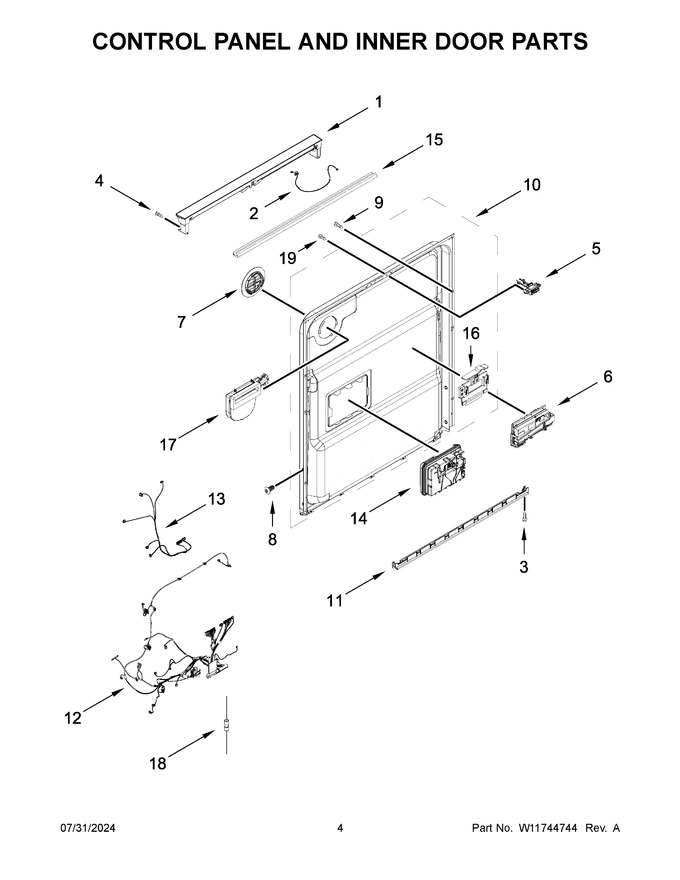

| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
W11622500 |
|
Console Assembly (black) (Replaces: W11500340) |
|
|
Immediately |
$ 343.11 |
|
|
| 2 |
W11690158 |
|
Jumper, Door (Replaces: W11336943) |
|
|
|
$ 17.70 |
|
|
| 3 |
W11627527 |
|
Screw (Replaces: W11258418) |
|
|
Immediately |
$ 14.72 |
|
|
| 4 |
WPW10213953 |
|
Screw (long) (Replaces: W10711884) |
|
|
Immediately |
$ 7.55 |
|
|
| 5 |
W11412299 |
 |
Latch Assembly (includes Switch) (Replaces: W11091934) |
|
|
Immediately |
$ 29.70 |
|
|
| 6 |
W11749374 |
|
Control, Electronic (Replaces: W11734005) |
|
Appelez-nous
|
- |
|
|
|
| 7 |
W11545290 |
 |
Bezel, Vent (Replaces: W11025634) |
|
|
Immediately |
$ 14.87 |
|
|
| 8 |
WP3400071 |
 |
Screw (Replaces: 3400071) |
|
|
|
$ 8.26 |
|
|
| 9 |
WPW10348409 |
 |
Screw (Replaces: W10348409) |
|
|
Immediately |
$ 8.20 |
|
|
| 10 |
W11559689 |
|
Inner Door Assembly (Replaces: W11098822) |
|
|
|
$ 393.05 |
|
|
| 11 |
W11664713 |
 |
Seal, Door Bottom (Replaces: W11563231) |
|
|
Immediately |
$ 60.78 |
|
|
| 12 |
W11726282 |
|
Wiring Harness, Main (includes Thermostat & Fuse) (Replaces: W11649432) |
|
|
Immediately |
$ 271.64 |
|
|
| 13 |
W11685311 |
|
Wiring Harness, Inner Door (Replaces: W11630926) |
|
|
|
$ 17.88 |
|
|
| 14 |
W11412300 |
 |
Dispenser Assembly (Replaces: W11092649) |
|
|
Immediately |
$ 248.80 |
|
|
| 15 |
W11213719 |
|
Seal, Console/door (Replaces: W11050927) |
|
|
Immediately |
$ 172.77 |
|
|
| 16 |
W11088985 |
|
Hanger, Control |
|
|
|
$ 34.23 |
|
|
| 17 |
W11649995 |
 |
Vent Assembly (Replaces: W11527847) |
|
|
Immediately |
$ 102.11 |
|
|
| 18 |
W11397505 |
|
Fuse, In-line |
|
|
|
$ 166.87 |
|
|
| 19 |
WPW10348408 |
|
Screw (Replaces: W10348408) |
|
|
Immediately |
$ 7.55 |
|
|
View Diagram in Separate Window
Print Part List
