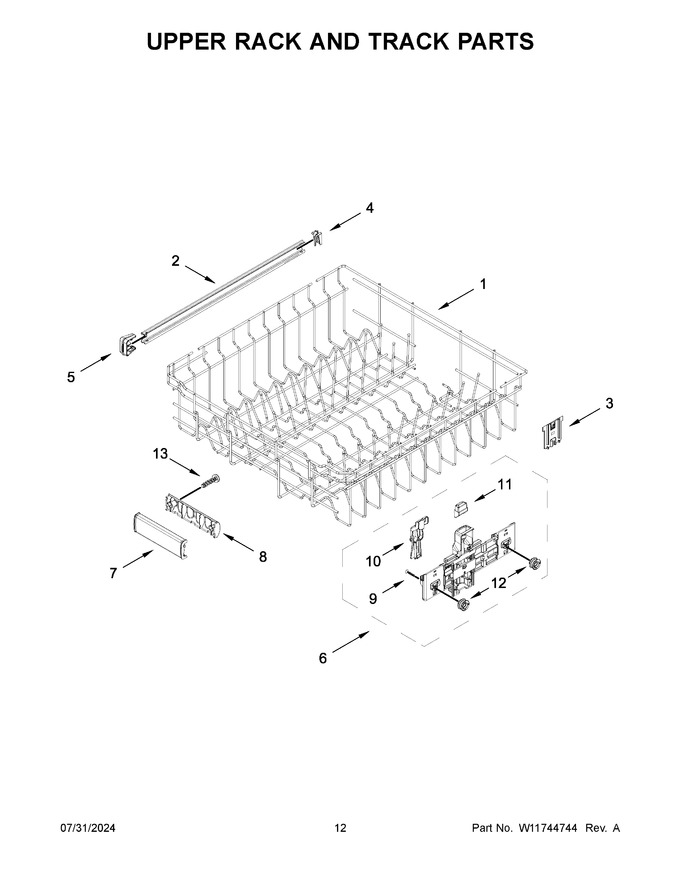

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11678956		Dishrack, Upper   (Replaces: W10847875)				$ 176.25
2	W11561204		Track, Dishrack   (Replaces: W11441109)			Immediately	$ 34.70
3	W11580020		Clip, Adjuster Arm   (Replaces: W11180605)			Immediately	$ 56.39
4	W11579392		Track Stop, Rear   (Replaces: W11084872)			Immediately	$ 18.37
5	W11545307		Track Stop, Front   (Replaces: W11084874)			Immediately	$ 15.37
6	W11551537		Adjustment Assembly (left Hand)   (Replaces: W11268090)			Immediately	$ 54.05
7	W11268682		Handle, Dishrack Front		Appelez-nous	-
8	W11268681		Handle, Dishrack Rear			Immediately	$ 104.72
9	W11545296		Wheel   (Replaces: W11048221)			Immediately	$ 13.37
10	W11180178		Leveler, Adjuster Arm				$ 68.54
11	W11267699		Button, Adjuster Arm				$ 67.49
12	W11708397		Screw   (Replaces: W11376395)		Appelez-nous	-
13	WP9741232		Screw   (Replaces: 9741232)			Immediately	$ 4.56
6A	W11551430		Adjustment Assembly (right Hand)   (Replaces: W11268086)			Immediately	$ 67.98

    View Diagram in Separate Window       Print Part List
