| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
W11409866 |
|
Tub Assembly (includes Gasket) (Replaces: W11120458) |
|
|
Immediately |
$ 735.08 |
|
|
| 2 |
W11226744 |
|
Base, Terminal Box |
|
|
Immediately |
$ 27.61 |
|
|
| 3 |
W11768589 |
|
Gasket, Tub (Replaces: W11035860) |
|
|
Immediately |
$ 29.56 |
|
|
| 4 |
W11535081 |
|
Nut, Water Inlet (Replaces: W11429974) |
|
|
Immediately |
$ 11.86 |
|
|
| 5 |
W11545309 |
 |
Strike, Latch (Replaces: W11090487) |
|
|
Immediately |
$ 15.42 |
|
|
| 6 |
W11551549 |
|
Screw (Replaces: W11296374) |
|
|
|
$ 13.25 |
|
|
| 7 |
W11414078 |
|
Seal, Cabinet (Replaces: W11165091) |
|
|
Immediately |
$ 25.61 |
|
|
| 8 |
W11550169 |
 |
Drip Tray (Replaces: W11025993) |
|
|
Immediately |
$ 39.65 |
|
|
| 9 |
W11025986 |
|
Funnel, Overfill Protection |
|
|
|
$ 20.37 |
|
|
| 10 |
W11025988 |
|
Funnel Extension |
|
|
Immediately |
$ 25.52 |
|
|
| 11 |
WP8269145 |
 |
Bracket, Undercounter (Replaces: 8269145) |
|
|
Immediately |
$ 17.40 |
|
|
| 12 |
W11579566 |
 |
Cover, Tub Corner (Replaces: W11165093) |
|
|
Immediately |
$ 15.29 |
|
|
| 13 |
W11545764 |
 |
Float Switch (Replaces: W11255994) |
|
|
Immediately |
$ 22.28 |
|
|
| 14 |
W11573757 |
 |
Plug, Tub (Replaces: W11184083) |
|
|
Immediately |
$ 11.57 |
|
|
| 15 |
W11535094 |
 |
Water Inlet Assembly (Replaces: W11429970) |
|
|
Immediately |
$ 110.79 |
|
|
| 16 |
W11561254 |
|
Leg, Leveling (Replaces: W11455395) |
|
|
Immediately |
$ 15.09 |
|
|
| 17 |
WP3378128 |
 |
Washer, Pronged Cup (Replaces: 3378128) |
|
|
|
$ 10.63 |
|
|
| 18 |
WPW10277003 |
 |
Screw (Replaces: W10277003) |
|
|
|
$ 6.80 |
|
|
| 19 |
WP3400892 |
|
Screw (Replaces: 3400892) |
|
|
|
$ 7.42 |
|
|
| 20 |
W11407385 |
 |
Cover, Terminal Box (Replaces: W11226746) |
|
|
Immediately |
$ 27.82 |
|
|
| 21 |
W11679658 |
|
Side Support, Tub (left Hand) (Replaces: W10920122) |
|
|
Immediately |
$ 62.32 |
|
|
| 22 |
W11579564 |
 |
Shield, Tub Sound (Replaces: W11158115) |
|
|
Immediately |
$ 72.50 |
|
|
| 23 |
W11614118 |
|
Tub Mount, Upper Rack (Replaces: W11086088) |
|
|
Immediately |
$ 21.11 |
|
|
| 24 |
W11502191 |
 |
Miscellaneous Parts Bag (contains 2 Screws, 2 Clamps, & 2 Brackets) (Replaces: W11362500) |
|
|
Immediately |
$ 20.96 |
|
|
| 25 |
W11393126 |
|
Sound Insulation, Bottom |
|
|
|
$ 33.02 |
|
|
| 26 |
W11537778 |
 |
Heater Element Assembly (Replaces: W11536143) |
|
|
Immediately |
$ 85.40 |
|
|
| 27 |
W11573809 |
|
Terminal Block (Replaces: W11132441) |
|
|
Immediately |
$ 27.57 |
|
|
| 28 |
W11545286 |
 |
Nut, Tub (Replaces: W10920244) |
|
|
Immediately |
$ 15.39 |
|
|
| 29 |
W11579562 |
|
Tub Mount, Third Level Rack (left Hand) (Replaces: W11094449) |
|
|
Immediately |
$ 32.58 |
|
|
| 30 |
WP3400014 |
|
Screw, Grounding (Replaces: 3400014) |
|
|
|
$ 7.42 |
|
|
| 21A |
W11679657 |
|
Side Support, Tub (right Hand) (Replaces: W10920120) |
|
|
Immediately |
$ 62.45 |
|
|
| 29A |
W11596053 |
|
Tub Mount, Third Level Rack (right Hand) (Replaces: W11256437) |
|
|
Immediately |
$ 103.19 |
|
|

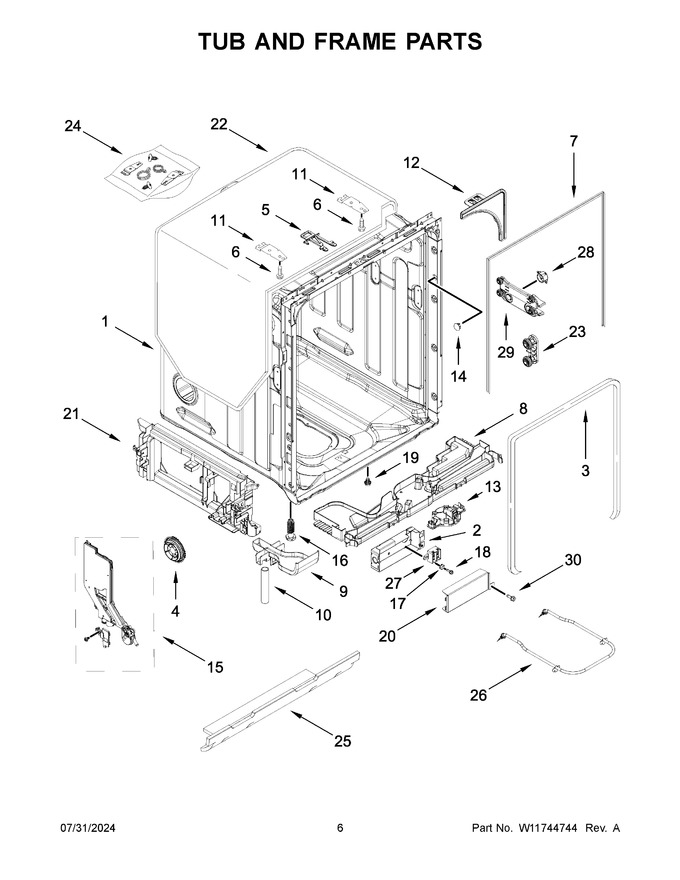

View Diagram in Separate Window
