01 - Cover Sheet

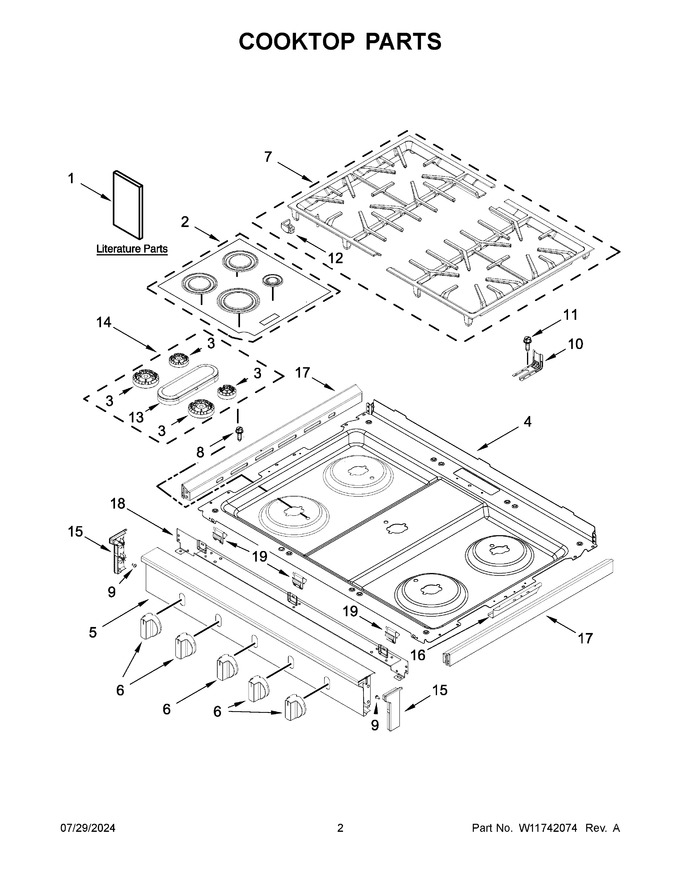

02 - Cooktop Parts
03 - Control Panel Parts
04 - Manifold Parts
05 - Chassis Parts
06 - Door Parts
07 - Drawer Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11641830 | Quick Start Guide |
|
- | |||||
| 2 | W11747335 | Burner Cap Kit (black (set Of 4)) (Replaces: W11636608) |
|
- | |||||
| 3 | W11747336 | Spreader, Flame (left Front And Right Rear) (Replaces: W11352019) |
|
$ 36.96 | |||||
| 4 | W11730423 | Cooktop (black) (Replaces: W11279786) |
|
$ 299.42 | |||||
| 5 | W11730044 | Panl-mnfld (Replaces: W11412239) |
|
Immediately | $ 371.52 | ||||
| 6 | W11729101 | Knob, Control (stainless) (Replaces: W11584000) |
|
$ 38.68 | |||||
| 7 | W11729009 | Grate Kit (black (set Of 2)) (Replaces: W11601432) |
|
$ 322.62 | |||||
| 8 | W11241230 | Screw (Replaces: W10673618) |
|
Immediately | $ 13.26 | ||||
| 9 | W11245710 | Screw (Replaces: 9780274) |
|
Immediately | $ 13.28 | ||||
| 10 | W11839019 | Bracket, Anti-tip (Replaces: W11379945) |
|
Immediately | $ 25.69 | ||||
| 11 | 7101P48560 | Screw, Anti-tip Kit |
|
- | |||||
| 12 | W11729100 | Grate, Bumper (Replaces: W11672010) |
|
$ 12.34 | |||||
| 13 | W11475513 | Oval Burner Assembly (Replaces: W11357363) |
|
$ 98.83 | |||||
| 14 | W11728823 | Burner Kit (Replaces: W11635708) |
|
$ 162.83 | |||||
| 15 | W11729964 | Panel, Manifold End Cap (stainless (left)) (Replaces: W11351704) |
|
Immediately | $ 76.48 | ||||
| 16 | W11728390 | Bracket, Spark Module (Replaces: W11366598) |
|
- | |||||
| 17 | W11729931 | Cooktop, Frame (Replaces: W11736695) |
|
$ 154.40 | |||||
| 18 | W11750421 | Bracket, Front Cooktop (black) (Replaces: W11736687) |
|
- | |||||
| 19 | W11728827 | Spring, Clip (Replaces: W11637551) |
|
- | |||||
| 15A | W11729965 | Panel, Manifold End Cap (stainless (right)) (Replaces: W11351707) |
|
Immediately | $ 76.48 | ||||
| 1A | W11642080 | Owners Manual |
|
- | |||||
| 1B | W11639172 | Tech Sheet |
|
- | |||||
| 3A | W11435657 | Spreader, Flame (left Rear) (Replaces: W11352021) |
|
$ 75.99 | |||||
| 3B | W11435630 | Spreader, Flame (right Front) (Replaces: W11352018) |
|
Immediately | $ 73.91 | ||||
| NI | W11707251 | Harness, Bake And Broil (Replaces: W11448086) |
|
$ 71.96 | |||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 18.48 | |||||
| NI | 3400964 | Clip, Wire (Replaces: 3196520) |
|
$ 80.10 | |||||
| NI | 3196896 | Clip, Wire |
|
- | |||||
| NI | W11244557 | Screw (Replaces: 3196173) |
|
$ 12.86 | |||||
| NI | W11730299 | Harness, Main (Replaces: W11374168) |
|
- | |||||
| NI | ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- |
