View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Cooktop Parts
03 - Control Panel Parts
04 - Manifold Parts
05 - Chassis Parts
06 - Door Parts
07 - Drawer Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:

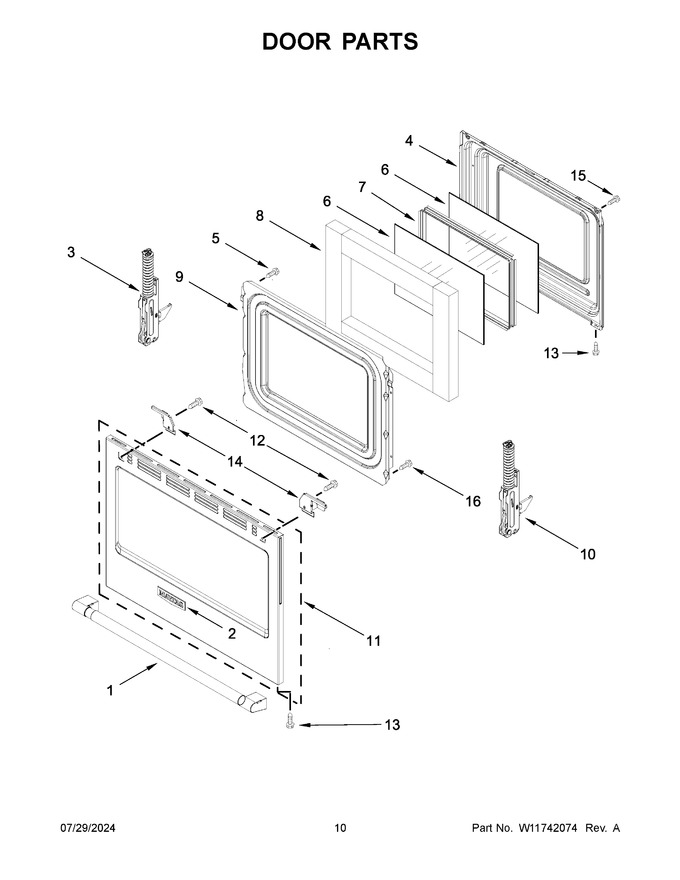

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11648982 | Handle, Oven Door (stainless) (Replaces: W11495825) |
|
$ 197.87 | |||||
| 2 | W11648754 | Badge (Replaces: W11628148) |
|
Immediately | $ 38.16 | ||||
| 3 | WPW10440013 | Hinge, Door (active) (Replaces: W10388635) |
|
Immediately | $ 57.42 | ||||
| 4 | WP9761344 | Liner, Door (Replaces: 9761344) |
|
Immediately | $ 335.60 | ||||
| 5 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 7.87 | ||||
| 6 | WP8053948 | Glass, Inner (Replaces: 9758162) |
|
Immediately | $ 208.85 | ||||
| 7 | WPW10316950 | Frame, Glass (Replaces: W10316950) |
|
Immediately | $ 81.08 | ||||
| 8 | WPW10278991 | Insulation, Door Strip (Replaces: W10278991) |
|
Immediately | $ 91.23 | ||||
| 9 | W11539580 | Retainer, Insulation (Replaces: W11380222) |
|
$ 209.98 | |||||
| 10 | WPW10440013 | Hinge, Door (active) (Replaces: W10440013) |
|
Immediately | $ 57.42 | ||||
| 11 | W11750809 | Outer Door Skin And Glass Assembly (stainless (includes Badge)) (Replaces: W11631954) |
|
$ 691.13 | |||||
| 12 | WP3196154 | Screw (Replaces: 3196154) |
|
$ 7.60 | |||||
| 13 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 7.92 | ||||
| 14 | W11726808 | Bracket, Handle Mount (left) (Replaces: W11157607) |
|
- | |||||
| 15 | WPW10200660 | Screw (Replaces: W10200660) |
|
Immediately | $ 7.42 | ||||
| 16 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.43 | ||||
| 14A | W11726809 | Bracket, Handle Mount (right) (Replaces: W11417442) |
|
$ 26.72 |
