01 - Cover Sheet
02 - Cooktop Parts

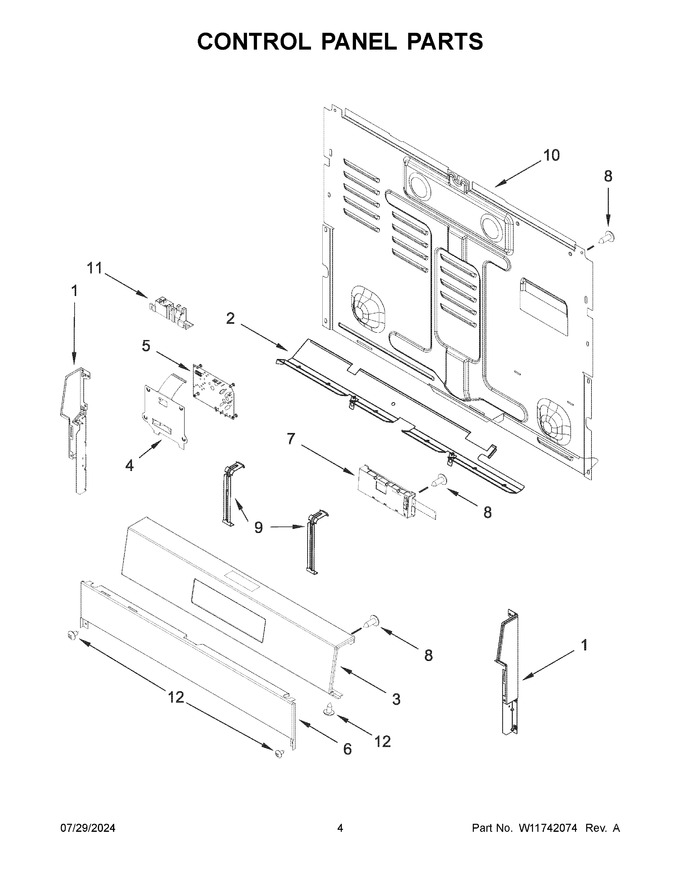

03 - Control Panel Parts
04 - Manifold Parts
05 - Chassis Parts
06 - Door Parts
07 - Drawer Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11728387 | Endpost, Console (stainless (left)) (Replaces: W11625424) |
|
$ 104.57 | |||||
| 2 | W11747326 | Shield, Heat (Replaces: W11736649) |
|
- | |||||
| 3 | W11745863 | Panel, Control (stainless) (Replaces: W11730199) |
|
$ 309.42 | |||||
| 4 | W11750420 | Bracket, Mounting (dsi) (Replaces: W11736648) |
|
- | |||||
| 5 | W10898291 | Module, Spark Dsi (Replaces: W10818365) |
|
Immediately | $ 329.08 | ||||
| 6 | W11730240 | Lower, Panel (stainless) (Replaces: W11625438) |
|
$ 201.31 | |||||
| 7 | W11764620 | Control, Electronic (lcx) (black) (Replaces: W11637095) |
|
$ 377.36 | |||||
| 8 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 9 | W11728256 | Bracket, Control (Replaces: W11371599) |
|
- | |||||
| 10 | W11730305 | Cover-rear (Replaces: W11393670) |
|
- | |||||
| 11 | W11703692 | Spark Module (Replaces: W11350452) |
|
Immediately | $ 86.99 | ||||
| 12 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 1A | W11728386 | Endpost, Console (stainless (right)) (Replaces: W11625421) |
|
Immediately | $ 104.57 |
