Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11681451 Door Assembly (black Stainless, Left Hand, Includes Door Gasket)   (Replaces: W11381839) In-Stock Immediately $ 1,024.65

2 W11681450 Door Assembly (black Stainless, Right Hand, Includes Door Gasket)   (Replaces: W11381837) Special Order $ 977.33

3 WPW10238319 Screw   (Replaces: W10238319) Special Order $ 7.18

4 W10904595 Latch, Door Closer (left Hand)   (Replaces: W10712952) Special Order $ 16.24

5 W11212164 Latch, Door Closer (right Hand)   (Replaces: W10712953) Special Order $ 15.83

6 W10907531 Mullion, Door (black)   (Replaces: W10902032) Special Order $ 138.99

7 W11311945 Screw   (Replaces: 12990204) Special Order $ 13.25

8 W11483532 Handle Assembly (stainless)   (Replaces: W11339136) In-Stock Immediately $ 160.21

9 WP98165 Screw   (Replaces: 12990504) Special Order $ 7.71

10 W10407187 Bumper, Door (black) Special Order $ 43.51

11 W10394073 Tube, Water Special Order $ 113.63

12 W11449276 Screw   (Replaces: W11328753) In-Stock Immediately $ 15.35

13 W11680598 Trivet, 2 Liter   (Replaces: W11373152) In-Stock Immediately $ 94.77

14 W11706282 Gasket, Ice Chute   (Replaces: W11689930) Special Order $ 114.71

15 2006254 Screw   (Replaces: 12993001) Special Order $ 12.41

16 W11625019 Gasket, Ice Door   (Replaces: W10567561) Special Order $ 46.55

17 W11315303 Clip, Tube Appelez-nous -
18 W11748342 Board And Cover Assembly, Emitter   (Replaces: W11554029) Appelez-nous -
19 W11748343 Board And Cover Assembly, Receiver   (Replaces: W11554031) Appelez-nous -
20 W11684620 Vent, Thermistor   (Replaces: W10646867) In-Stock Immediately $ 20.84

21 W11680597 Bucket, Gallon   (Replaces: W11373151) In-Stock Immediately $ 164.45

22 W10861004 Gasket, Door (black)   (Replaces: W10873939) Special Order $ 298.05

23 W11679939 Door, Ice   (Replaces: W11373132) Special Order $ 205.14

24 W11504381 Retainer, Ice Chute   (Replaces: W10562839) Special Order $ 14.53


    View Diagram in Separate Window     Print Icon   Print Part List

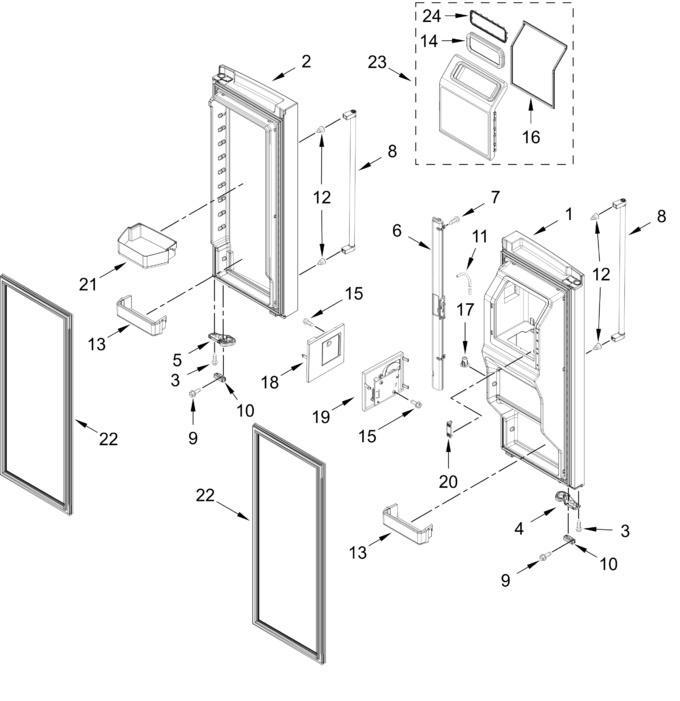

Diagram for KRFF577KBS06
