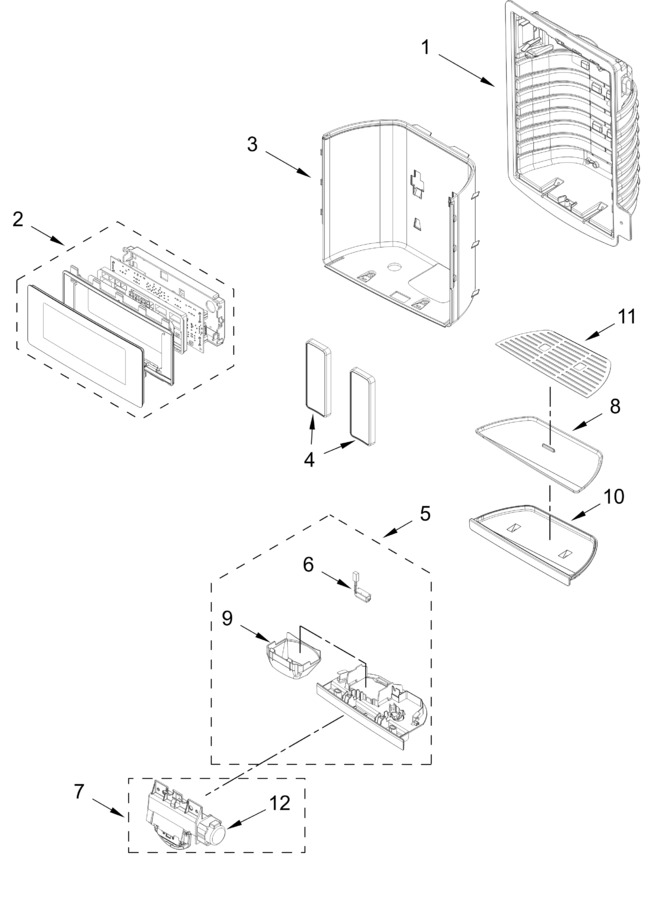

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI7BA56BA2C1ECE25D7D2B23E3FB9AE19C | Housing, Dispenser (not Serviced) |
|
- | |||||
| 2 | W11776300 | Control, User Interface (black) (Replaces: W11748615) |
|
- | |||||
| 3 | W10486344 | Wall, Dispenser False (black) |
|
$ 134.00 | |||||
| 4 | W11561037 | Pad Assembly (black) (Replaces: W10317253) |
|
$ 82.93 | |||||
| 5 | W10836794 | Separator Assembly (Replaces: W10394101) |
|
$ 192.69 | |||||
| 6 | W11290115 | Led Assembly (Replaces: W10238083) |
|
$ 84.45 | |||||
| 7 | WPW10606117 | Door Assembly, Ice (Replaces: W10606117) |
|
$ 192.28 | |||||
| 8 | W10400889 | Insert, Drip Tray (black) |
|
$ 50.01 | |||||
| 9 | WPW10435760 | Guide, Ice (Replaces: W10435760) |
|
Immediately | $ 23.94 | ||||
| 10 | W10400884 | Tray, Dispenser Drip (black) |
|
$ 69.16 | |||||
| 11 | WPW10542708 | Grate, Drip Tray (Replaces: W10542708) |
|
$ 79.54 | |||||
| 12 | WPW10205979 | Motor, Ice Door (Replaces: W10205979) |
|
Immediately | $ 107.60 |
