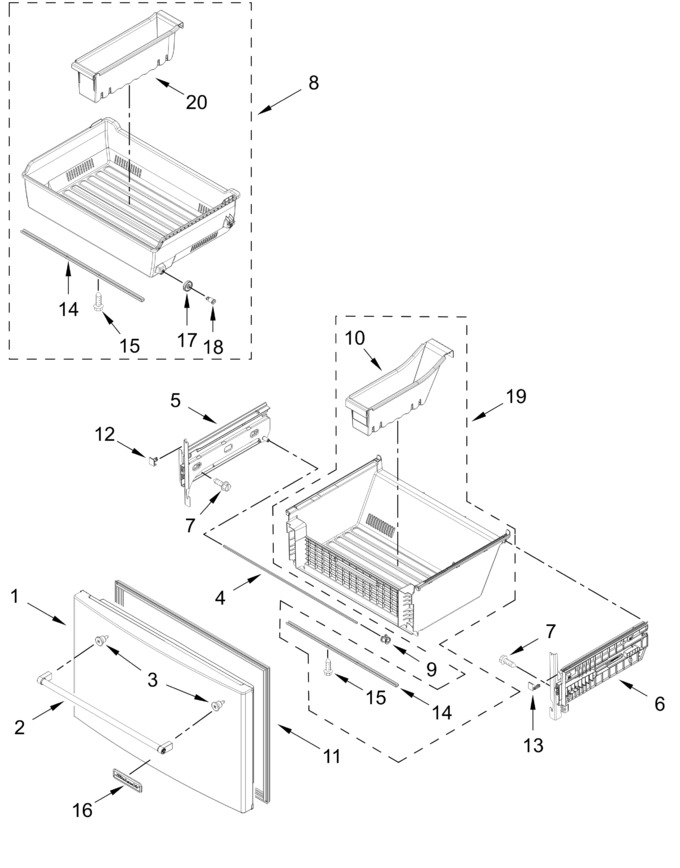

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11681452 | Door Assembly (black Stainless, Includes Door Gasket) (Replaces: W11733743) |
|
$ 923.46 | |||||
| 2 | W11499276 | Handle Assembly (stainless) (Replaces: W11222206) |
|
Immediately | $ 185.40 | ||||
| 3 | W11449276 | Screw (Replaces: W11328753) |
|
Immediately | $ 17.06 | ||||
| 4 | WPW10503522 | Shaft (Replaces: W10503522) |
|
$ 98.10 | |||||
| 5 | W11668672 | Bracket Assembly (gray, Left Hand) (Replaces: W10795771) |
|
Immediately | $ 532.22 | ||||
| 6 | W11668672 | Bracket Assembly (gray, Right Hand) (Replaces: W10795769) |
|
Immediately | $ 532.22 | ||||
| 7 | WP67006908 | Screw (Replaces: 12990518) |
|
Immediately | $ 8.78 | ||||
| 8 | W11379101 | Pan Assembly, Upper |
|
- | |||||
| 9 | W10852685 | Clip, Shaft (Replaces: W10709748) |
|
$ 11.39 | |||||
| 10 | W10562492 | Divider, Lower |
|
$ 108.21 | |||||
| 11 | W10407215 | Gasket, Door (black) (Replaces: W10248748) |
|
$ 317.99 | |||||
| 12 | W10585151 | Stop, Pan (left Hand) |
|
$ 86.03 | |||||
| 13 | W10585150 | Stop, Pan (right Hand) |
|
$ 86.09 | |||||
| 14 | W11677723 | Support, Pan (Replaces: W10469177) |
|
Immediately | $ 155.10 | ||||
| 15 | WP489443 | Screw (stainless) (Replaces: 489443) |
|
Immediately | $ 8.33 | ||||
| 16 | W10876598 | Nameplate (grey) (Replaces: W10765861) |
|
Immediately | $ 72.82 | ||||
| 17 | W11578839 | Roller, Pan (Replaces: W10248555) |
|
$ 14.96 | |||||
| 18 | W11573594 | Axle, Roller (Replaces: W10643690) |
|
$ 19.14 | |||||
| 19 | W10594052 | Pan Assembly, Lower |
|
Immediately | $ 271.25 | ||||
| 20 | W11681081 | Divider, Upper (Replaces: W11379103) |
|
- |
