Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 ARI4741983F61CAC445F12C0C1FD1B613C1 Literature Parts Appelez-nous -
2 W11776301 Control Board, Electronic   (Replaces: W11735236) Appelez-nous -
3 W10562833 Block, Pivot Special Order $ 43.96

4 ARI2948F547D7C4C1B6CA0878B04EDFC4EF Cabinet (not A Servicable Part) Appelez-nous -
5 WPW10471618 Cover, Top Hinge (grey, Left Hand)   (Replaces: W10471618) Special Order $ 25.27

6 WPW10407158 Cover, Top Hinge (grey, Right Hand)   (Replaces: W10407158) Special Order $ 22.98

7 W11534848 Gasket, Unit Cover In-Stock Immediately $ 22.34

8 WPW10141622 Brake, Roller   (Replaces: W10141622) In-Stock Immediately $ 8.24

9 WP8281196 Screw   (Replaces: 12992602) In-Stock Immediately $ 7.55

10 W11592405 Hinge, Top (left Hand)   (Replaces: W11456644) Special Order $ 32.31

11 W11592404 Hinge, Top (right Hand)   (Replaces: W11456643) Special Order $ 25.90

12 W10415341 Gasket, Hv Box Special Order $ 37.00

13 W10141518 Screw Special Order $ 9.54

14 W11126052 Screw   (Replaces: W10731474) In-Stock Immediately $ 14.73

15 W10878115 Hinge, Center (grey, Left Hand)   (Replaces: W10248706) In-Stock Immediately $ 76.85

16 W11240748 Hinge, Center (grey, Right Hand)   (Replaces: W10248703) Special Order $ 78.71

17 WP12587703AP Cover, Corner (grey)   (Replaces: 12587703AP) Special Order $ 8.07

18 W11482025 Valve, Water   (Replaces: W11460084) In-Stock Immediately $ 301.85

19 W11820444 Roller Assembly (left Hand)   (Replaces: W10515763) In-Stock Immediately $ 37.35

20 W11820445 Roller Assembly (right Hand)   (Replaces: W10515762) In-Stock Immediately $ 37.35

21 W11686675 Screw   (Replaces: 12990702) Special Order $ 14.27

22 WPW10637671 Grille, Toe (grey)   (Replaces: W10637671) In-Stock Immediately $ 143.46

23 W11214483 Screw   (Replaces: 12992601) In-Stock Immediately $ 14.72

24 W10768379 Lid, Hv Special Order $ 83.60

25 W10336736 Cover, Roller   (Replaces: W11578005) Appelez-nous -
26 WPW10141645 Screw   (Replaces: W10141645) Special Order $ 8.05

27 W11482381 Tube, Water   (Replaces: W11296599) In-Stock Immediately $ 112.35

28 W10754144 Cover, Control Box Special Order $ 86.16

29 W11289496 Switch, Light   (Replaces: W10847850) In-Stock Immediately $ 38.71

30 W11482027 Cover, Unit   (Replaces: W11364644) In-Stock Immediately $ 121.36

31 W11456069 Clamp, Tube   (Replaces: M0108107) In-Stock Immediately $ 22.40

32 W10854958 Screw   (Replaces: 12990302) Special Order $ 7.90

33 67006564 Screw   (Replaces: W10709365) In-Stock Immediately $ 8.15

34 W10212137 Retainer, Door Special Order $ 13.69

35 W11573362 Screw (stainless)   (Replaces: W10673840) Special Order $ 14.72

36 WPW10505294 Coupler, Door   (Replaces: W10505294) Special Order $ 11.90

W11502338 Owners Manual Appelez-nous -
W11662357 Tech Sheet Appelez-nous -
W11647508 Energy Guide Appelez-nous -
ARIB76A2A7BC8719117191163EF8A421B21 (includes Foil) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

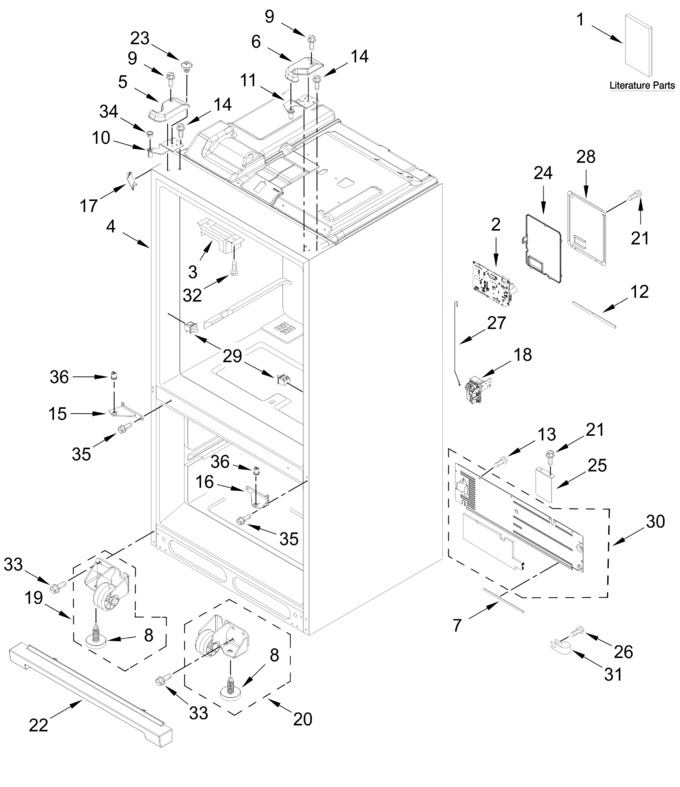

Diagram for KRFF577KPS06
