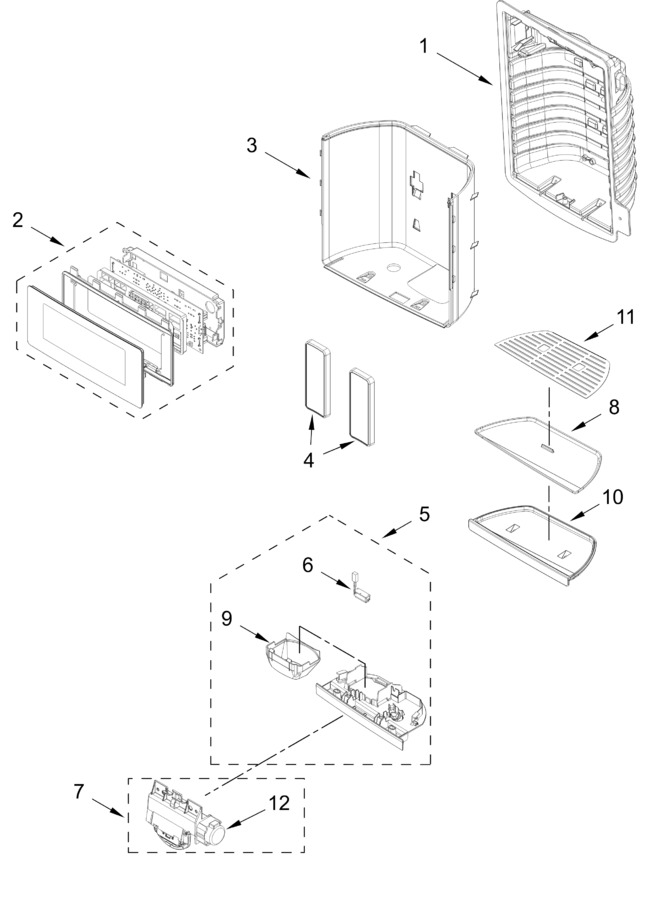

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI7BA56BA2C1ECE25D7D2B23E3FB9AE19C | Housing, Dispenser (not Serviced) |
|
- | |||||
| 2 | W11776300 | Control, User Interface (black) (Replaces: W11748615) |
|
- | |||||
| 3 | WPW10486346 | Wall, Dispenser False (grey) (Replaces: W10486346) |
|
$ 138.80 | |||||
| 4 | WPW10346924 | Pad Assembly (grey) (Replaces: W10346924) |
|
Immediately | $ 260.69 | ||||
| 5 | W10836794 | Separator Assembly (Replaces: W10394101) |
|
$ 173.42 | |||||
| 6 | W11290115 | Led Assembly (Replaces: W10238083) |
|
$ 76.01 | |||||
| 7 | WPW10606117 | Door Assembly, Ice (Replaces: W10606117) |
|
$ 173.05 | |||||
| 8 | W10402269 | Insert, Drip Tray (grey) |
|
Immediately | $ 62.19 | ||||
| 9 | WPW10435760 | Guide, Ice (Replaces: W10435760) |
|
Immediately | $ 21.55 | ||||
| 10 | WPW10400887 | Tray, Dispenser Drip (grey) (Replaces: W10400887) |
|
$ 66.23 | |||||
| 11 | WPW10542708 | Grate, Drip Tray (Replaces: W10542708) |
|
$ 71.59 | |||||
| 12 | WPW10205979 | Motor, Ice Door (Replaces: W10205979) |
|
Immediately | $ 96.84 |
