Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11681454 Door Assembly (stainless, Left Hand, Includes Door Gasket)   (Replaces: W11381838) Special Order $ 1,133.68

2 W11681453 Door Assembly (stainless, Right Hand, Includes Door Gasket)   (Replaces: W11381836) Special Order $ 1,081.68

3 WPW10238319 Screw   (Replaces: W10238319) Special Order $ 7.98

4 W10904595 Latch, Door Closer (left Hand)   (Replaces: W10712952) Special Order $ 18.04

5 W11212164 Latch, Door Closer (right Hand)   (Replaces: W10712953) Special Order $ 17.59

6 W10849525 Mullion, Door (grey)   (Replaces: W10698201) Special Order $ 155.62

7 W11311945 Screw   (Replaces: 12990204) Special Order $ 14.72

8 W11483532 Handle Assembly (stainless)   (Replaces: W11339136) In-Stock Immediately $ 178.01

9 WP98165 Screw   (Replaces: 12990504) Special Order $ 8.57

10 W11573367 Bumper, Door (grey)   (Replaces: W10407188) In-Stock Immediately $ 23.35

11 W10394073 Tube, Water Special Order $ 126.25

12 W11449276 Screw   (Replaces: W11328753) In-Stock Immediately $ 17.06

13 W11680598 Trivet, 2 Liter   (Replaces: W11373152) In-Stock Immediately $ 105.30

14 W11706282 Gasket, Ice Chute   (Replaces: W11689930) Special Order $ 127.45

15 2006254 Screw   (Replaces: 12993001) Special Order $ 13.79

16 W11625019 Gasket, Ice Door   (Replaces: W10567561) Special Order $ 51.72

17 W11315303 Clip, Tube Appelez-nous -
18 W11748342 Board And Cover Assembly, Emitter   (Replaces: W11554029) Appelez-nous -
19 W11748343 Board And Cover Assembly, Receiver   (Replaces: W11554031) Appelez-nous -
20 W11684620 Vent, Thermistor   (Replaces: W10646867) In-Stock Immediately $ 23.16

21 W11680597 Bucket, Gallon   (Replaces: W11373151) In-Stock Immediately $ 182.72

22 W10407212 Gasket, Door (grey)   (Replaces: W10873938) In-Stock Immediately $ 329.19

23 W11679939 Door, Ice   (Replaces: W11373132) Special Order $ 227.93

24 W11504381 Retainer, Ice Chute   (Replaces: W10562839) Special Order $ 16.14


    View Diagram in Separate Window     Print Icon   Print Part List

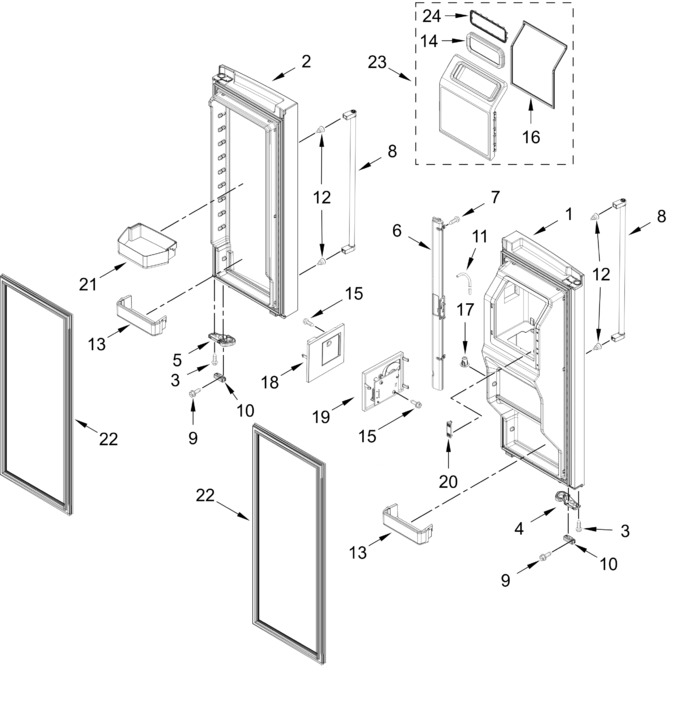

Diagram for KRFF577KPS06
