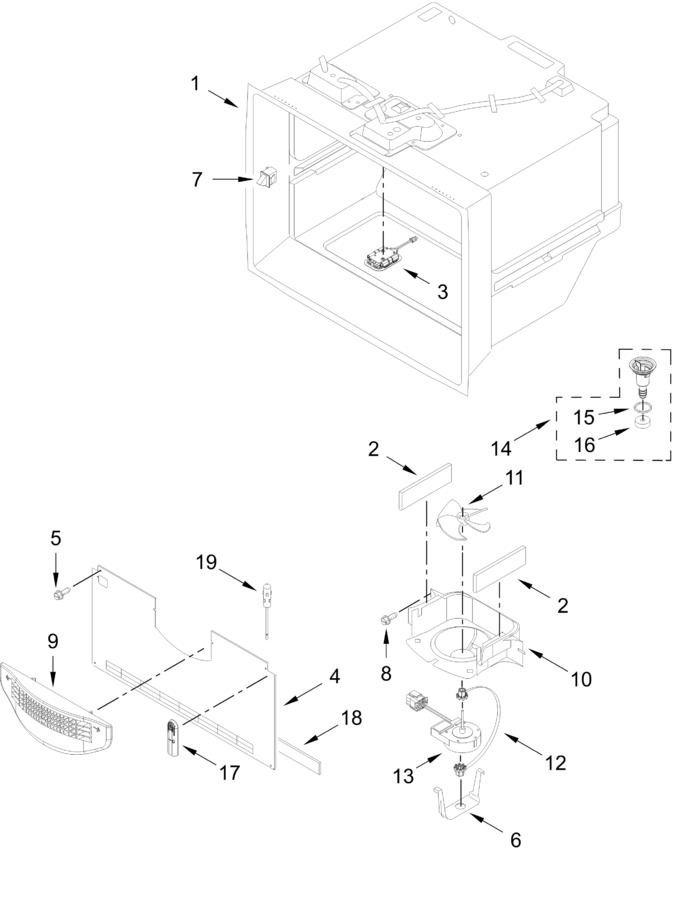

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARID4B24459AD3CE840514D8AC6D2EFEC61		Liner (not A Seviceable Part)		Appelez-nous	-
2	W10856123		Gasket, Foam   (Replaces: A3189392)			Immediately	$ 7.25
3	W11483116		Led Light Module   (Replaces: W11228040)			Immediately	$ 19.63
4	W11408170		Cover, Evaporator (freezer)		Appelez-nous	-
5	67006425		Screw   (Replaces: 12990511)			Immediately	$ 6.57
6	W11712696		Clip, Fan Motor   (Replaces: 12956601)			Immediately	$ 11.02
7	W11384469		Switch, Rocker   (Replaces: W10847853)			Immediately	$ 35.18
8	WP98165		Screw   (Replaces: 12990504)				$ 7.71
9	W10871842		Grille, Air (freezer)   (Replaces: W10496613)				$ 14.02
10	WPW10363507		Shroud, Evaporator Fan   (Replaces: W10363507)				$ 77.72
11	WP67006337		Blade, Fan   (Replaces: 12986101)			Immediately	$ 95.05
12	W11676465		Grommet, Fan Motor   (Replaces: 12951101)			Immediately	$ 14.00
13	W11578030		Motor, Evaporator (includes Harness, Thermistor, And Defrost Thermostat)   (Replaces: W11402610)			Immediately	$ 145.55
14	W10503218		Funnel, Fc Drain			Immediately	$ 16.78
15	WPM0500703		Seal   (Replaces: M0500703)				$ 10.32
16	WPB8381501		Gasket, Drain   (Replaces: B8381501)				$ 7.00
17	W11661208		Cover, Thermistor   (Replaces: W10405166)				$ 20.95
18	W10668165		Gasket, Dual Evaporator   (Replaces: W10531268)		Appelez-nous	-
19	W11724692		Thermistor   (Replaces: W10280385)			Immediately	$ 30.24
