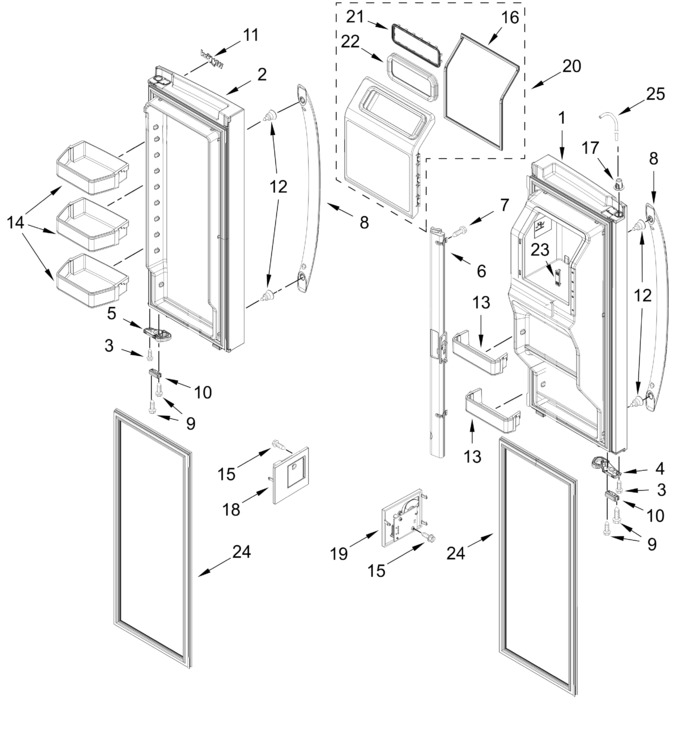

WRF757SDHV08 | The Brick : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	W11518735	Left Door Assembly (black Stainless, Includes Door Gasket) (Replaces: W11405219)			$ 1,019.98
2	W11104459	Right Door Assembly (black Stainless, Includes Door Gasket) (Replaces: W11036468)			$ 863.96
3	WPW10238319	Screw (Replaces: W10238319)			$ 7.18
4	W10904595	Latch, Door Closer (left Hand) (Replaces: W10712952)			$ 16.24
5	W11212164	Latch, Door Closer (right Hand) (Replaces: W10712953)			$ 15.83
6	W10698196	Mullion, Door (black)			$ 130.55
7	W11311945	Screw (Replaces: 12990204)			$ 13.25
8	W11125624	Handle, Door (black Stainless) (Replaces: W11101972)			$ 171.40
9	WP98165	Screw (Replaces: 12990504)			$ 7.71
10	W10407187	Bumper, Door (black)			$ 43.51
11	W11223753	Badge (Replaces: W10884773)		Immediately	$ 78.53
12	W11449276	Screw (Replaces: W11328753)		Immediately	$ 15.35
13	W11366475	Trivet, 2 Liter (Replaces: W10728185)		Immediately	$ 92.10
14	W11371716	Bin, Gallon (Replaces: W10728194)		Immediately	$ 150.87
15	2006254	Screw (Replaces: 12993001)			$ 12.41
16	W11624997	Gasket, Ice Compartment Door (Replaces: W10347085)			$ 62.47
17	W11315302	Clip, Tube	Appelez-nous	-
18	W11751996	Board And Cover Assembly, Emitter (Replaces: W11554030)			$ 296.07
19	W11751997	Board And Cover Assembly, Receiver (Replaces: W11554032)			$ 296.07
20	W11171728	Door Assembly, Ice (Replaces: W10549592)			$ 194.80
21	WPW10400825	Retainer, Ice Chute (Replaces: W10400825)			$ 29.09
22	WPW10347087	Gasket, Ice Chute (Replaces: W10347087)			$ 44.07
23	W11684620	Vent, Thermistor (Replaces: W10646855)		Immediately	$ 20.84
24	W10861004	Gasket, Door (black) (Replaces: W10873939)			$ 298.05
25	WPW10499015	Tube, Water (Replaces: W10499015)			$ 115.89
