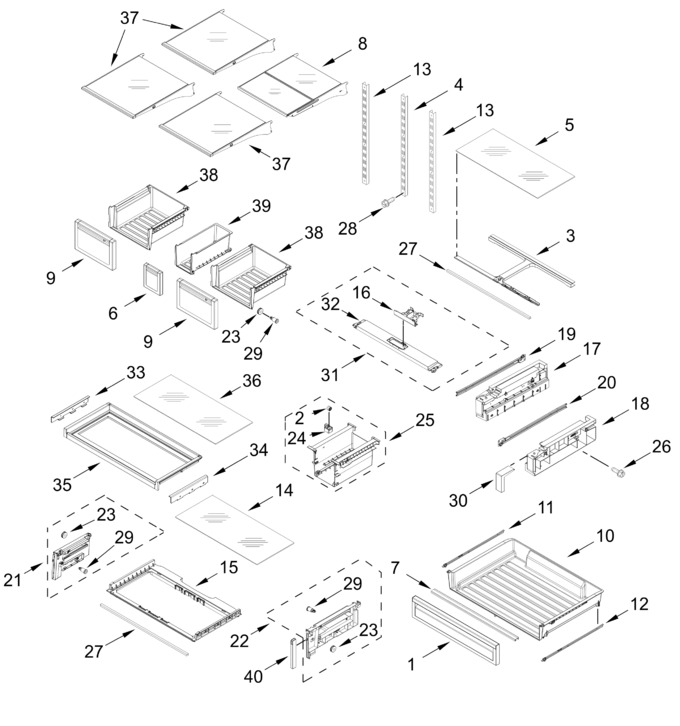

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10510417		Front, Pantry   (Replaces: W10510417)				$ 95.04
2	W10248789		Roller, Crisper Support (center)				$ 17.43
3	W11224265		Support, Pantry   (Replaces: W11124673)				$ 142.71
4	WPW10248516		Ladder, Center   (Replaces: W10248516)				$ 32.30
5	W11092486		Glass, Pantry   (Replaces: W10893769)				$ 226.74
6	W11218695		Front Assembly, Small Crisper   (Replaces: W10423520)				$ 292.80
7	W10398002		Handle, Pantry				$ 107.73
8	WPW10709175		Shelf Assembly, Tuck   (Replaces: W10709175)				$ 294.98
9	WPW10688114		Front Assembly, Crisper   (Replaces: W10688114)			Immediately	$ 158.75
10	WPW10654844		Pan, Pantry   (Replaces: W10498901)			Immediately	$ 135.50
11	W10508330		Roller Runner, Pantry Pan (left Hand)		Appelez-nous	-
12	W10508328		Roller Runner, Pantry Pan (right Hand)		Appelez-nous	-
13	W11690684		Ladder, Side   (Replaces: W10372170)				$ 45.56
14	W11092501		Glass, Crisper   (Replaces: W10893768)				$ 220.05
15	W11133636		Cover, Crisper		Appelez-nous	-
16	W10512596		Knob, Pantry Temperature Control		Appelez-nous	-
17	WPW10498906		Sideplate, Pantry (left Hand)   (Replaces: W10498906)				$ 118.84
18	W11225684		Sideplate, Pantry (right Hand)   (Replaces: W11124810)				$ 89.07
19	W10508327		Slide, Pantry (left Hand)				$ 270.96
20	W10508326		Slide, Pantry (right Hand)				$ 280.33
21	W11763411		Sideplate, Crisper (left Hand)   (Replaces: W11315531)				$ 58.32
22	W11759114		Sideplate, Crisper (right Hand)   (Replaces: W11315533)				$ 58.32
23	WPW10248544		Roller, Guide   (Replaces: W10248544)				$ 7.28
24	W10530314		Housing, Roller				$ 10.22
25	W10662015		Support Assembly, Center Crisper				$ 78.94
26	WP8281136		Screw   (Replaces: 8281136)				$ 6.57
27	WPW10236512		Support, Crisper Front   (Replaces: W10236512)				$ 120.65
28	W10423560		Screw		Appelez-nous	-
29	WPW10257246		Axle, Roller   (Replaces: W10257246)				$ 32.89
30	W10467416		Plate, Pantry Front				$ 34.43
31	W10554293		Cover Assembly, Pantry Front				$ 170.06
32	WPW10554285		Cover, Pantry Top   (Replaces: W10554285)				$ 153.57
33	W11133647		Rail, Platter Side (left Hand)				$ 125.60
34	W11133648		Rail, Platter Side (right Hand)				$ 125.60
35	W11549362		Shelf Assembly, Platter   (Replaces: W11409105)				$ 189.77
36	W11224589		Glass, Platter Shelf   (Replaces: W11133665)		Appelez-nous	-
37	WPW10709163		Shelf Assembly, Fixed   (Replaces: W10709163)				$ 326.93
38	W10850377		Pan, Large Crisper   (Replaces: W10387757)			Immediately	$ 123.40
39	WPW10387778		Pan, Small Crisper   (Replaces: W10387778)				$ 114.73
40	W10467415		Plate, Crisper Front				$ 65.06
