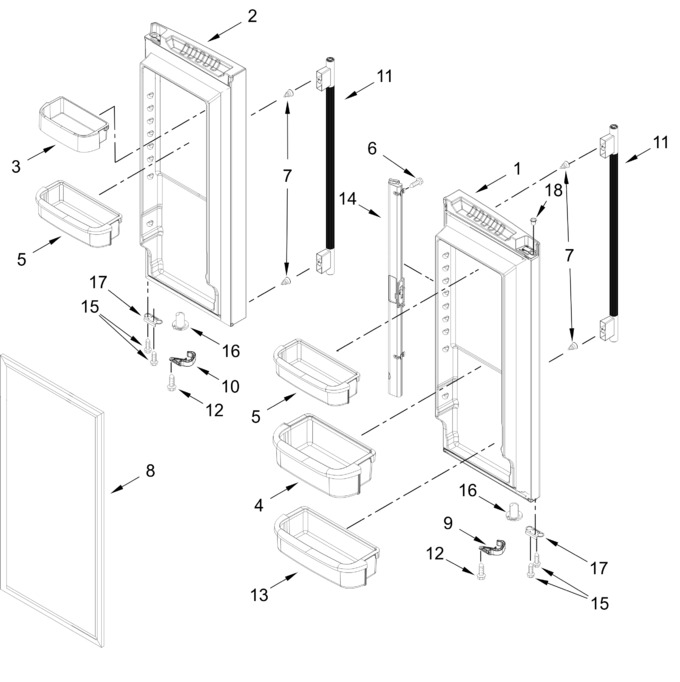

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11661556		Left Door Assembly, Stainless (includes Door Gasket)   (Replaces: W11622640)			Immediately	$ 966.71
2	W11436987		Right Door Assembly, Stainless (includes Door Gasket)   (Replaces: W11377212)				$ 792.20
3	W11808101		Bucket, Door (small)   (Replaces: W11778528)		Appelez-nous	-
4	W11808102		Bucket, Door (gallon)   (Replaces: W11778539)				$ 50.84
5	W11808095		Bucket, Door (medium)   (Replaces: W11778553)				$ 52.61
6	W11311945		Screw   (Replaces: 12990204)				$ 13.25
7	W11449276		Screw   (Replaces: W11328753)			Immediately	$ 15.35
8	W10830283		Gasket, Door (grey, Left Hand)				$ 228.31
9	W10918010		Latch, Door Closer (grey, Right Hand)   (Replaces: W10833739)			Immediately	$ 15.88
10	W10918008		Latch, Door Closer (grey, Left Hand)   (Replaces: W10833741)				$ 15.88
11	W11759446		Door Handle (stainless)   (Replaces: W11682895)			Immediately	$ 128.15
12	WP67006908		Screw   (Replaces: 12990518)			Immediately	$ 7.90
13	W11808103		Bucket, Door (gallon, Clear)   (Replaces: W11778537)			Immediately	$ 52.61
14	WP12722803AP		Mullion, Door (grey)   (Replaces: 12722803APN)			Immediately	$ 170.11
15	WP98165		Screw   (Replaces: 12990504)				$ 7.71
16	WP12028505AP		Closer, Door (grey)   (Replaces: 12028505AP)			Immediately	$ 55.31
17	W11703060		Stop, Door (grey)   (Replaces: 12968202AP)				$ 13.91
18	12996601		Clip, Bushing				$ 10.05
	W10830162		Gasket, Door (grey)			Immediately	$ 223.74
	ARIC236D3C59A55E01B8A89A671E948FF57		Right Hand		Appelez-nous	-
