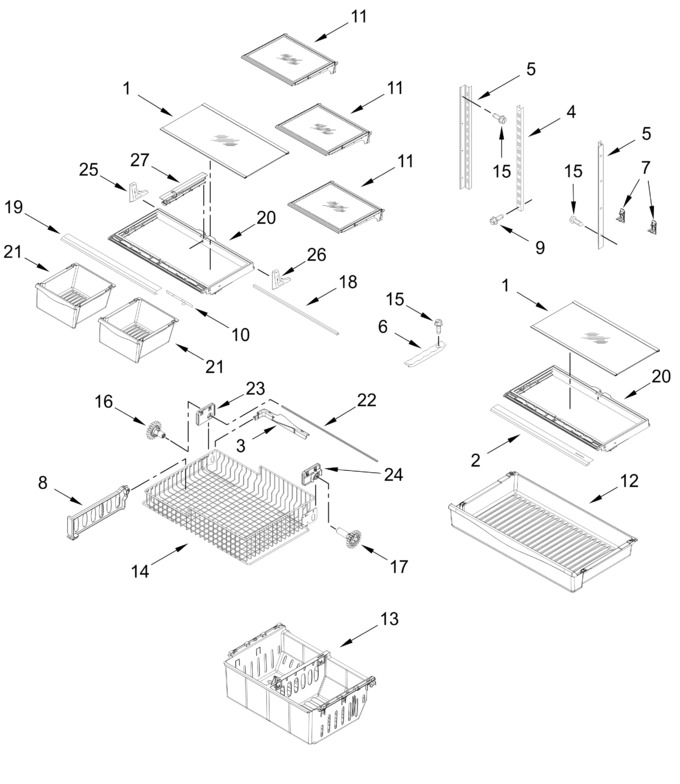

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11808097 | Glass, Crisper/pantry (Replaces: W11783350) |
|
$ 214.92 | |||||
| 2 | W10656986 | Trim, Pantry Front |
|
$ 124.12 | |||||
| 3 | W10149389 | Lift, Bail Arm (Replaces: W10149389N) |
|
$ 92.66 | |||||
| 4 | W10273463 | Ladder, Center |
|
$ 29.61 | |||||
| 5 | W10251969 | Ladder, Side |
|
$ 31.44 | |||||
| 6 | WP67001719 | Track, Deli Drawer (Replaces: 12531901) |
|
Immediately | $ 8.99 | ||||
| 7 | WP67001716 | Hook, Ladder (Replaces: 12531802) |
|
Immediately | $ 11.14 | ||||
| 8 | W10241046 | Divider, Basket (upper) |
|
Immediately | $ 29.19 | ||||
| 9 | W10215666 | Screw |
|
$ 9.53 | |||||
| 10 | WP67005864 | Slide, Humidity Control (Replaces: 12530805SP) |
|
Immediately | $ 8.20 | ||||
| 11 | W11808096 | Shelf, Stationary (Replaces: W11779760) |
|
- | |||||
| 12 | W11808100 | Pan, Pantry (Replaces: W11779062) |
|
$ 181.06 | |||||
| 13 | W11127323 | Bin, Lower (Replaces: W11028627) |
|
Immediately | $ 137.42 | ||||
| 14 | W11281084 | Basket, Freezer (upper) (Replaces: W11115252) |
|
- | |||||
| 15 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 7.30 | ||||
| 16 | WPW10474716 | Gear, Spur (left Hand) (Replaces: W10474716) |
|
Immediately | $ 32.42 | ||||
| 17 | WPW10474715 | Gear, Spur (right Hand) (Replaces: W10474715) |
|
Immediately | $ 32.76 | ||||
| 18 | WP12227303WD | Brace, Crisper Cover (Replaces: 12227303WD) |
|
$ 111.25 | |||||
| 19 | WPW10231343 | Trim, Crisper (Replaces: W10231343) |
|
Immediately | $ 99.65 | ||||
| 20 | W10858393 | Frame, Crisper (Replaces: W10671241) |
|
Immediately | $ 164.24 | ||||
| 21 | W11808098 | Pan, Crisper (Replaces: W11779060) |
|
$ 85.05 | |||||
| 22 | W11715937 | Shaft, Rack (Replaces: W10802331) |
|
$ 68.69 | |||||
| 23 | W10348259 | Mount, Gear (left Hand) |
|
$ 89.87 | |||||
| 24 | W10348260 | Mount, Gear (right Hand) |
|
$ 89.90 | |||||
| 25 | WP67001721 | Support, Pantry (left Hand) (Replaces: 12531001) |
|
Immediately | $ 8.70 | ||||
| 26 | WP67001722 | Support, Pantry (right Hand) (Replaces: 12531002) |
|
Immediately | $ 8.93 | ||||
| 27 | WPW10671238 | Rail, Center Crisper (Replaces: W10671238) |
|
Immediately | $ 118.46 |
