View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
Cabinet Parts
Freezer Door Parts
Freezer Liner And Icemaker Parts
Optional Parts
Refrigerator Door Parts
Refrigerator Liner Parts
Shelf Parts
Unit Parts
SELECT A DIAGRAM
New Model Search:

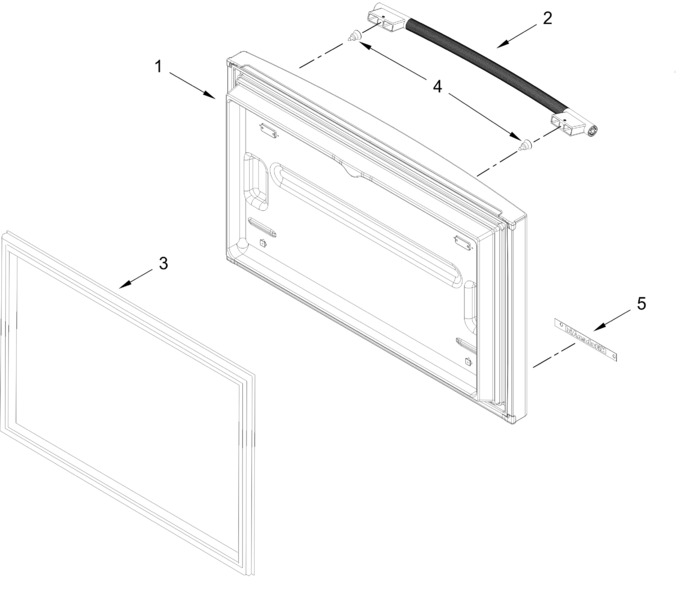

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11436983 | Freezer Door Assembly, Stainless (includes Door Gasket) (Replaces: W11377216) |
|
$ 791.94 | |||||
| 2 | W11808105 | Handle, Door (stainless) (Replaces: W11776934) |
|
- | |||||
| 3 | W10443316 | Gasket, Door (grey) |
|
Immediately | $ 218.31 | ||||
| 4 | W11449276 | Screw (Replaces: W11328753) |
|
Immediately | $ 15.35 | ||||
| 5 | W11759445 | Badge (smoked Chrome) (Replaces: W11688412) |
|
Immediately | $ 45.29 |
