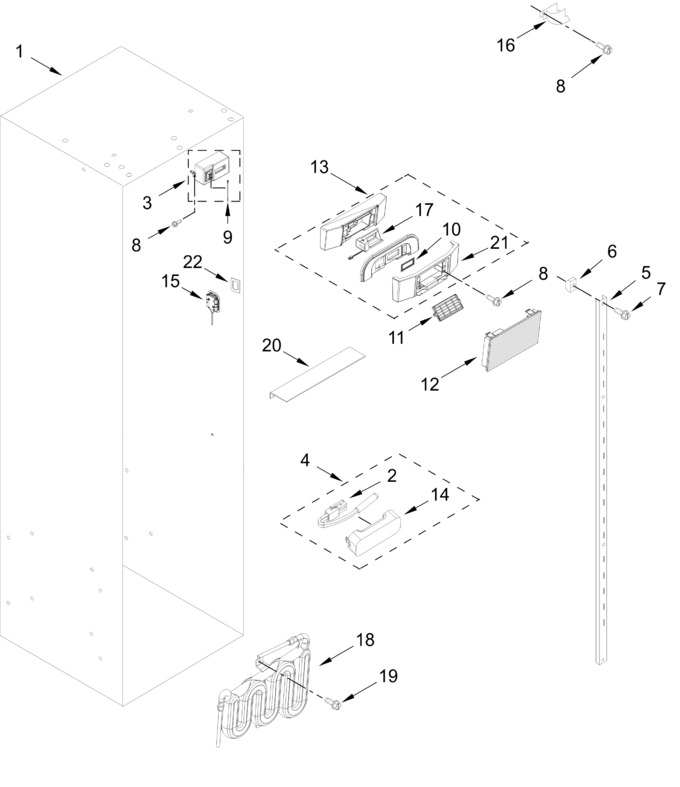

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI1BA464D72C84DA7297AB1B09D16F5BB3		Liner (not A Serviceable Part)		Appelez-nous	-
2	WP2188820		Thermistor   (Replaces: 2188820)			Immediately	$ 30.85
3	W11744513		Cover, Air Diffuser (includes Thermistor)   (Replaces: W11447197)				$ 130.58
4	W11759117		Thermistor Assembly   (Replaces: W11550867)			Immediately	$ 45.05
5	W11481489		Ladder, Shelf		Appelez-nous	-
6	520965		Support, Ladder				$ 31.35
7	W10678207		Screw   (Replaces: W10832438)				$ 16.43
8	W10678210		Screw (black)				$ 19.80
9	WP2302937		Thermistor   (Replaces: 2302937)				$ 88.41
10	W11480891		Gasket, Air Baffle				$ 30.11
11	W10311524		Filter, Air   (Replaces: W10315189)			Immediately	$ 14.34
12	W11480887		Cover, Diffuser (center)		Appelez-nous	-
13	W11741459		Diffuser Assembly   (Replaces: W11449567)				$ 415.21
14	W11235125		Cover, Thermistor   (Replaces: W10912104)				$ 108.10
15	W11484836		Light Module, Led   (Replaces: W11229041)			Immediately	$ 27.01
16	W10775705		Guard, Air Return		Appelez-nous	-
17	WP2220377		Baffle, Air   (Replaces: 2220377)			Immediately	$ 381.05
18	W11825825		Reservoir, Water   (Replaces: W11463083)				$ 139.14
19	W10141518		Screw				$ 9.54
20	W10782834		Diverter, Crisper Cover			Immediately	$ 65.18
21	W11449561		Cover, Air Diffuser		Appelez-nous	-
22	W10672548		Shim, Led				$ 21.11
