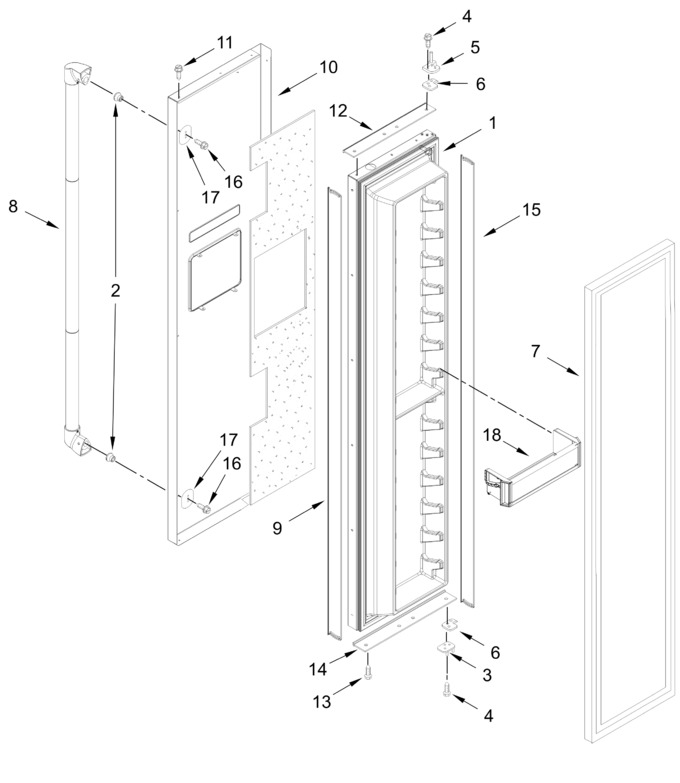

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11832391		Door, Freezer   (Replaces: W11502203)				$ 1,085.45
2	W11631830		Stud, Handle Mounting   (Replaces: W11564087)				$ 12.80
3	W11752085		Hinge Assembly, Bottom   (Replaces: 2302879)				$ 63.07
4	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 8.63
5	W11673500		Hinge Assembly, Top   (Replaces: W10485980)			Immediately	$ 130.37
6	W11673500		Spacer, Door Hinge   (Replaces: 2316804)			Immediately	$ 130.37
7	W10800817		Gasket, Door (black)   (Replaces: W10776011)			Immediately	$ 349.09
8	W11358123		Handle, Door (stainless)		Appelez-nous	-
9	W10758377		Spacer, Handle Side Door				$ 109.79
10	W11633383		Skin, Fc Door (stainless)   (Replaces: W11441141)				$ 1,484.85
11	W11748041		Screw (stainless)   (Replaces: W11672062)		Appelez-nous	-
12	W10758115		Spacer, Door Skin (top)		Appelez-nous	-
13	W10759522		Screw (stainless)   (Replaces: 488568)				$ 8.24
14	W10758142		Spacer, Door Skin (bottom)				$ 55.47
15	W10758378		Spacer, Hinge Side Door		Appelez-nous	-
16	WP308544		Screw   (Replaces: 308544)			Immediately	$ 8.30
17	W10127710		Plate, Handle Door			Immediately	$ 25.94
18	W11450392		Bin, Fc Shallow Door				$ 402.26
	ARI6FD09EDD6DAEBF9F7D7F7CCBDD66D351		Filler (not Serviced-included With Skin)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
