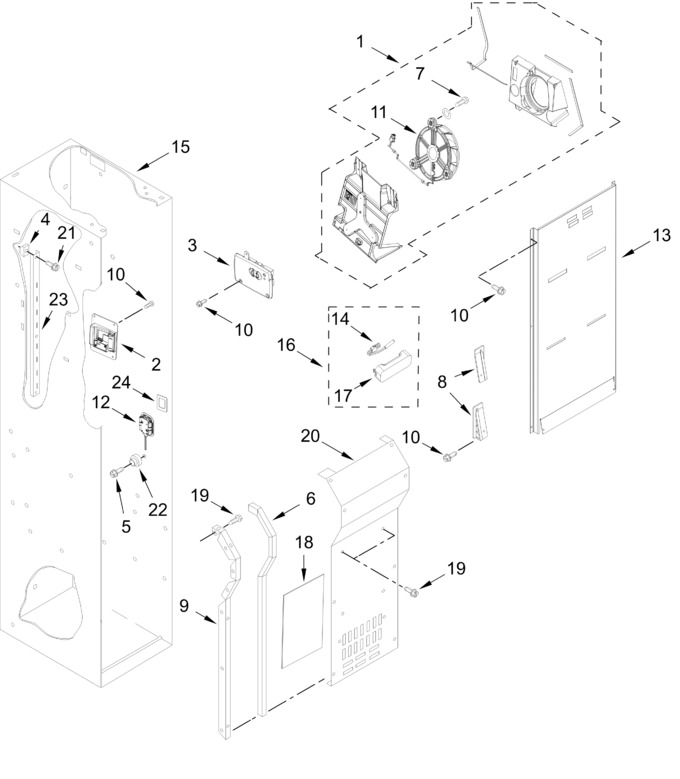

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11631623		Fan Assembly, Evaporator   (Replaces: W11437865)				$ 327.40
2	W11751969		Control Board, Emitter   (Replaces: W11685705)				$ 304.92
3	W11737647		Control Board, Receiver   (Replaces: W11685704)				$ 301.05
4	520965		Support, Ladder				$ 31.35
5	W10784949		Screw (black)				$ 11.41
6	W11467832		Gasket, Evaporator Cover				$ 26.94
7	WP488729		Screw (stainless)   (Replaces: 487539)			Immediately	$ 8.28
8	W10769280		Wedge, Air Duct (left Hand)		Appelez-nous	-
9	W11756941		Rail, Evaporator Cover (left Hand)   (Replaces: W11695307)		Appelez-nous	-
10	WP98008545		Screw (black)   (Replaces: W10308487)				$ 18.60
11	W11618271		Fan, Evaporator   (Replaces: W11544700)			Immediately	$ 232.03
12	W11484836		Light Module, Led   (Replaces: W11229041)			Immediately	$ 27.01
13	W11751992		Duct, Air   (Replaces: W11712785)		Appelez-nous	-
14	WP2188820		Thermistor   (Replaces: 2188820)			Immediately	$ 30.85
15	ARI1BA464D72C84DA7297AB1B09D16F5BB3		Liner (not A Serviceable Part)		Appelez-nous	-
16	W11759117		Thermistor Assembly   (Replaces: W11550867)			Immediately	$ 45.05
17	W11235125		Cover, Thermistor   (Replaces: W10912104)				$ 108.10
18	W11747987		Gasket, Fc Evaporator Bypass   (Replaces: W11678119)		Appelez-nous	-
19	W10678210		Screw (black)				$ 19.80
20	W11756949		Cover, Evaporator   (Replaces: W11460631)		Appelez-nous	-
21	W10678207		Screw   (Replaces: W10832438)				$ 16.43
22	W10789219		Stud Assembly, Shelf (gray, Includes Screw)				$ 25.43
23	W11481486		Ladder, Shelf		Appelez-nous	-
24	W10672548		Shim, Led				$ 21.11
	W11756942		Rail, Evaporator Cover (right Hand)   (Replaces: W11695308)		Appelez-nous	-
	W10769279		Wedge, Air Duct (right Hand)		Appelez-nous	-
