Diagram for Cabinet Parts
Cabinet Parts

Diagram for Dispenser Front Parts
Dispenser Front Parts

Diagram for Freezer Door Parts
Freezer Door Parts

Diagram for Freezer Liner Parts
Freezer Liner Parts

Diagram for Icemaker And Ice Container Parts
Icemaker And Ice Container Parts

No Diagram Image Available
Optional Parts

Diagram for Refrigerator Door Parts
Refrigerator Door Parts

Diagram for Refrigerator Liner Parts
Refrigerator Liner Parts

Diagram for Shelf Parts
Shelf Parts

Diagram for Unit Parts
Unit Parts


New Model Search:


1-844-510-2000
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 ARI4741983F61CAC445F12C0C1FD1B613C1 Literature Parts Appelez-nous -
2 W11415785 Tube, Water   (Replaces: W11232485) In-Stock Immediately $ 75.71

3 WP67003405 Plate, Pivot   (Replaces: 12698403) In-Stock Immediately $ 8.21

4 W11534848 Gasket, Unit Cover In-Stock Immediately $ 22.34

5 WPW10337648 Cover, Top Hinge (grey, Left Hand, Includes Foil)   (Replaces: W10337648) Special Order $ 23.12

6 WPW10191117 Cover, Top Hinge (grey, Right Hand)   (Replaces: 12962302AP) Special Order $ 23.05

7 12961602 Cover, Control Box Special Order $ 116.19

8 W11456069 Clamp, Tube   (Replaces: M0108107) In-Stock Immediately $ 22.40

9 WP8281196 Screw   (Replaces: 12992602) In-Stock Immediately $ 7.55

10 W11592375 Hinge, Top (left Hand)   (Replaces: W11456626) Special Order $ 31.92

11 W11592374 Hinge, Top (right Hand)   (Replaces: W11456625) In-Stock Immediately $ 31.90

12 W11686675 Screw   (Replaces: 12990702) Special Order $ 14.27

13 WPW10141622 Brake, Roller   (Replaces: W10141622) In-Stock Immediately $ 8.24

14 WP489349 Screw   (Replaces: 12992403) In-Stock Immediately $ 8.43

15 W11642008 Hinge, Center (left Hand)   (Replaces: W11610757) Special Order $ 24.35

16 W11642010 Hinge, Center (right Hand)   (Replaces: W11610758) Special Order $ 24.47

17 WP12587703AP Cover, Corner (grey)   (Replaces: 12587703AP) Special Order $ 8.07

18 W10914798 Gasket, Control Box Appelez-nous -
19 W11548534 Control, Electronic   (Replaces: W11454964) In-Stock Immediately $ 352.62

20 67006564 Screw   (Replaces: W10709365) In-Stock Immediately $ 8.15

21 12999501 Shim, Top Hinge (left Hand) Special Order $ 99.53

22 12999502 Shim, Top Hinge (right Hand) Special Order $ 100.60

23 W11226688 Lid, Hv Control Box   (Replaces: W10296541) Special Order $ 85.16

24 W11686793 Block, Fill Tube   (Replaces: W11651067) Special Order $ 23.57

25 W10191141 Cover, Fill Tube (grey)   (Replaces: 12981401AP) Special Order $ 15.06

26 ARI94342C74144DD1D8059B1C42D7D53A15 Cabinet (not A Servicable Part) Appelez-nous -
27 W11820444 Roller Assembly (left Hand)   (Replaces: W10515763) In-Stock Immediately $ 37.35

28 W11820445 Roller Assembly (right Hand)   (Replaces: W10515762) In-Stock Immediately $ 37.35

29 WPW10270394 Cover, Unit   (Replaces: W10270394) Special Order $ 208.73

30 W11573362 Screw (stainless)   (Replaces: W10673840) Special Order $ 14.72

31 WPW10534155 Grille, Toe (grey)   (Replaces: W10534155) In-Stock Immediately $ 119.56

32 W11693756 Screw   (Replaces: 688983) In-Stock Immediately $ 14.76

W11798740 Owners Manual Appelez-nous -
W11798617 Energy Guide Appelez-nous -
W11665550 Tech Sheet Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

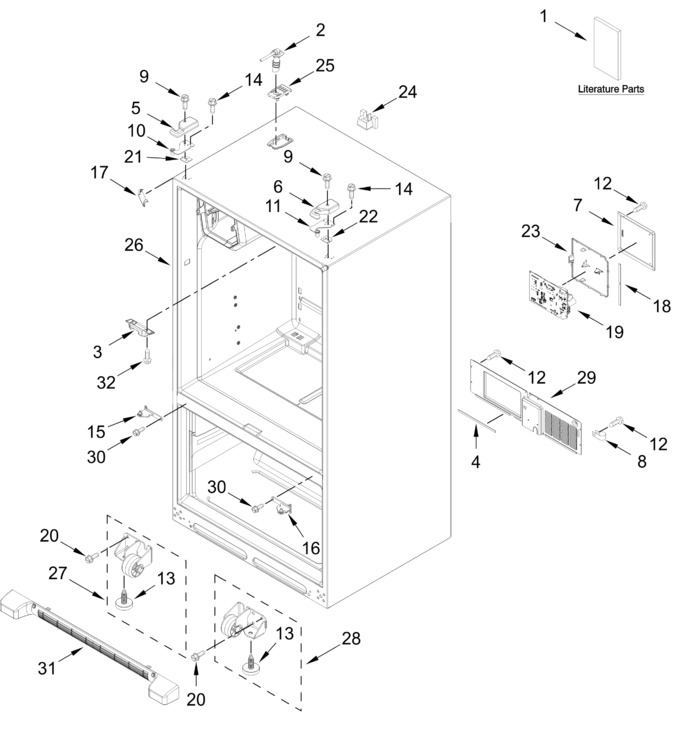

Diagram for CRFHW256SZ00
