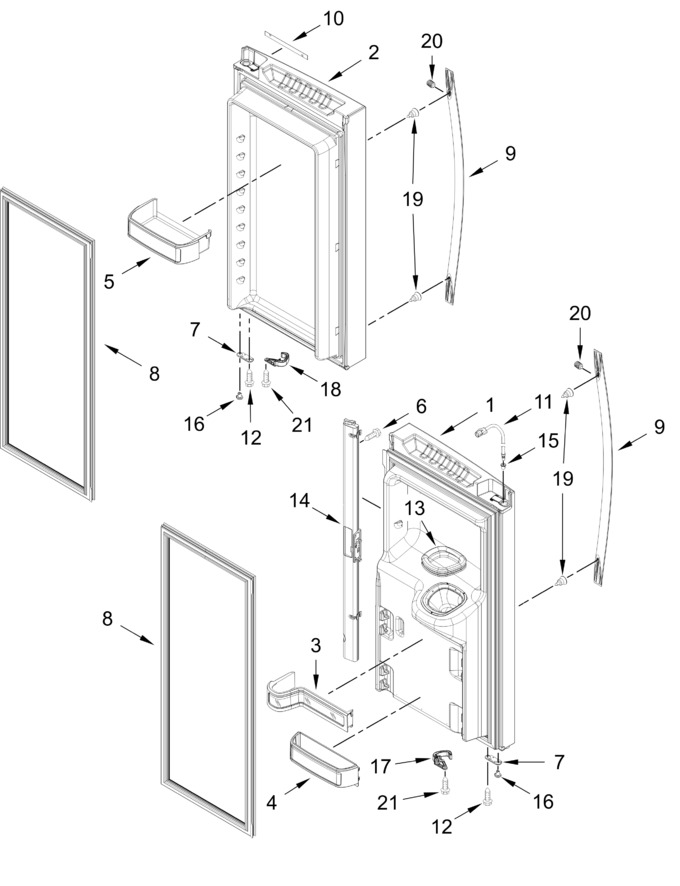

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11435344		Left Door Assembly (stainless)   (Replaces: W11377225)				$ 1,086.04
2	W11435343		Right Door Assembly (stainless)   (Replaces: W11377230)				$ 1,069.94
3	W11749487		Bucket, Lh Upper   (Replaces: W11698403)		Appelez-nous	-
4	W11749338		Bucket, Small   (Replaces: W11698402)				$ 66.53
5	W11749336		Bucket, Gallon   (Replaces: W11698404)				$ 67.33
6	W11311945		Screw   (Replaces: 12990204)				$ 14.72
7	W11703060		Stop, Door (grey)   (Replaces: 12968202AP)				$ 15.46
8	W10830055		Gasket, Door (grey)			Immediately	$ 283.65
9	W11163764		Door Handle (stainless)   (Replaces: W11045530)			Immediately	$ 183.31
10	W11815393		Badge, Crosley   (Replaces: W11791047)		Appelez-nous	-
11	W11677733		Waterline, Door   (Replaces: W11431179)				$ 85.79
12	WP98165		Screw   (Replaces: 12990521)				$ 8.57
13	WPW10287601		Seal, Ice Chute   (Replaces: W10287601)			Immediately	$ 32.76
14	WP12722815AP		Mullion, Door (grey)   (Replaces: 12722815AP)				$ 338.01
15	12996601		Clip, Bushing				$ 10.05
16	WP12028505AP		Closer, Door (grey)   (Replaces: 12028505AP)			Immediately	$ 61.46
17	W10918008		Latch, Door Closer (grey, Left Hand)   (Replaces: W10833741)				$ 17.64
18	W10918010		Latch, Door Closer (grey, Right Hand)   (Replaces: W10833739)			Immediately	$ 17.64
19	W11449276		Screw   (Replaces: W11328753)			Immediately	$ 17.06
20	W10907991		Screw, Set   (Replaces: W10693137)				$ 7.55
21	WP67006908		Screw   (Replaces: 12990518)			Immediately	$ 8.78
