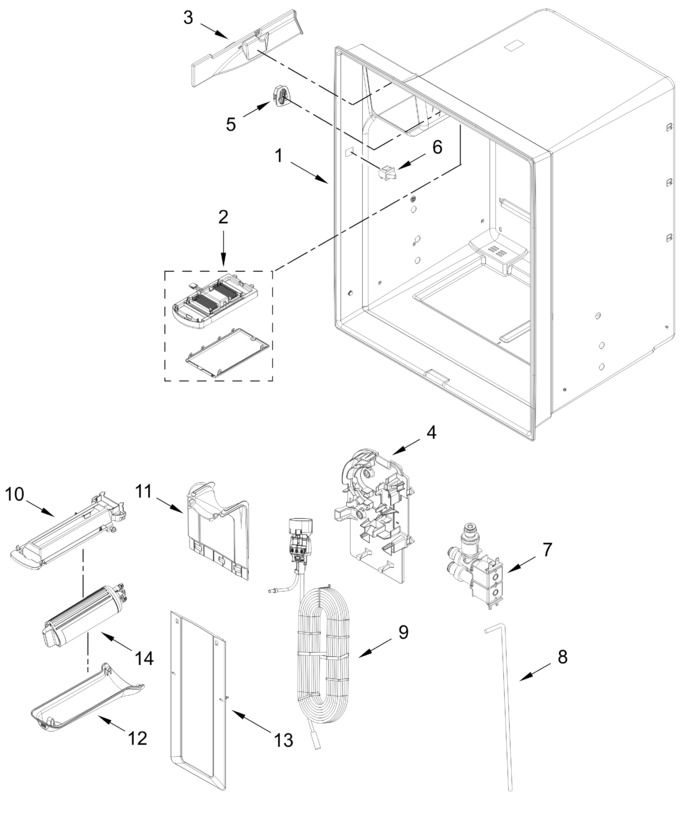

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI1BA464D72C84DA7297AB1B09D16F5BB3		Liner (not A Serviceable Part)		Appelez-nous	-
2	W11527432		Light Assembly, Upper (includes Led Module And Lens)   (Replaces: W11387579)			Immediately	$ 140.67
3	WPW10309869		Cover, Wiring   (Replaces: W10309869)				$ 114.65
4	WPW10334463		Bracket, Water Tank And Valve   (Replaces: W10334463)				$ 62.69
5	W10555984		Grille Assembly, Air (includes Damper Seal)			Immediately	$ 42.09
6	W11396033		Switch, Light   (Replaces: W10847849)			Immediately	$ 37.30
7	W11548535		Valve, Water Inlet   (Replaces: W11446814)			Immediately	$ 85.52
8	W11666461		Tube, Water   (Replaces: W11518277)				$ 88.38
9	W11706229		Water Tank And Manifold Assembly   (Replaces: W11519216)				$ 184.81
10	W11706281		Bracket, Filter Base   (Replaces: W11510659)				$ 36.36
11	W11706278		Cover, Upper Water Tank   (Replaces: W11513126)		Appelez-nous	-
12	W11706279		Cover, Filter   (Replaces: W11510661)				$ 106.53
13	W11565236		Cover, Lower Water Tank				$ 60.34
14	EDRARXD1B		Water Filter   (Replaces: W11536439)			Immediately	$ 49.99
