SELECT A DIAGRAM

Diagram for Cabinet Parts
Cabinet Parts

Diagram for Cabinet Trim Parts
Cabinet Trim Parts

Diagram for Freezer Door And Basket Parts
Freezer Door And Basket Parts

Diagram for Freezer Liner And Icemaker Parts
Freezer Liner And Icemaker Parts

Diagram for Lower Unit And Tube Parts
Lower Unit And Tube Parts

No Diagram Image Available
Optional Parts

Diagram for Refrigerator Door Parts
Refrigerator Door Parts

Diagram for Refrigerator Liner Parts
Refrigerator Liner Parts

Diagram for Shelf Parts
Shelf Parts

Diagram for Top Grille And Unit Cover Parts
Top Grille And Unit Cover Parts

Diagram for Upper Unit Parts
Upper Unit Parts


New Model Search:


1-844-510-2000
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 ARIF06CCFE9BD0F0FDB975806FEDA58D816 Cabinet (not Serviced) Appelez-nous -
2 WP1106508 Gasket, Seal   (Replaces: 1106508) In-Stock Immediately $ 10.43

3 2307584 Grommet, Crossover Tube Special Order $ 23.40

4 WPW10138054 Roller Assembly   (Replaces: W10138054) Special Order $ 45.34

5 W10860229 Base Assembly, Support (fc, Left Hand)   (Replaces: W10279275) Special Order $ 381.83

6 WP1163283 Screw   (Replaces: 1163283) Special Order $ 7.55

7 W10740131 Wire, Top Switch Jumper Special Order $ 128.84

8 WP489464 Screw   (Replaces: W10001250) In-Stock Immediately $ 8.38

9 W10839844 Bracket, Grill Mounting   (Replaces: 2307640) Special Order $ 43.26

10 W10663352 Clip Special Order $ 21.91

11 W11474472 Screw   (Replaces: W10162602) In-Stock Immediately $ 8.63

12 W11830701 Waterline, Customer Connect   (Replaces: W11783381) Appelez-nous -
13 W11291510 Tube Assembly, Drain Special Order $ 76.97

14 2006841 Ring, Retainer Special Order $ 92.66

15 W10635851 Tube, Filter Outlet Special Order $ 88.57

16 2005032 Leveler, Adjustable In-Stock Immediately $ 200.07

17 2318189 Tray, Filter Drip Special Order $ 148.73

18 W11826025 Top Hinge Assembly (left Hand)   (Replaces: W11788257) Appelez-nous -
19 W11830700 Valve Bracket   (Replaces: W11782184) Appelez-nous -
20 W11826104 Installation Block   (Replaces: W11805383) Appelez-nous -
21 2006617 Bracket, Base Support (rear) Appelez-nous -
22 W11225845 Valve, Solenoid   (Replaces: W10574769) In-Stock Immediately $ 198.88

23 WPW10121140 Housing, Water Filter   (Replaces: W10121140) In-Stock Immediately $ 270.85

24 W10291661 Spacer, Hinge Special Order $ 16.87

25 W11624204 Screw   (Replaces: 486194) Special Order $ 14.72

26 W10121145 Filter, Water Appelez-nous -
27 2320559 Support, Valve Special Order $ 88.79

28 W11755873 Bracket, Filter   (Replaces: W11695780) Special Order $ 80.33

29 W11826026 Bottom Door Hinge   (Replaces: W11788259) Appelez-nous -
30 WP8533928 Screw   (Replaces: 8533928) In-Stock Immediately $ 8.26

31 WP2260503B Button, Water Filter (black)   (Replaces: 2260503B) Special Order $ 76.42

32 WPW10188549 Skirt, Grille (black)   (Replaces: W10188549) Special Order $ 144.20

33 WP489464 Screw   (Replaces: W10005050) In-Stock Immediately $ 8.38

34 W11739146 Grille, Bottom   (Replaces: W11695786) Special Order $ 212.66

35 2215612 Cover, Air Duct Appelez-nous -
36 W11826108 Upper Cabinet Trim (silver, Left Side)   (Replaces: W11788282) Appelez-nous -
37 W11826109 Lower Cabinet Trim (silver, Left Side)   (Replaces: W11788291) Appelez-nous -
38 W11826028 Switch Cover (left/right)   (Replaces: W11813708) Appelez-nous -
39 W11238395 Cap, Water Filter (black)   (Replaces: W10797527) In-Stock Immediately $ 50.68

40 W11721628 Screw   (Replaces: W11370632) In-Stock Immediately $ 14.78

41 W11826027 Rocker Switch   (Replaces: W11790436) Appelez-nous -
42 W11676611 Locking Ring (1/4)   (Replaces: W11175632) Special Order $ 14.89

43 W10833902 Clamp, Tube   (Replaces: 2221070) Special Order $ 11.54

44 WPW10142233 Screw   (Replaces: W10142233) Special Order $ 8.93

45 W11777559 Bracket, Install (bottom)   (Replaces: W11767018) Appelez-nous -
46 2005433 Spacer, Door Skin (top) Special Order $ 23.33

47 WP9741232 Screw   (Replaces: 9741232) In-Stock Immediately $ 5.07

48 WP2221240 Heater, Fill Tube   (Replaces: 2221240) Special Order $ 206.58

49 W10482373 Wire Assembly, Fill Tube Heater Special Order $ 125.10

50 W11833015 Trim, Grille Top   (Replaces: W11788313) Appelez-nous -
51 2317847 Tube Assembly, Water Inlet Special Order $ 86.35

52 W10619291 Shield, Valve Electrical Appelez-nous -
53 WPW10141604 Screw   (Replaces: 487871) Special Order $ 8.85

54 W11830698 Wire Assembly, Water Valve   (Replaces: W11787782) Appelez-nous -
55 W11826102 Door Arm Insert (top)   (Replaces: W11788316) Appelez-nous -
56 W11826103 Door Arm Insert (bottom)   (Replaces: W11788320) Appelez-nous -
W11826024 Top Hinge Assembly (right Hand)   (Replaces: W11788258) Special Order $ 509.51

ARI7C4B781E09F4C135E8A56A812FBF5A4D Following Parts Not Illustrated Appelez-nous -
W11678575 Locking Ring (5/16)   (Replaces: W11175631) Special Order $ 14.90

W11826107 Lower Cabinet Trim (silver, Right Side)   (Replaces: W11788286) Appelez-nous -
W11845358 Template Panels Bir Fdbm 42   (Replaces: W11807113) Appelez-nous -
W11826106 Upper Cabinet Trim (silver, Right Side)   (Replaces: W11788284) Appelez-nous -
W10860448 Base Assembly, Support (rc, Right Hand)   (Replaces: W10138423) In-Stock Immediately $ 383.00

W11845356 Template Grille Bir   (Replaces: W11807111) Appelez-nous -
W11826101 Panel Installation Kit   (Replaces: W11797883) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

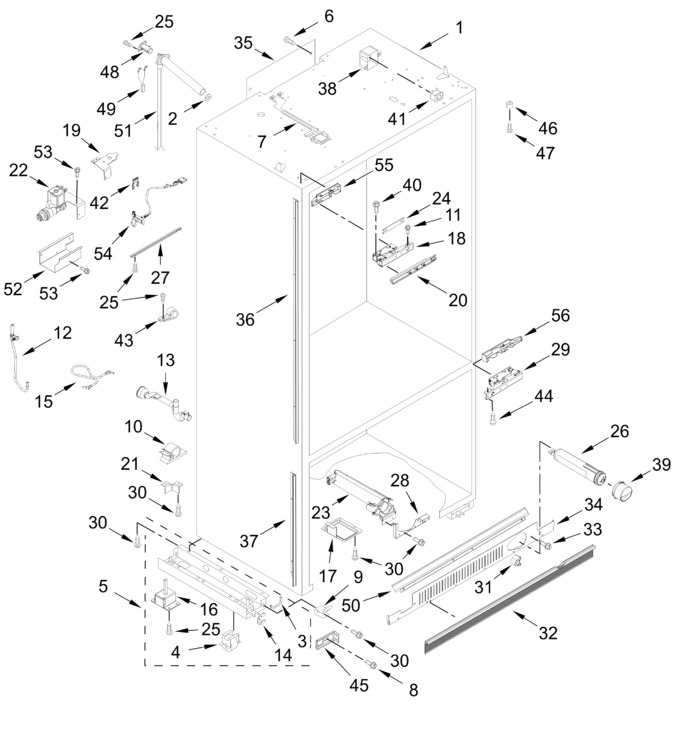

Diagram for KBFN542TPA00
