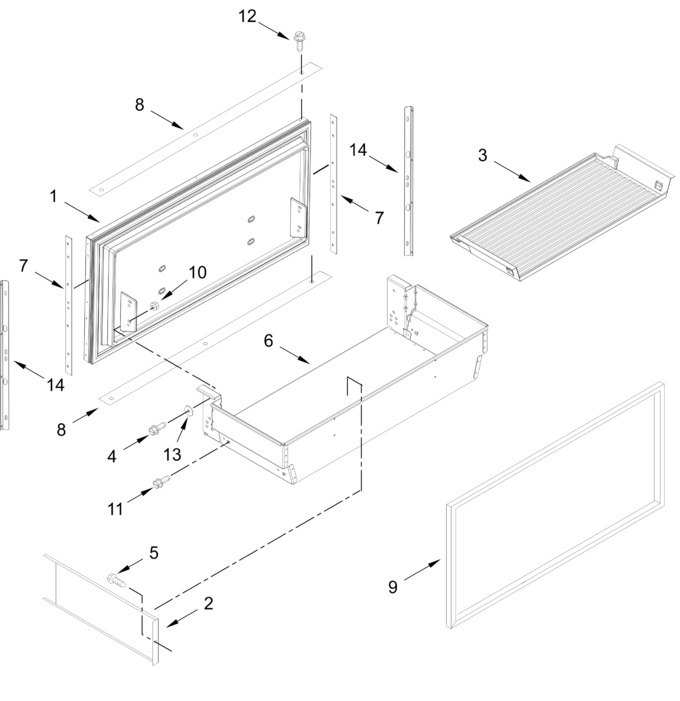

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11788274		Freezer Door Assembly (includes Door Gasket)		Appelez-nous	-
2	W10600711		Divider, Basket		Appelez-nous	-
3	W10665413		Mat, Freezer Basket (grey)				$ 255.29
4	W10761334		Screw				$ 11.70
5	WP488234		Screw   (Replaces: W10135792)				$ 6.37
6	W10770921		Basket Assembly, Freezer		Appelez-nous	-
7	W11833560		Door Trim, Side   (Replaces: W11788343)		Appelez-nous	-
8	W11833559		Door Trim, Top/bottom   (Replaces: W11788337)		Appelez-nous	-
9	W10803138		Gasket, Door (grey)   (Replaces: W10600725)				$ 314.37
10	W10771111		Nut			Immediately	$ 18.23
11	W10109030		Screw				$ 13.82
12	W11748041		Screw (stainless)   (Replaces: W11672062)		Appelez-nous	-
13	W10001190		Washer				$ 7.92
14	W11826105		Panel Mounting Bracket (fc)   (Replaces: W11788321)		Appelez-nous	-
