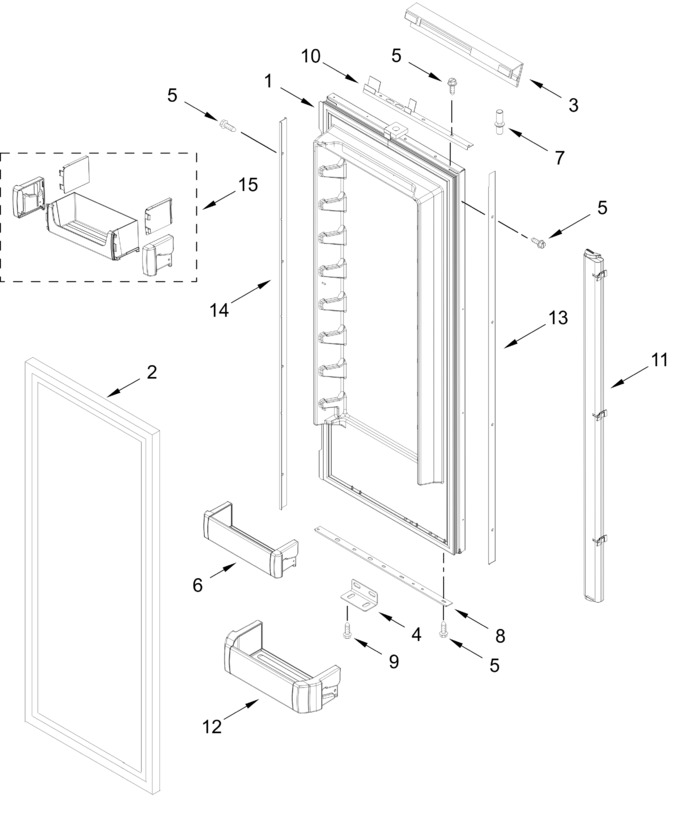

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11788273		Left Door Assembly (includes Door Gasket)		Appelez-nous	-
2	W10600741		Gasket, Door (grey)				$ 228.32
3	W11833558		Door Cover, Top (left)   (Replaces: W11788338)		Appelez-nous	-
4	W11826030		Panel Mounting Bracket   (Replaces: W11788355)		Appelez-nous	-
5	W11748041		Screw (stainless)   (Replaces: W11672062)		Appelez-nous	-
6	W10529548		Bin, Door (shallow)				$ 290.81
7	W10234194		Pin, Top Door				$ 17.66
8	W11833557		Door Trim, Bottom (left Hand)   (Replaces: W11788341)		Appelez-nous	-
9	WPW10142233		Screw   (Replaces: W10142233)				$ 8.93
10	W11833556		Door Trim, Top (left Hand)   (Replaces: W11788346)		Appelez-nous	-
11	W11812028		Mullion Assembly   (Replaces: W11590864)			Immediately	$ 243.86
12	W10529544		Bin, Door (gallon)				$ 316.01
13	W11826094		Door Trim, Handle Side (left)   (Replaces: W11788340)		Appelez-nous	-
14	W11826034		Door Trim, Hinge Side   (Replaces: W11788335)		Appelez-nous	-
15	W11610621		Bin, Top Door		Appelez-nous	-
	W11833555		Door Cover, Top (right)   (Replaces: W11788345)		Appelez-nous	-
	W11833553		Door Trim, Top (right Hand)   (Replaces: W11788347)		Appelez-nous	-
	W11833554		Door Trim, Bottom (right Hand)   (Replaces: W11788339)		Appelez-nous	-
	W11788272		Right Door Assembly (includes Door Gasket)		Appelez-nous	-
	W11826033		Door Trim, Handle Side (right)   (Replaces: W11788342)		Appelez-nous	-
