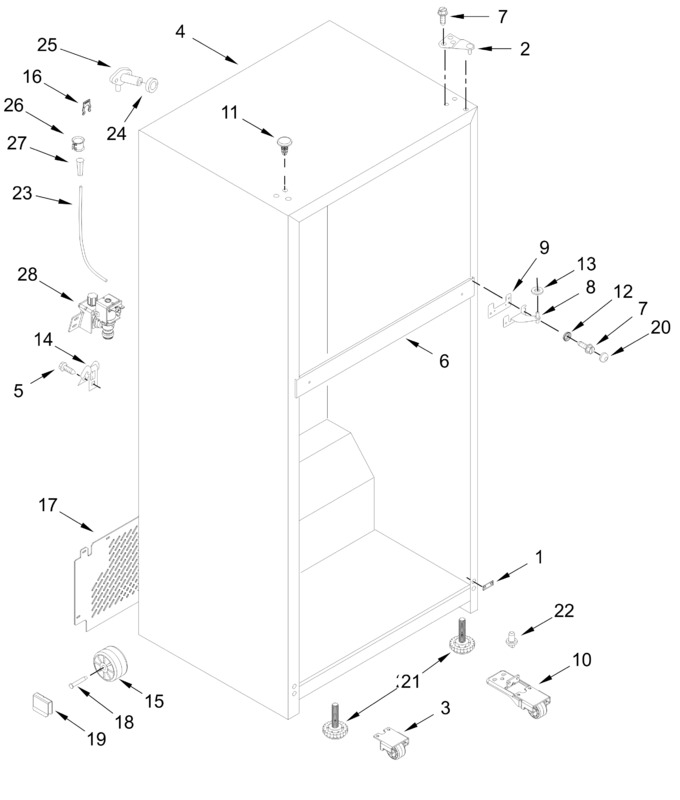

Cabinet Parts
Door Parts
Liner & Ice Maker Parts
Optional Parts
Shelf Parts
Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11528669 | Shim, Bottom Hinge (Replaces: W11359355) |
|
$ 16.89 | |||||
| 2 | WP2261963 | Hinge Assembly, Top (Replaces: 2261963) |
|
Immediately | $ 119.42 | ||||
| 3 | W11256723 | Roller Assembly (Replaces: W10842654) |
|
$ 94.94 | |||||
| 4 | ARIF06CCFE9BD0F0FDB975806FEDA58D816 | Cabinet (not Serviced) |
|
- | |||||
| 5 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 11.49 | ||||
| 6 | ARIC034192546E98BAD7D6171A40486F101 | Rail, Center (not Serviced) |
|
- | |||||
| 7 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 29.09 | ||||
| 8 | WP2254618 | Hinge, Center (Replaces: 2254618) |
|
Immediately | $ 92.02 | ||||
| 9 | WP2183852 | Shim, Hinge Center (Replaces: 2183852) |
|
$ 11.18 | |||||
| 10 | W11096015 | Lower Hinge And Roller Assembly (Replaces: W10843861) |
|
Immediately | $ 94.94 | ||||
| 11 | WPW10520307 | Plug, Hole (grey) (Replaces: W10520307) |
|
Immediately | $ 7.55 | ||||
| 12 | W10847959 | Cap, Washer Dome (Replaces: W10674773) |
|
$ 11.27 | |||||
| 13 | WP489467 | Washer, Plastic (Replaces: 489341) |
|
Immediately | $ 11.42 | ||||
| 14 | W11234470 | Clamp, Power Cord (Replaces: W11242280) |
|
$ 22.12 | |||||
| 15 | WPW10475495 | Roller, Cabinet (Replaces: W10475495) |
|
Immediately | $ 32.06 | ||||
| 16 | W11676611 | Locking Ring (1/4) (Replaces: W11175632) |
|
$ 14.89 | |||||
| 17 | W11476772 | Cover, Unit (Replaces: W11307288) |
|
$ 43.50 | |||||
| 18 | W11594405 | Axle, Roller (Replaces: 981126) |
|
Immediately | $ 19.12 | ||||
| 19 | WP2174706 | Clip, Roller (Replaces: 2174706) |
|
$ 11.53 | |||||
| 20 | W10846529 | Cap, Dome (white) (Replaces: W10674771) |
|
Immediately | $ 19.82 | ||||
| 21 | W10854419 | Leveler (Replaces: W10671258) |
|
Immediately | $ 18.02 | ||||
| 22 | W11026307 | Hinge Pin (Replaces: W10638688) |
|
Immediately | $ 77.61 | ||||
| 23 | 2003812 | Tube, Water Inlet |
|
- | |||||
| 24 | WP1106508 | Gasket, Seal (Replaces: 1106508) |
|
Immediately | $ 10.43 | ||||
| 25 | W11292468 | Fitting, Water Tube (Replaces: W11249272) |
|
Immediately | $ 163.96 | ||||
| 26 | W10861184 | Clamp, Tube (Replaces: W10329003) |
|
$ 65.90 | |||||
| 27 | 4387491 | Insert, Tube (Replaces: 2181939) |
|
$ 8.23 | |||||
| 28 | WPW10279909 | Valve, Inlet (Replaces: W10498995) |
|
$ 189.89 | |||||
| W10849198 | Cap, Dome (grey) (Replaces: W10679139) |
|
$ 19.22 |
