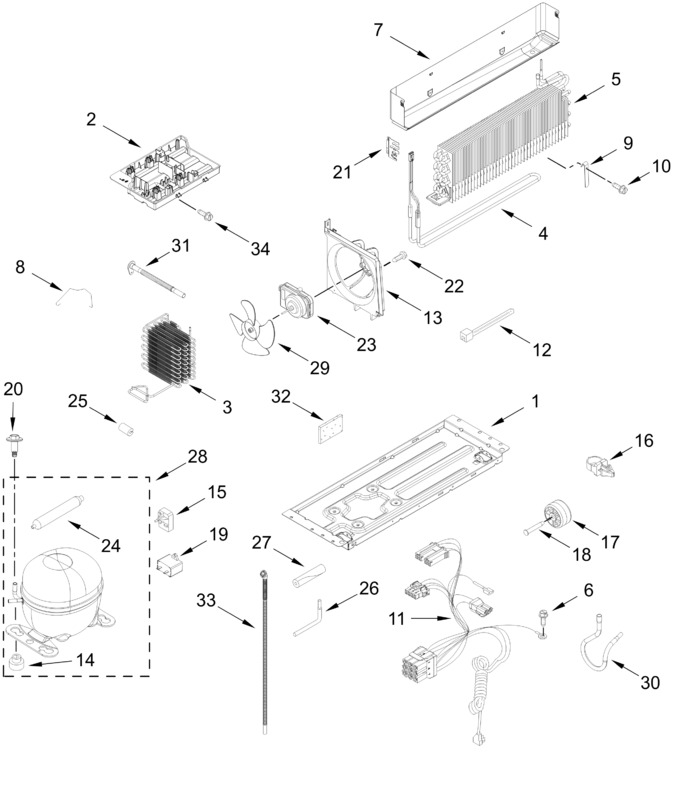

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10624648		Support Plate, Compressor				$ 91.79
2	W10633582		Tray, Evaporator				$ 84.48
3	W11803146		Condenser   (Replaces: W11783741)			Immediately	$ 199.41
4	W11562215		Heater, Defrost   (Replaces: W11340898)			Immediately	$ 80.79
5	W11562258		Evaporator Assembly   (Replaces: W11488141)			Immediately	$ 198.32
6	WPW10141604		Screw   (Replaces: W10141604)				$ 7.97
7	W11562216		Heat Shield   (Replaces: W11377819)				$ 41.90
8	W11577799		Strap, Bale   (Replaces: W11495051)		Appelez-nous	-
9	W11611126		Heat Probe   (Replaces: W11399989)				$ 20.84
10	WP489478		Screw   (Replaces: 489478)				$ 7.36
11	W11611445		Harness, Unit   (Replaces: W11238433)			Immediately	$ 73.97
12	WPW10339879		Tie, Wire   (Replaces: 2263990)				$ 7.47
13	W11736795		Bracket, Fan   (Replaces: W11438498)			Immediately	$ 64.33
14	W11678963		Grommet, Compressor   (Replaces: W10806346)				$ 7.66
15	W11547180		Start Device, Combination (start Relay And Overload)   (Replaces: W11359381)			Immediately	$ 41.31
16	2219077		Clip, Harness				$ 57.82
17	WPW10475495		Roller, Cabinet   (Replaces: W10475495)			Immediately	$ 28.85
18	W11594405		Axle, Rivet   (Replaces: 2179826)			Immediately	$ 17.21
19	WPW10662129		Capacitor   (Replaces: W10590083)			Immediately	$ 52.97
20	W11417341		Screw   (Replaces: W10476309)				$ 12.66
21	W11340313		Bracket, Evaporator				$ 67.82
22	W10829281		Screw   (Replaces: W10622701)				$ 11.95
23	W11578915		Motor, Condenser Fan   (Replaces: W11546724)			Immediately	$ 77.99
24	W11109499		Drier (service Drier Without Dye)   (Replaces: W10805035)			Immediately	$ 35.21
25	W10852725		Grommet, Condenser   (Replaces: 2319835)				$ 7.28
26	W11661102		Tube, Process   (Replaces: 2174739)				$ 27.41
27	2264838		Sleeve				$ 83.05
28	W11582592		Compressor   (Replaces: W11332034)				$ 358.55
29	W11193484		Blade, Fan   (Replaces: W10817071)			Immediately	$ 91.34
30	W11562211		Tube, Suction   (Replaces: W11361071)				$ 19.02
31	W11383479		Extension, Drain Tube			Immediately	$ 30.80
32	W11553819		Sound Insulation   (Replaces: 2215468)			Immediately	$ 13.29
33	W10633573		Tube, Drain			Immediately	$ 31.67
34	WP488729		Screw   (Replaces: 2262176)			Immediately	$ 7.45
	ARI4BCECE878077ED002DD1895197EA4975		47 Grams (r600a)		Appelez-nous	-
	W11504419		(8/7 Nr Al 00)			Immediately	$ 31.67
	ARIA203FEA88A0C0545C484B4E1C20B771B		Refrigerant Charge		Appelez-nous	-
	ARI01A2781A3F964B0DAEAA0FEA5F13BC43		(suction Line To Evaporator)		Appelez-nous	-
	ARI169E995E2DAC0D79856EDDCD3C362715		(suction Tube To Compressor)		Appelez-nous	-
	ARI9B437A9AB478C7E2DEB1C4CC29D600EE		(capillary Tube To Evaporator)		Appelez-nous	-
	W11506623		5 Nk Ms 00			Immediately	$ 19.80
	W11506619		8 Nk Ms 00			Immediately	$ 23.29
	W11504449		4/2 Nr Al 00			Immediately	$ 33.70
	W11504445		5/4 Nr Ms 00			Immediately	$ 26.03
	W11504431		7/5 Nr Ms 00			Immediately	$ 24.42
	W11504415		8.5/8 Nr Ms 00			Immediately	$ 23.30
	ARIFE05854D4243D957FF7DF90F52C3AE38		(compressor To Condenser)		Appelez-nous	-
	ARI7EAC8134DAB8FF5AAAE27020D6EE8424		(heat Loop To Condenser)		Appelez-nous	-
	ARI169C38591D7F4AD8FB3D43FAEA44FC75		(charging Tube To Compressor)		Appelez-nous	-
	W11506635		Tube, Charging (1/4 In, Includes Schrader Valve)			Immediately	$ 33.33
	ARI365422773BD6741F2B56A197441A318E		(heat Loop To Drier)		Appelez-nous	-
	ARI5DD2AEE280966FBC792DC043E4E4B750		(capillary Tube To Drier)		Appelez-nous	-
	ARIDC3909E200058FAFA59ECDE3D8CD23DE		(suction Line To Condenser)		Appelez-nous	-
	ARI500F2B538D318C1E3390E0716ECE69B7		(also Order The Following Lokring™ Parts)		Appelez-nous	-
