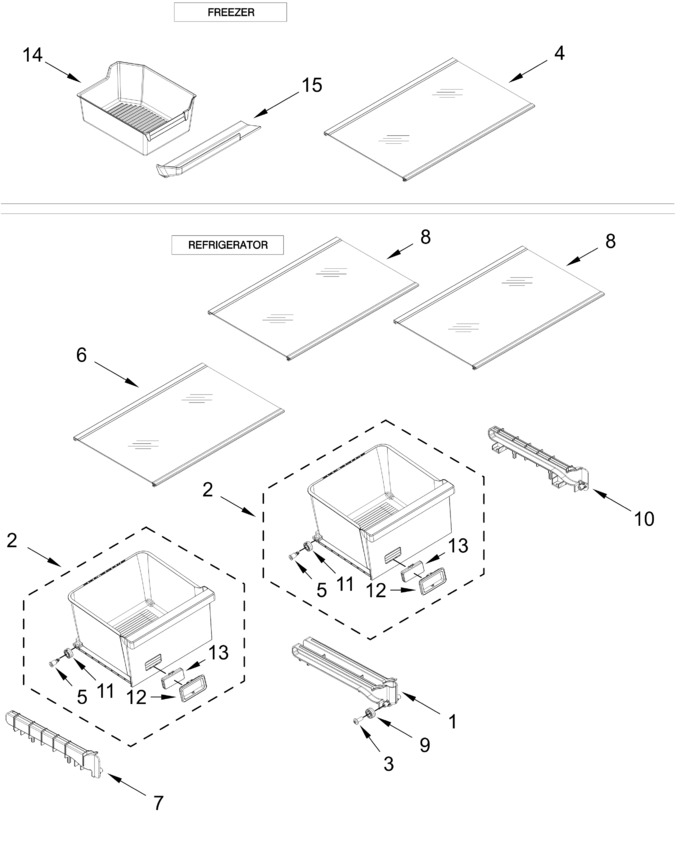

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11773992 | Rail, Center Track (Replaces: W11516190) |
|
Immediately | $ 28.90 | ||||
| 2 | W11807627 | Pan Assembly, Crisper (half) (Replaces: W11768951) |
|
$ 69.39 | |||||
| 3 | WP3400065 | Screw (stainless) (Replaces: 3400065) |
|
Immediately | $ 7.36 | ||||
| 4 | W11684989 | Shelf Assembly (freezer) (Replaces: W11553151) |
|
- | |||||
| 5 | W11175807 | Axle, Roller (Replaces: W10628712) |
|
Immediately | $ 16.11 | ||||
| 6 | W11684990 | Shelf Assembly (crisper) (Replaces: W11553148) |
|
$ 206.96 | |||||
| 7 | W11818646 | Rail, Track (crisper, Left Hand) (Replaces: W11812187) |
|
Immediately | $ 27.93 | ||||
| 8 | W11684991 | Shelf Assembly (full) (Replaces: W11553149) |
|
Immediately | $ 200.30 | ||||
| 9 | W11164152 | Roller, Pan (Replaces: W10628713) |
|
Immediately | $ 14.17 | ||||
| 10 | W11818645 | Rail, Track (crisper, Right Hand) (Replaces: W11812185) |
|
- | |||||
| 11 | W11807628 | Roller, Pan (crisper) (Replaces: W11750755) |
|
- | |||||
| 12 | W10435530 | Frame, Humidity Control |
|
$ 14.66 | |||||
| 13 | W10431229 | Control, Humidity |
|
$ 14.50 | |||||
| 14 | W11625904 | Pan, Ice Cube (Replaces: W10898951) |
|
$ 61.05 | |||||
| 15 | W10572349 | Extension, Ice Cube Pan |
|
- |
